high speed comparator, SGM8743 Replace TP1961.
SGM8743
SGM8743.pdf
SGM8743.pdfFEATURES
? Fast, 6ns Propagation Delay (100mV Overdrive)
? Low Power Consumption:1.3mA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 195mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Fast, 7ns Propagation Delay
? Ideal for +3V and +5V Single-Supply Applications
? Offset Voltage: ± 6.0 mV Maximum
? Rail to Rail Input and Output
? 7.5mV Internal Hysteresis for Clean Switching
? Push-Pull, CMOS/TTL Compatible Output
? Input Common-Mode Range Extends 300 mV
? No Phase Reversal for Overdriven Inputs
? Shut-down Function (TP1961N Only)
? Supply Voltage: 2.5V to 5.5V
? Green, Space-Saving SOT23-5 Package Available

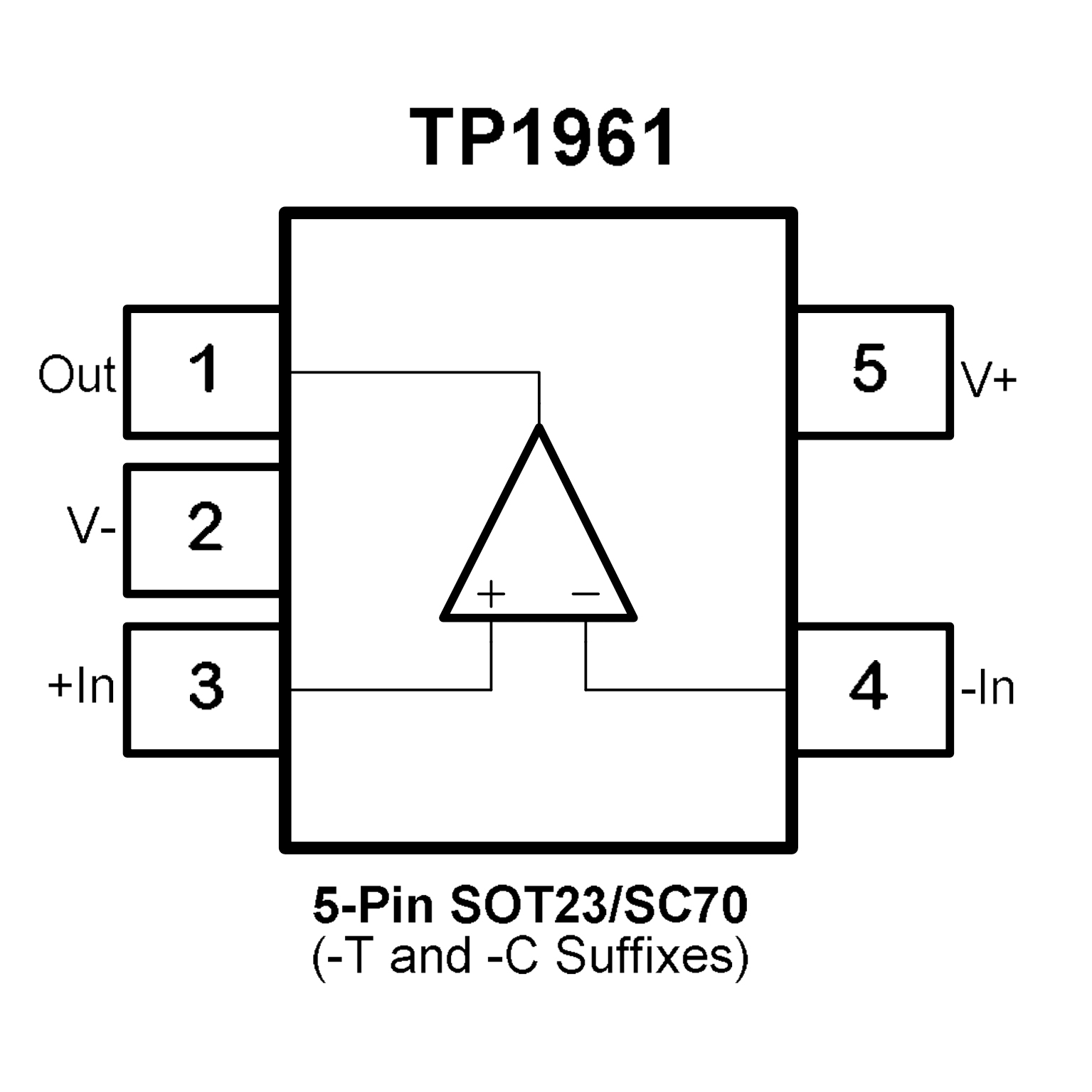

PIN CONFIGUTION
