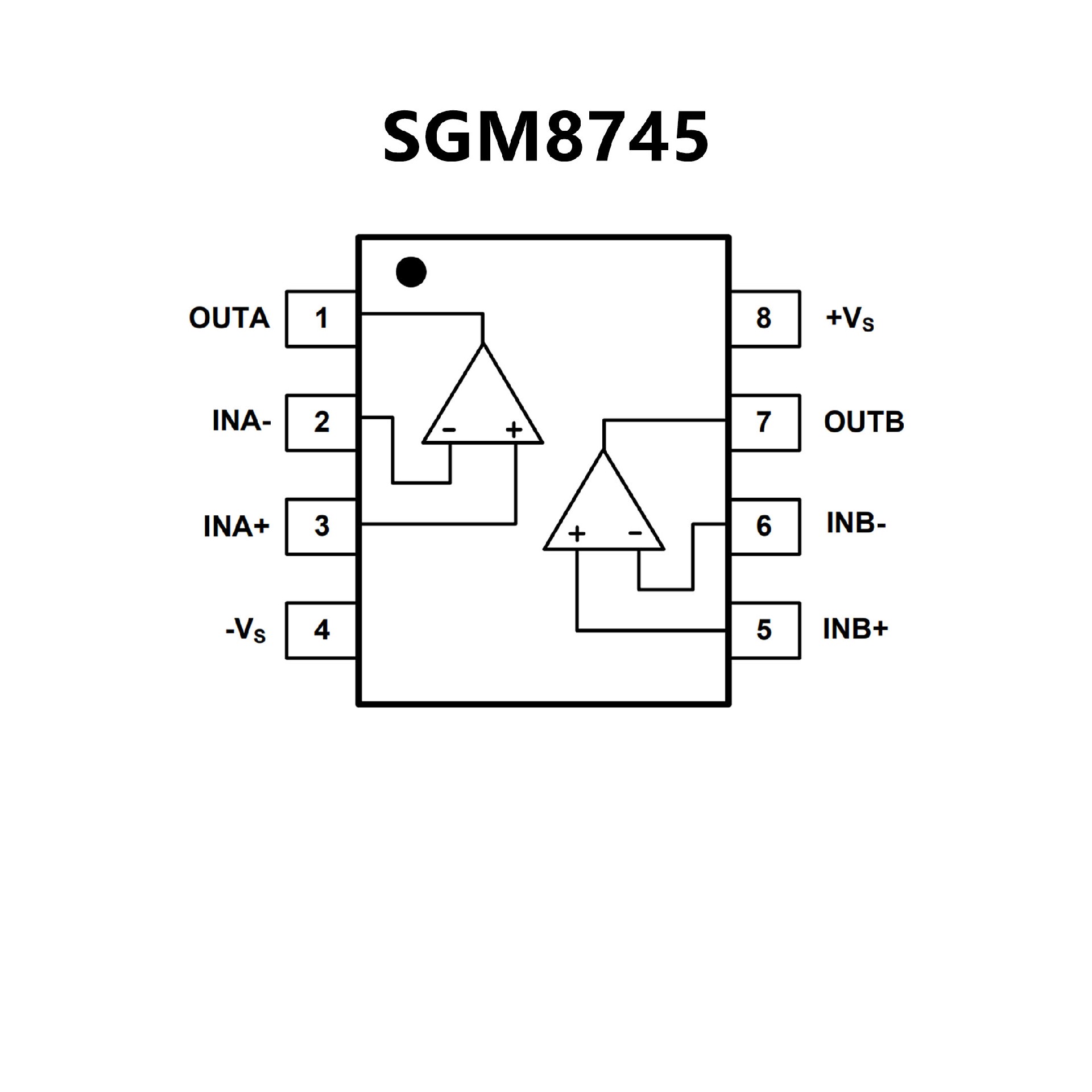

SGM8745.pdf? Fast, 6ns Propagation Delay (100mV Overdrive)
? Low Power Consumption:2.6mA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 195mV from
Rails with4mA Output Current
? CMOS/TTL-Compatible Outputs
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Low-Cost Solution Available in Space-Saving SC70
Packages (MAX9030/MAX9031)
? +2.5 to +5.5V Single-Supply Voltage Range
? Comparator Output Swings Rail-to-Rail
? Internal 4mV Comparator Hysteresis
? 188ns Propagation Delay
? Low 35μA Supply Current
? No Phase Reversal for Overdriven Inputs
? Space-Saving Packages
5-Pin SC70 (MAX9031)
6-Pin SC70 (MAX9030)

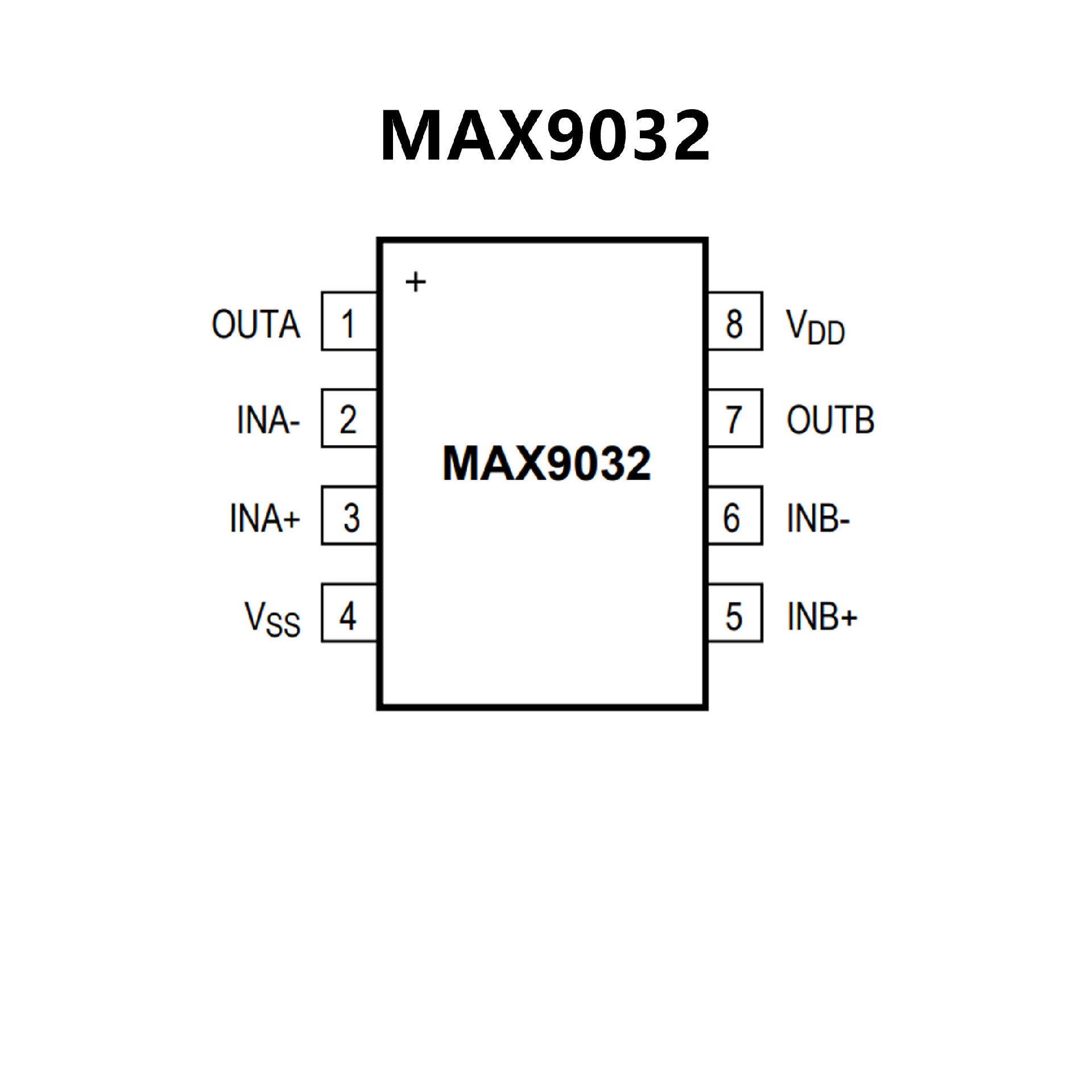

8-Pin SOT23 (MAX9032)
14-Pin TSSOP (MAX9034)
