155ns, Low-Power, 3V/5V, Rail-to-RailInput Single-Supply Comparator,SGM8748YMS8G Replace TLV7256IDDUR.
SGM8748YMS8G
SGM8748YMS8G.pdf
SGM8748YMS8G.pdfFEATURES
? Fast, 155ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
45μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 190mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Outputs
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

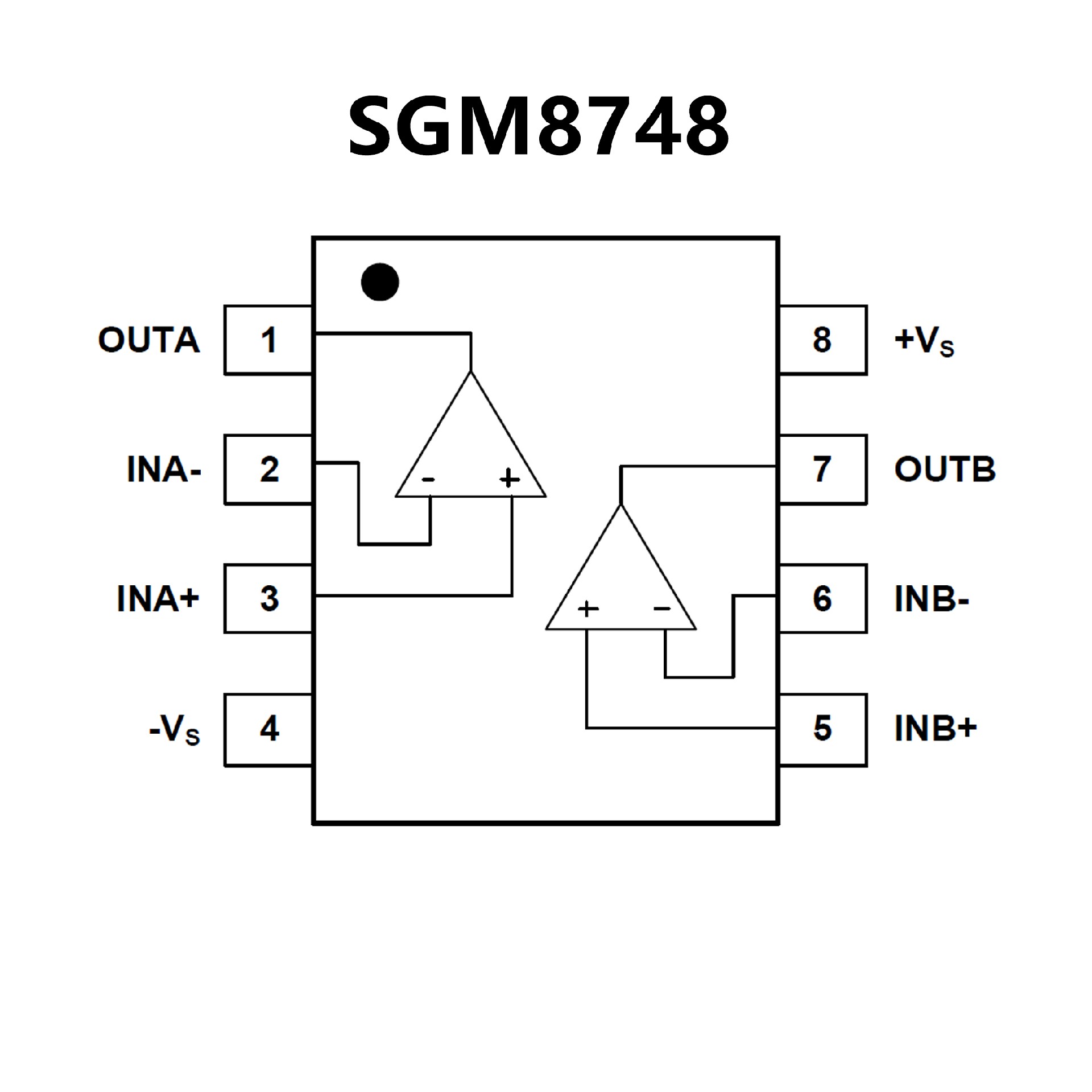

PIN CONFIGUTION
優勢替代
FEATURES
? Low Supply Current?20 mA Typ
? Single Power Supply
? Rail-to-Rail Common-Mode Input Voltage
Range
? Push-Pull Output Circuit
? Low Input-Bias Current

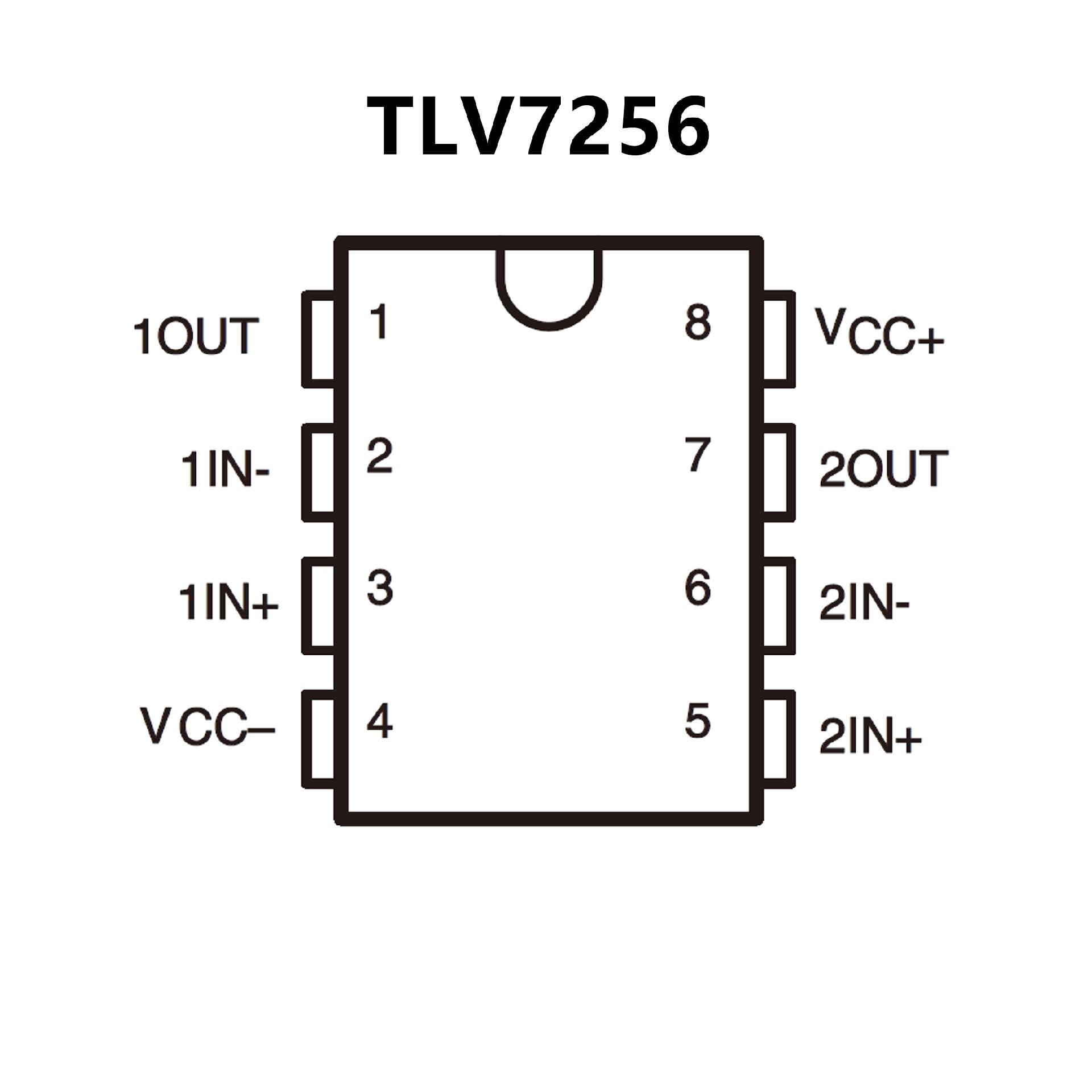

PIN CONFIGUTION
