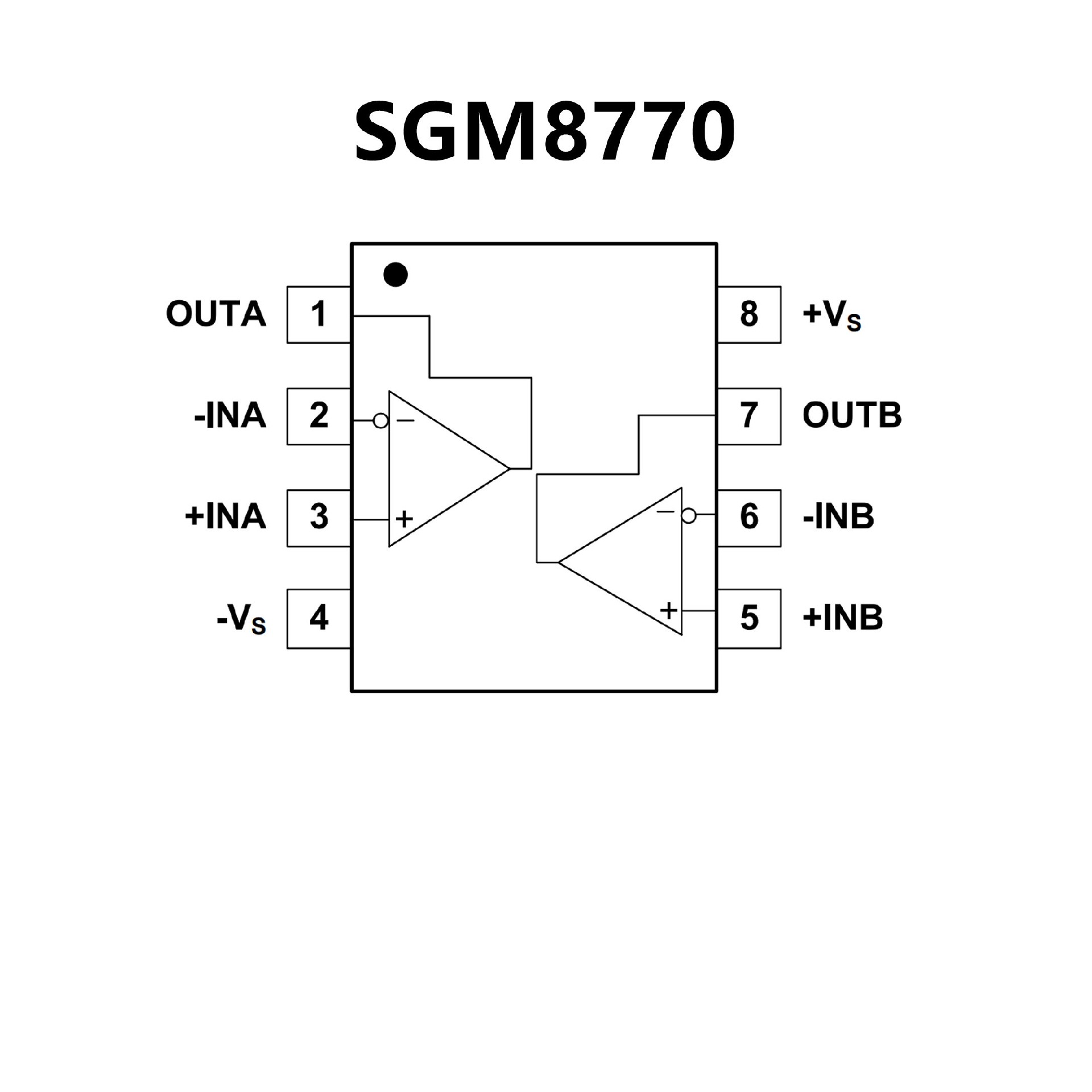

SGM8770.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages

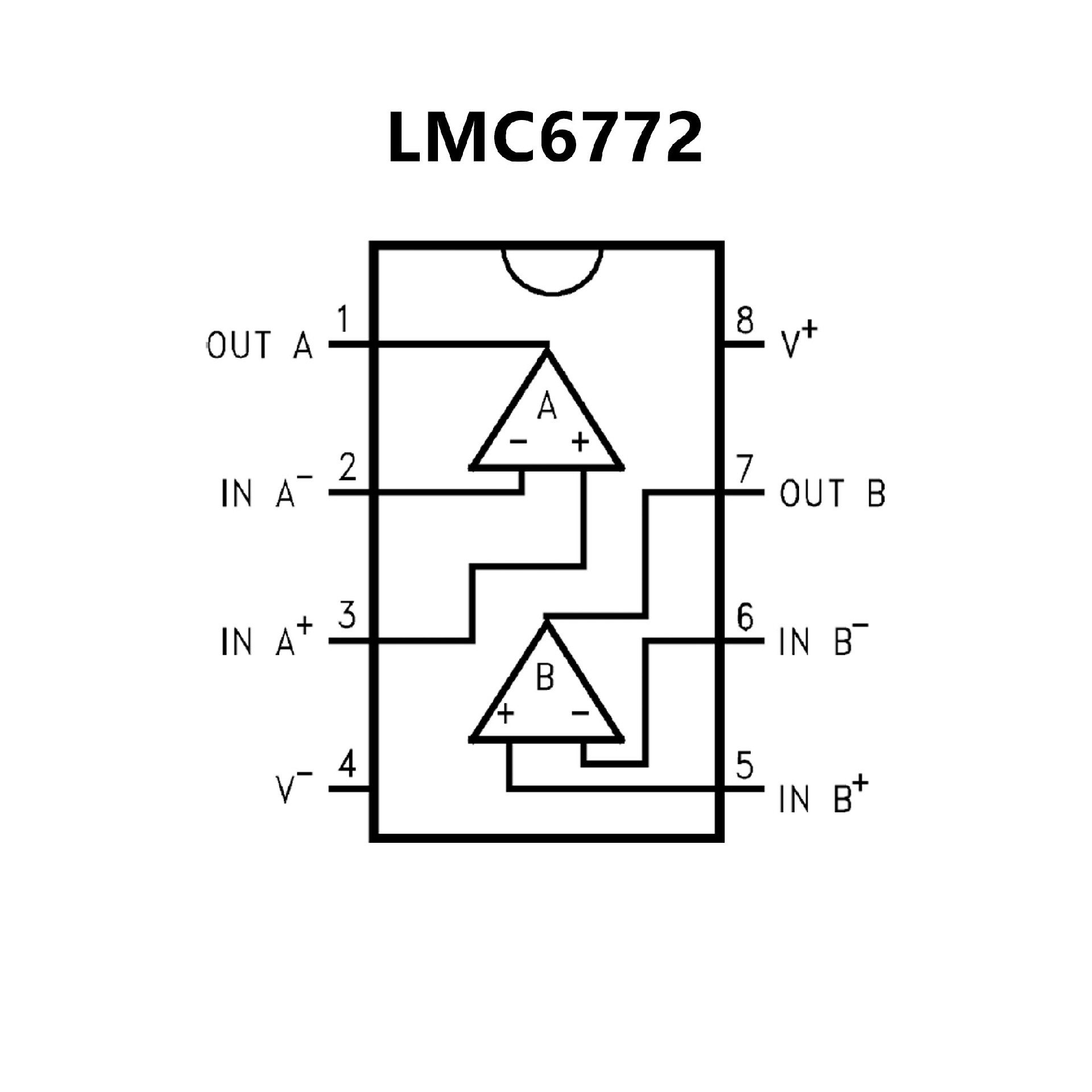

? (Typical Unless Otherwise Noted)
? Low Power Consumption (Max): IS = 10 μA/comp
? Wide Range of Supply Voltages: 2.7V to 15V
? Rail-to-Rail Input Common Mode Voltage Range
? Open Drain Output
? Short Circuit Protection: 40 mA
? Propagation Delay (@VS = 5V, 100 mV Overdrive): 5 μs
? LMC6772Q is AEC-Q Qualified
? LMC6772Q has ?40°C to 125°C Temperature Range
