High Voltage, High Precision, Dual Differential Comparator,SGM8770XS8GTR-Replace-BA2903F-E2.
SGM8770XS8GTR
SGM8770XS8GTR.pdf
SGM8770XS8GTR.pdfFEATURES
? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages

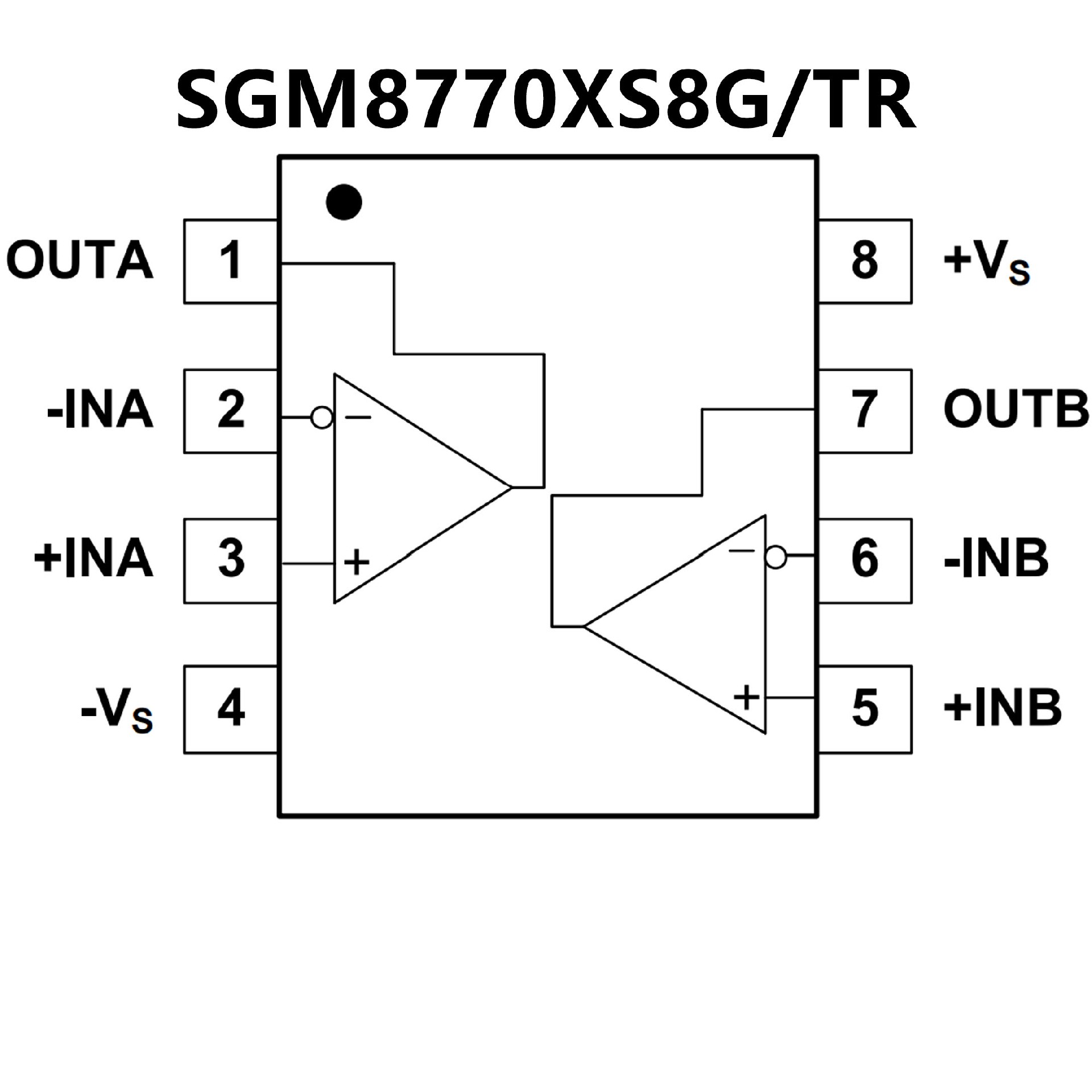

PIN CONFIGUTION
優勢替代
FEATURES
? Operable with a Single Power Supply
? Wide Operating Supply Voltage
? Standard Pin Assignments
? Input and Output are Ground Sense Operated
? Open Collector
? Wide Temperature Range

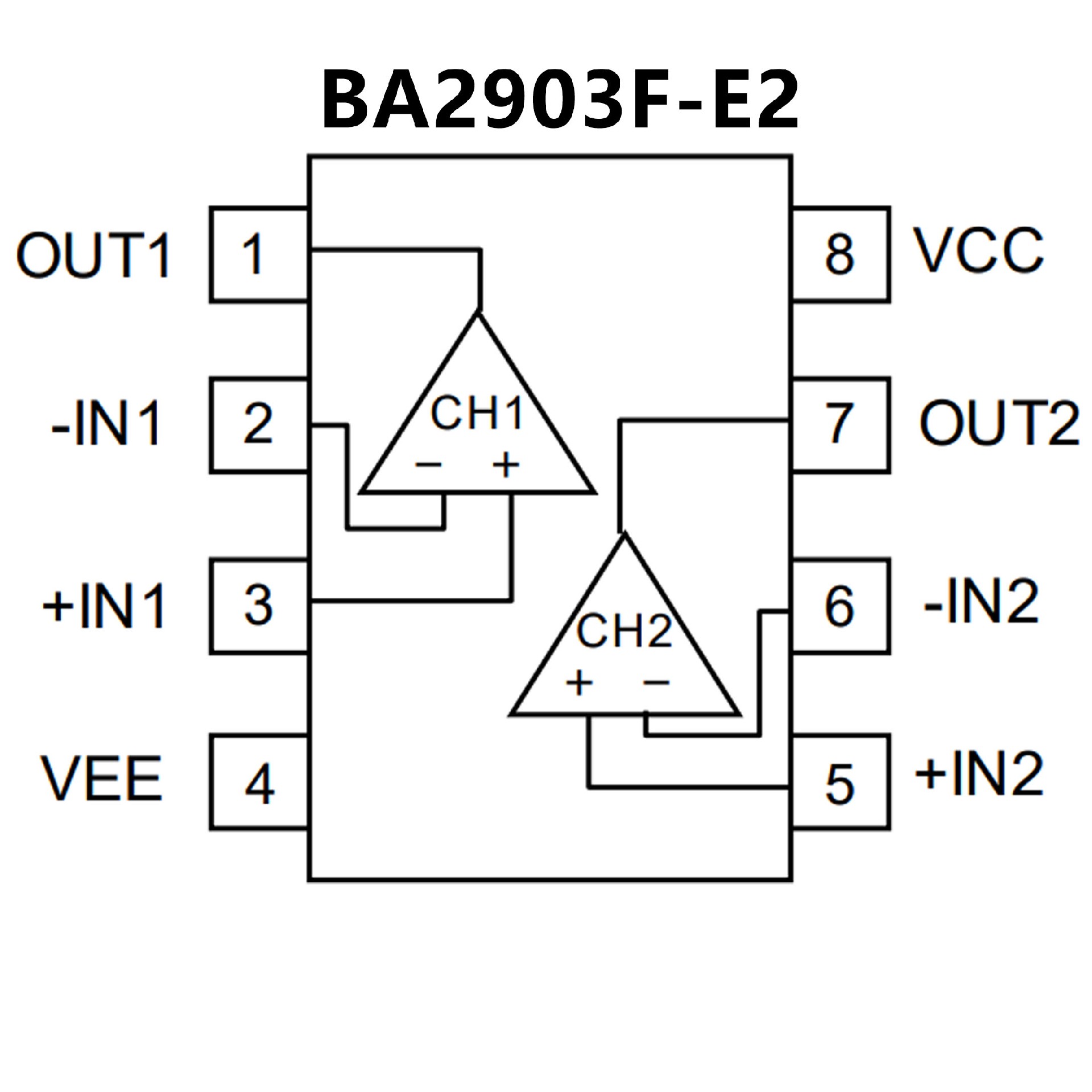

PIN CONFIGUTION
