High Voltage, High Precision,Single Comparator with Voltage Reference,SGM8771XS8G Replace TS391ILT.
SGM8771XS8G
SGM8771XS8G.pdf
SGM8771XS8G.pdfFEATURES
? Single Supply
? Wide Supply Voltage Range: 2.8V to 36V
? Internal Voltage Reference: 1.225V
? Open-Drain Output
? Low Supply Current Independent
of Supply Voltage: 180μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages

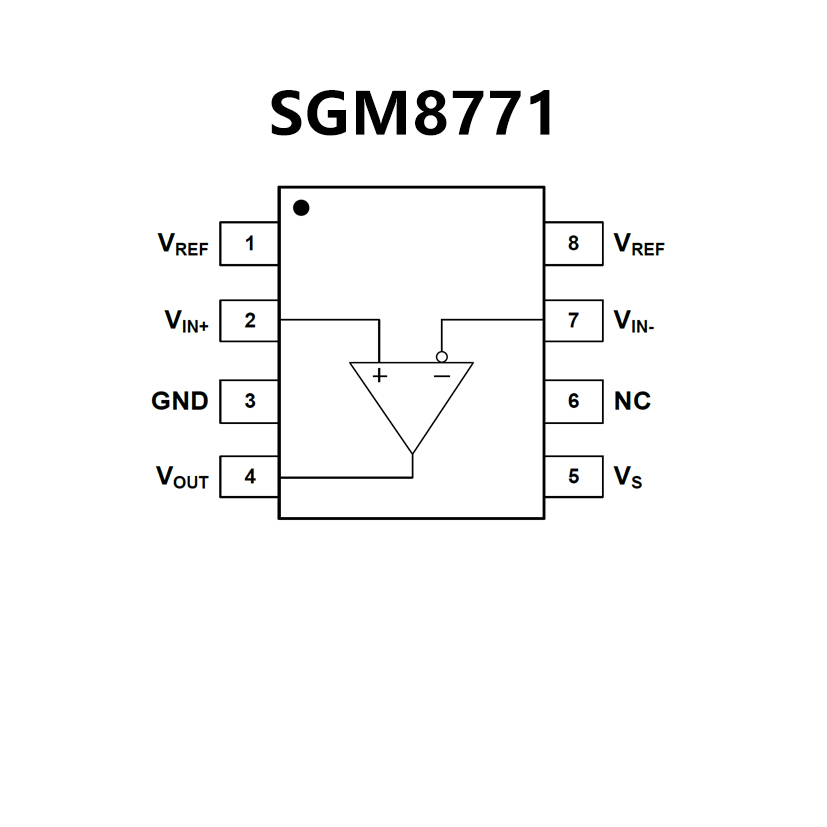

PIN CONFIGUTION
