Capless 3Vrms Line Driver with Adjustable Gain, SGM8903 Replace DRV603.
SGM8903
SGM8903.pdf
SGM8903.pdfFEATURES
? Capless Structure
Eliminates Pop/Clicks
Eliminates Output DC-Blocking CapacitorsProvides
Flat Frequency Response from DC to 20kHz
? Low Noise and THD
Typical SNR = 114dB
Typical VN = 5.5μVrms
Typical THD+N = 0.001% (f = 1kHz)
? 3Vrms Output Voltage into 2.5k?
Load with 5VSupply Voltage
? Differential Input
? -40℃ to +85℃ Operating Temperature Range
? Available in the Green TSSOP-14 Package

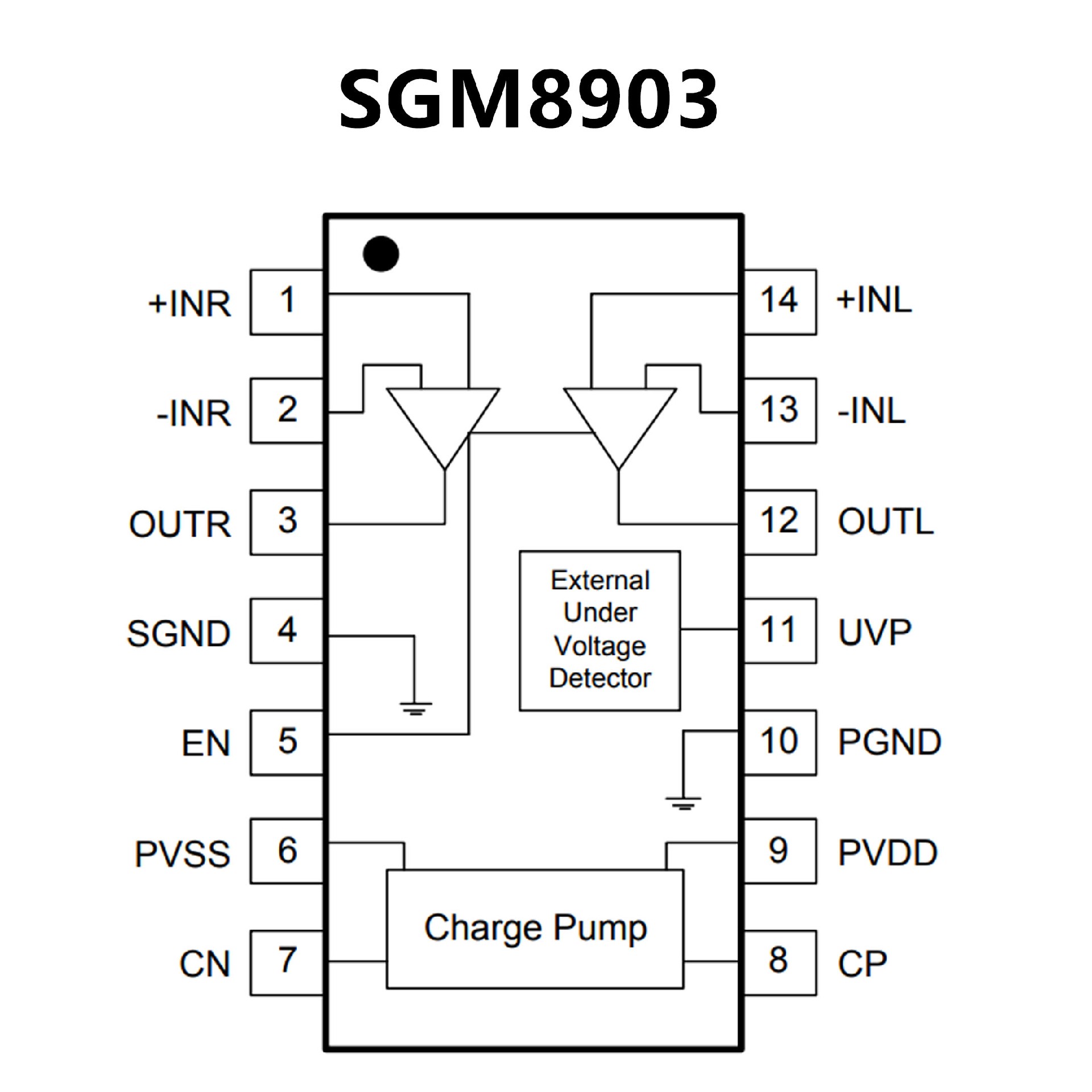

PIN CONFIGUTION
優勢替代
FEATURES
? DirectPath?
? Eliminates Pop/Clicks
? Eliminates Output DC-Blocking Capacitors
? Provides Flat Frequency Response 20 Hz–20 kHz
? SNR > 109 dB
? Typical Vn < 7 μVms
? THD+N < 0.002%
? 2 Vrms With 3.3-V Supply Voltage
? 3 Vrms With 5-V Supply Voltage

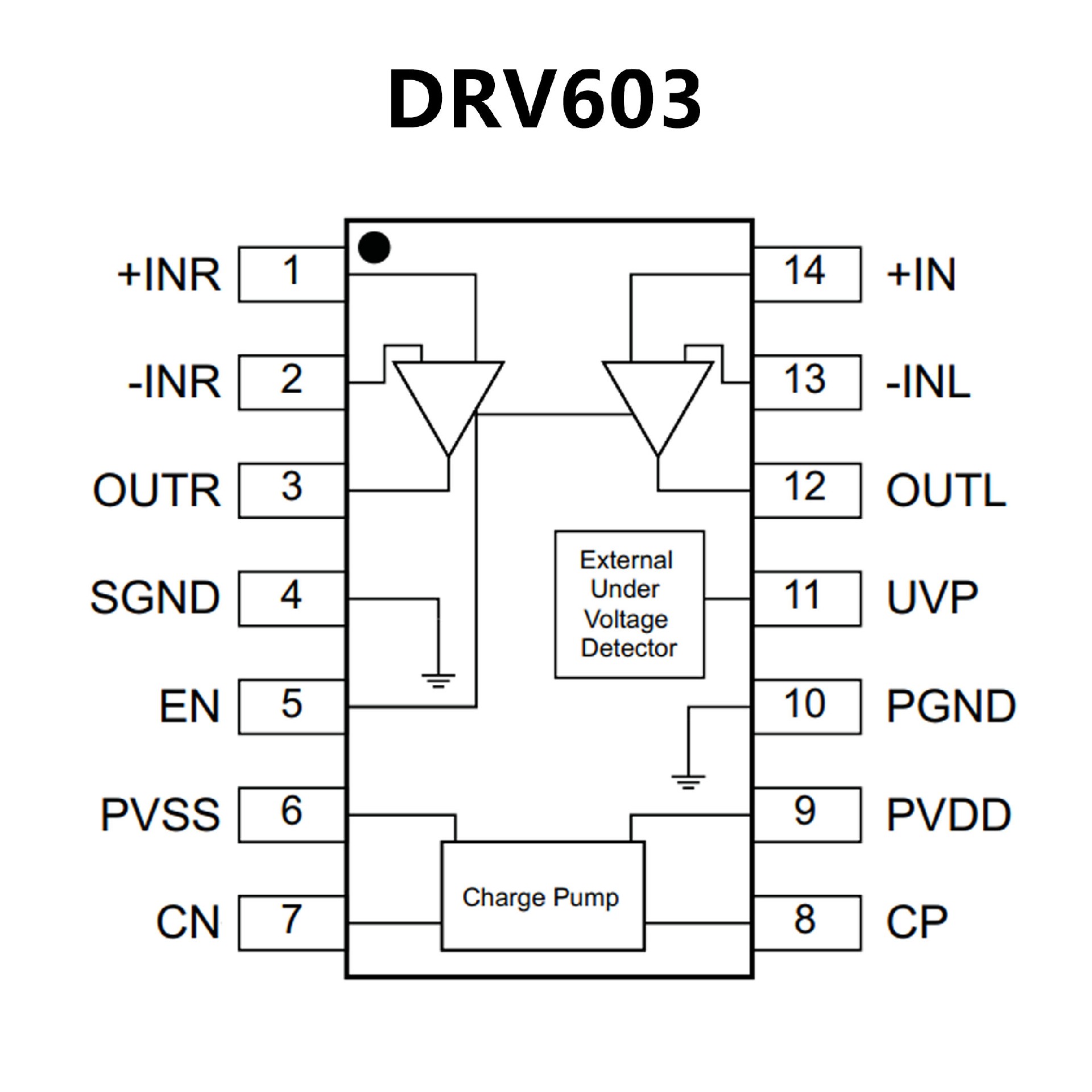

PIN CONFIGUTION
