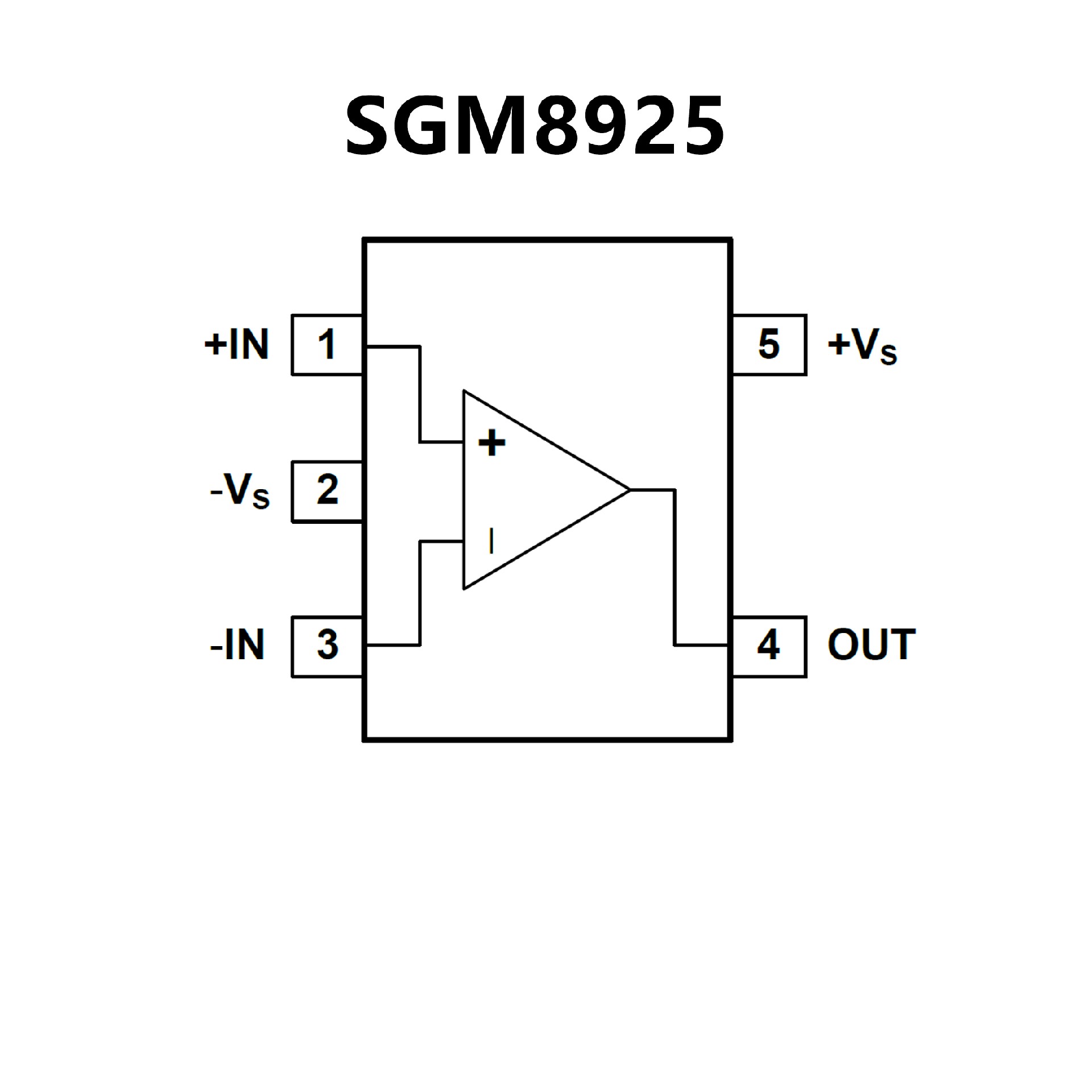

SGM8925BYN5G.pdf? Low Offset Voltage: 0.6mV (MAX)
? Rail-to-Rail Output
? Unity Gain Stable
? Gain-Bandwidth Product: 110kHz
? Supply Voltage Range: 1.6V to 5.5V
? Low Supply Current: 6.4μA (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8925 Available in Green SOT-23-5,
SC70-5, SOIC-8 and MSOP-8 Packages
SGM8927 Available in Green SOT-23-6,
SOIC-8 and MSOP-8 Packages

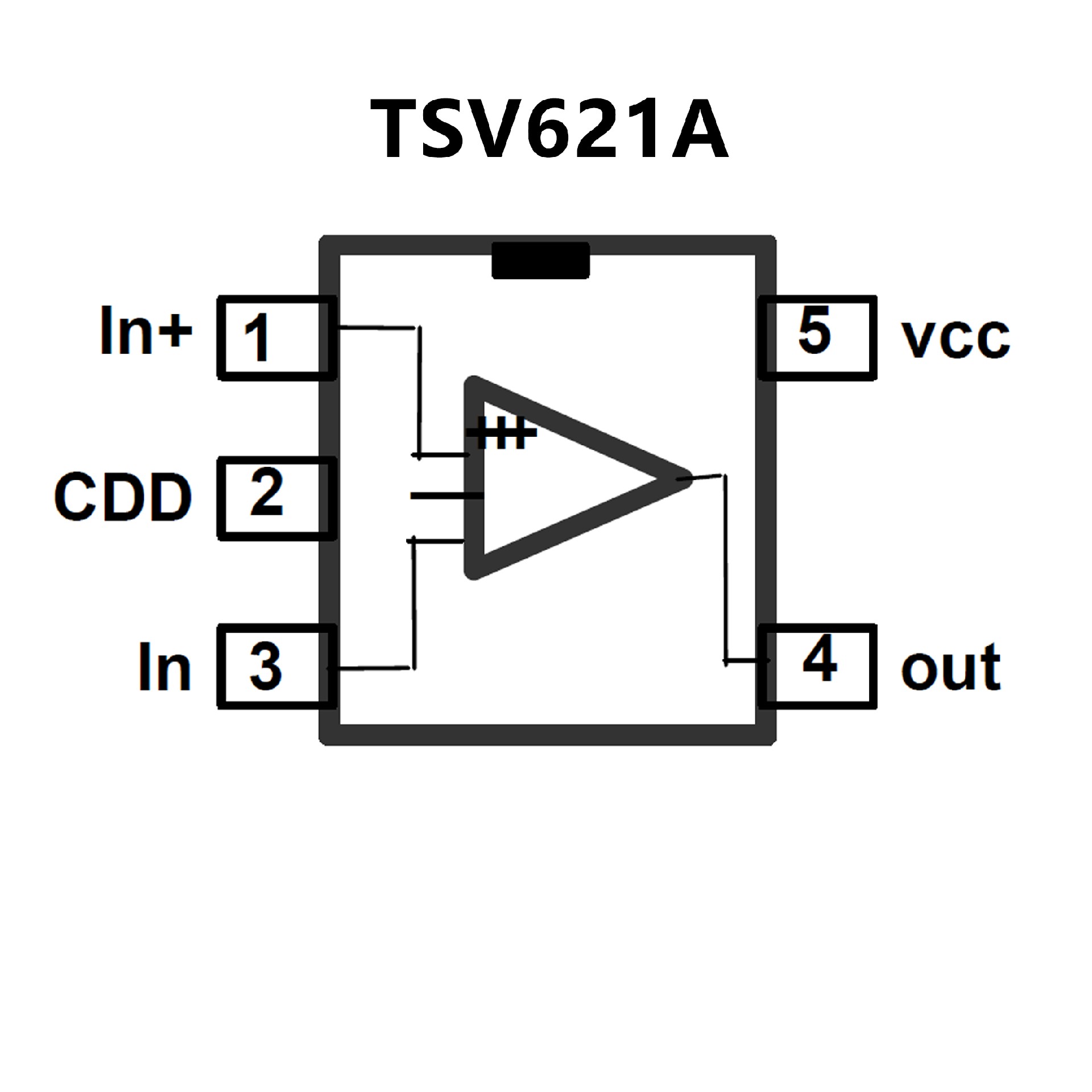

? Low supply voltage: 1.5 V–5.5 V
? Rail-to-rail input and output
? Low input offset voltage: 800 μV max
(A version)
? Low power consumption: 29 μA typ
? Low power shutdown mode: 5 nA typ (TSV620)
? Gain bandwidth product: 420 kHz typ
? Unity gain stability
? Micropackages: SC70-5/6, SOT23-5/6
? Low input bias current: 1 pA typ
? Extended temperature range: -40 to 125 °C
? 4 kV HBM
