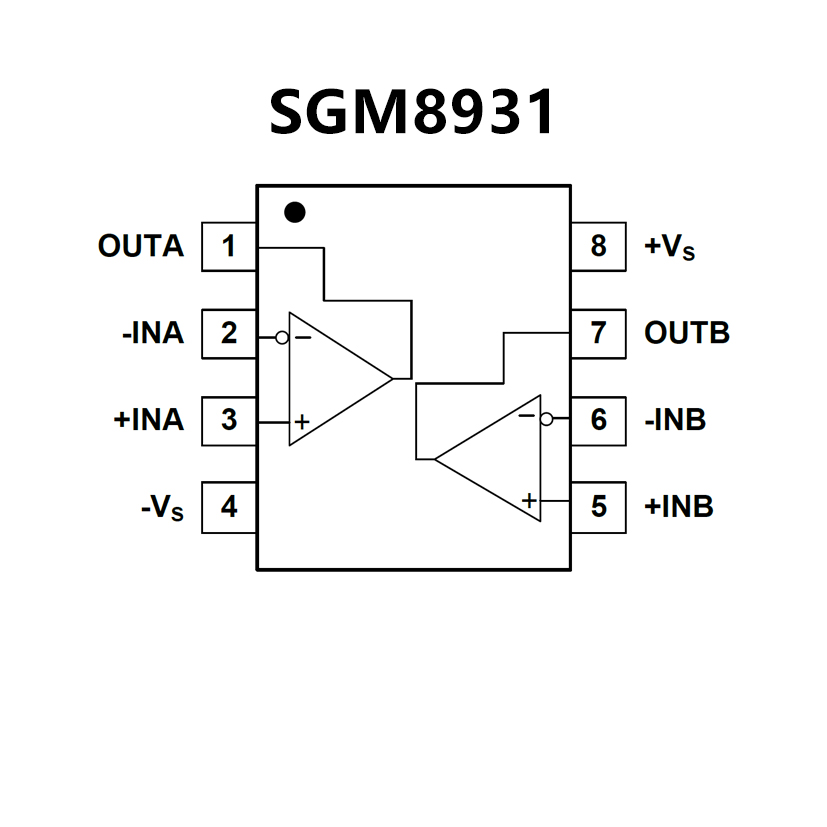

SGM8931BYN5G.pdf? Rail-to-Rail Output
? Low Noise: 30nV/ Hz
? Low Distortion
? Supply Voltage Range: 1.8V to 5.5V
? Low Input Offset Voltage: 0.9mV (MAX)
? Gain-Bandwidth Product: 1.5MHz
? Slew Rate: 0.8V/μs
? Low Supply Current:
80μA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8933
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8931 Available in SOT-23-5, SC70-5, SOIC-8
and MSOP-8 Packages
SGM8932 Available in SOIC-8 and MSOP-8 Packages
SGM8933 Available in SOT-23-6, SOIC-8 and
MSOP-8 Packages
SGM8934 Available in SOIC-14 and TSSOP-14
Packages

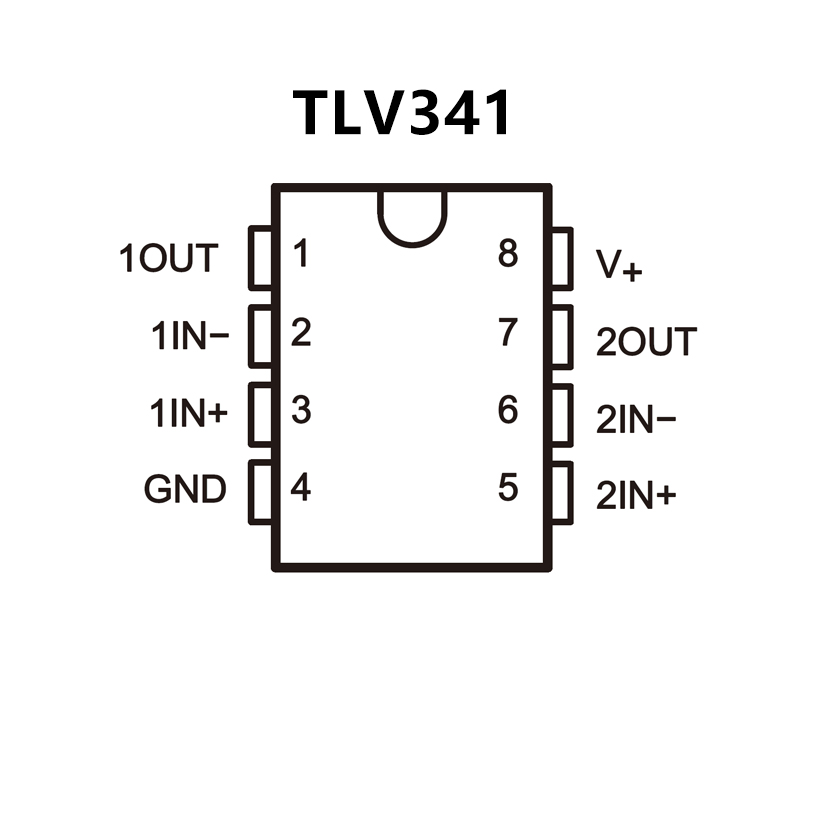

? 1.8-V and 5-V Performance
? Low Offset (A Grade)
1.25 mV Maximum (25°C)
1.7 mV Maximum (–40°C to 125°C)
? Rail-to-Rail Output Swing
? Wide Common-Mode Input Voltage
Range: –0.2 V to (V+ – 0.5 V)
? Input Bias Current: 1 pA (Typical)
? Input Offset Voltage: 0.3 mV (Typical)
? Low Supply Current: 70 μA/Channel
? Low Shutdown Current:
10 pA (Typical) Per Channel
? Gain Bandwidth: 2.3 MHz (Typical)
? Slew Rate: 0.9 V/μs (Typical)
? Turnon Time From Shutdown: 5 μs (Typical)
? Input Referred Voltage Noise (at 10 kHz):
20 nV/√Hz
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (HBM)
750-V Charged-device model (CDM)
