High precision Operational Amplifier ,Replace LMV822
SGM8932
SGM8932.pdf
SGM8932.pdfFEATURES
? Rail-to-Rail Output
? Low Noise: 30nV/ Hz
? Low Distortion
? Supply Voltage Range: 1.8V to 5.5V
? Low Input Offset Voltage: 0.9mV (MAX)
? Gain Bandwidth Product: 1.5MHz
? Slew Rate: 0.8V/μs
? Low Supply Current
? Small Packaging:
SGM8932 Available in MSOP-8 and SOIC-8
PIN CONFIGUTION
優勢替代
FEATURES
? Available in SC-70-5 and SOT-23-5 packages
? Gain Bandwidth Product: 1 MHz (typical)
? Rail-to-Rail Input/Output
? Supply Voltage: 1.8V to 6.0V
? Supply Current: IQ = 100 μA (typical)
? Phase Margin: 90° (typical)
? Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
? Available in Single, Dual and Quad Packages

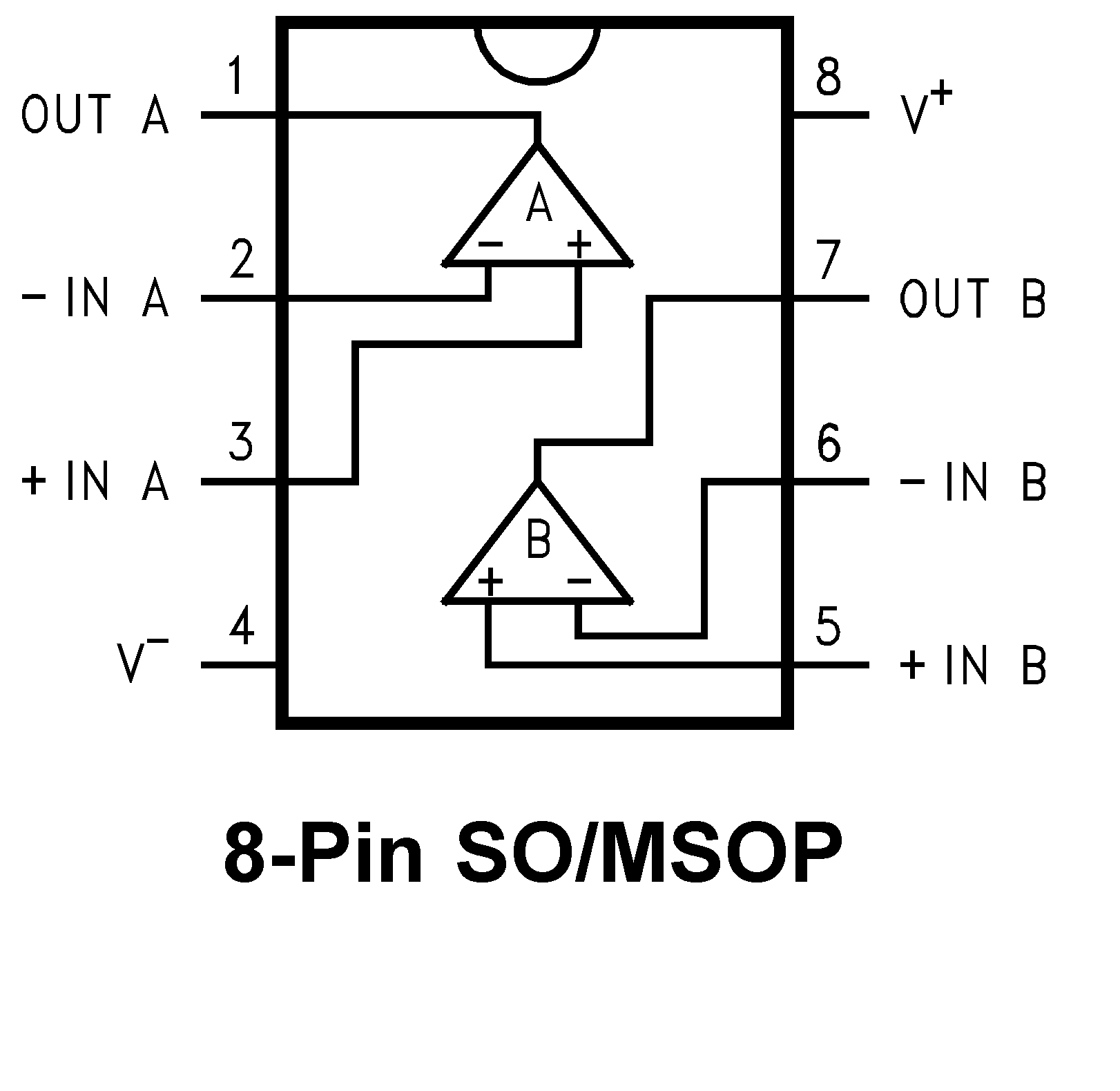

PIN CONFIGUTION
