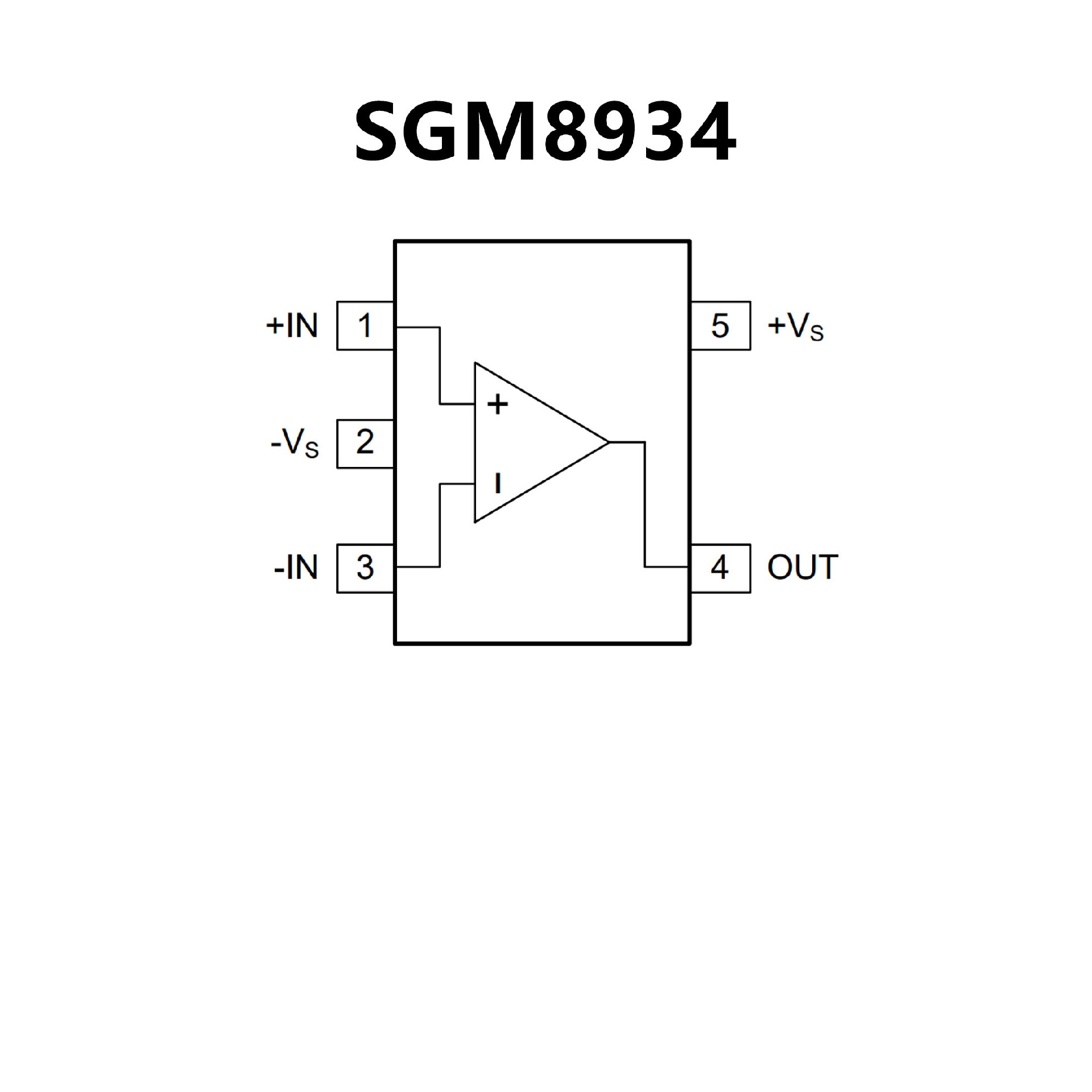

SGM8934.pdf? Rail-to-Rail Output
? Low Noise: 30nV/ Hz
? Low Distortion
? Supply Voltage Range: 1.8V to 5.5V
? Low Input Offset Voltage: 0.9mV (MAX)
? Gain-Bandwidth Product: 1.5MHz
? Slew Rate: 0.8V/μs
? Low Supply Current:80μA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8933
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8931 Available in SOT-23-5, SC70-5, SOIC-8
and MSOP-8 Packages
SGM8932 Available in SOIC-8 and MSOP-8 Packages
SGM8933 Available in SOT-23-6, SOIC-8 and
MSOP-8 Packages
SGM8934 Available in SOIC-14 and TSSOP-14
Packages
? Rail-to-Rail Input/Output
? High Slew Rate: 1V/μS
? Low Input Bias Current: 1pA at 25℃(TYP)
? Gain Bandwidth Product: 1MHz
? Low Offset Voltage Drift: 3μV/℃ (TYP)
? Low Power Consumption: 90μA at 5V(Per Amplifier)
? Low Supply Voltage: 2.5V to 5.5V
? Extended Temperature: -40℃ to +125℃
