SGM8954-2.pdf? Quiescent Current: 9μA/Amplifier (TYP)
? Low Offset Voltage: 8μV (TYP), 35μV (MAX)
? Low 0.1Hz to 10Hz Noise: 1μVP-P
? Gain-Bandwidth Product: 110kHz
? Unity-Gain Stable
? Integrated RFI Filter
? Single or Dual Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8954-1 Available in Green SOT-23-5, SOIC-8
and UTDFN-1.6×1.6-6L Packages
SGM8954-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×2-8L Packages

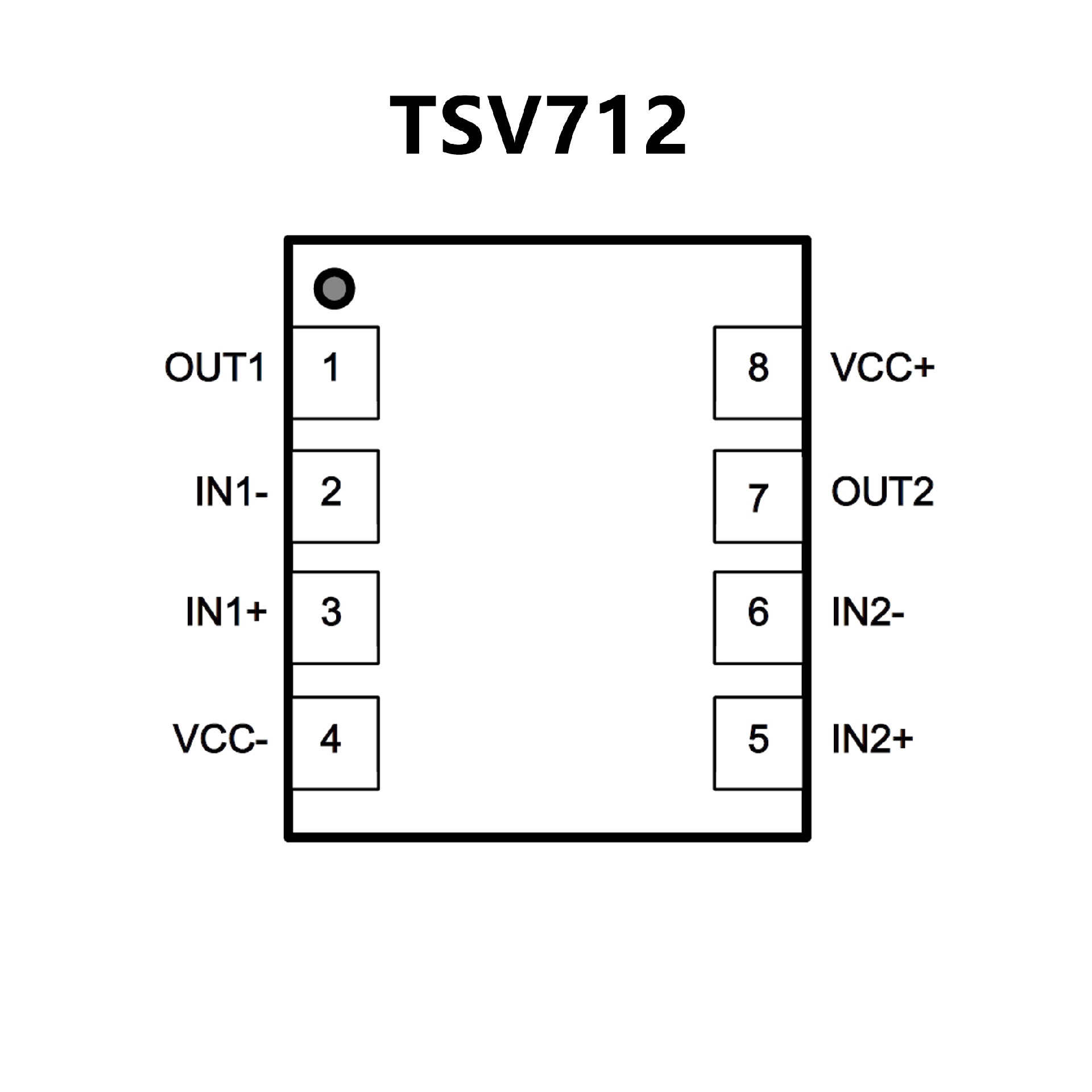

? Low offset voltage: 200 μV max.
? Low power consumption: 10 μA at 5 V
? Low supply voltage: 1.5 V to 5.5 V
? Gain bandwidth product: 150 kHz typ.
? Low input bias current: 1 pA typ.
? Rail-to-rail input and output
? EMI hardened operational amplifiers
? High tolerance to ESD: 4 kV HBM
? Extended temperature range: -40 to +125 °C
