High precision Operational Amplifier，SGM8956 Replace MCP607.
SGM8956
SGM8956.pdf
SGM8956.pdfFEATURES
? Low Offset Voltage: 50μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Integrated RFI Filter
? Single-Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8956 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8L

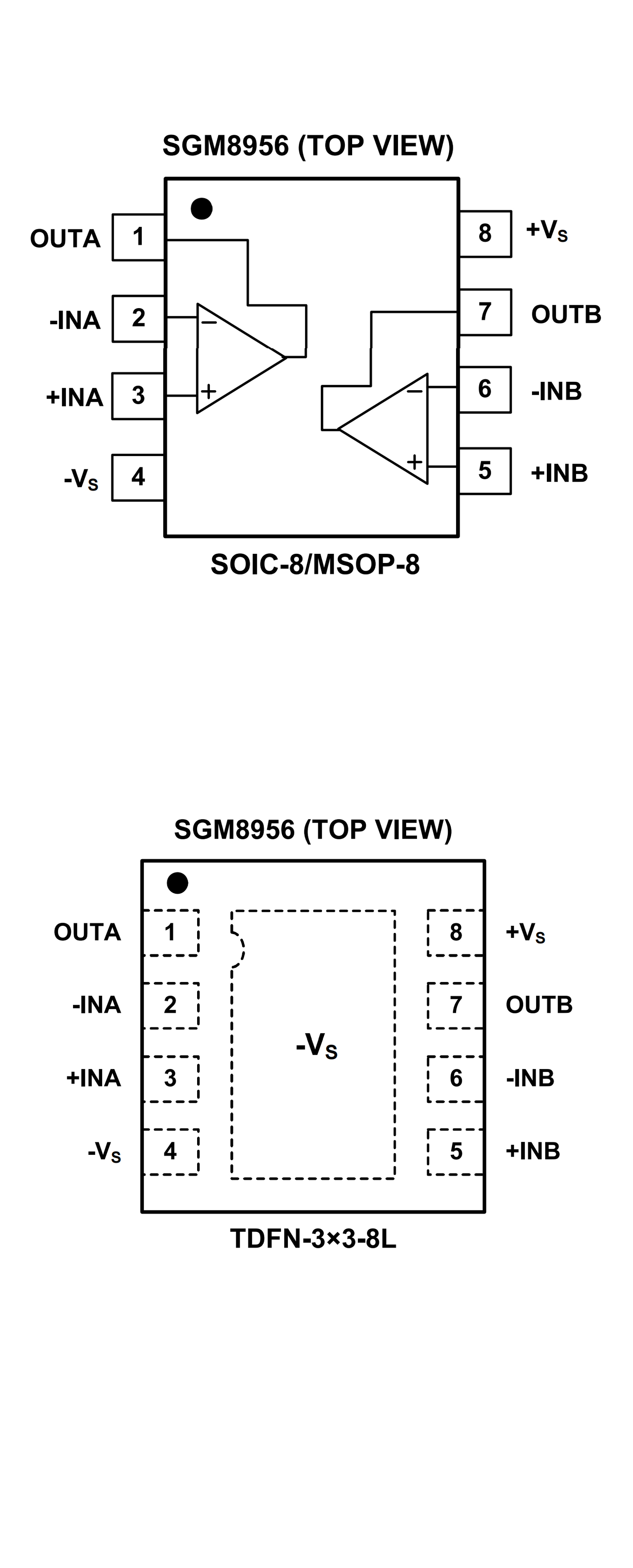

PIN CONFIGUTION
優勢替代
FEATURES
? Low Input Offset Voltage: 250 μV (maximum)
? Rail-to-Rail Output
? Low Input Bias Current: 80 pA (maximum at +85°C)
? Low Quiescent Current: 25 μA (maximum)
? Power Supply Voltage: 2.5V to 6.0V
? Unity-Gain Stable
? Industrial Temperature Range: -40°C to +85°C
? No Phase Reversal
? Available in Single, Dual and Quad Packages

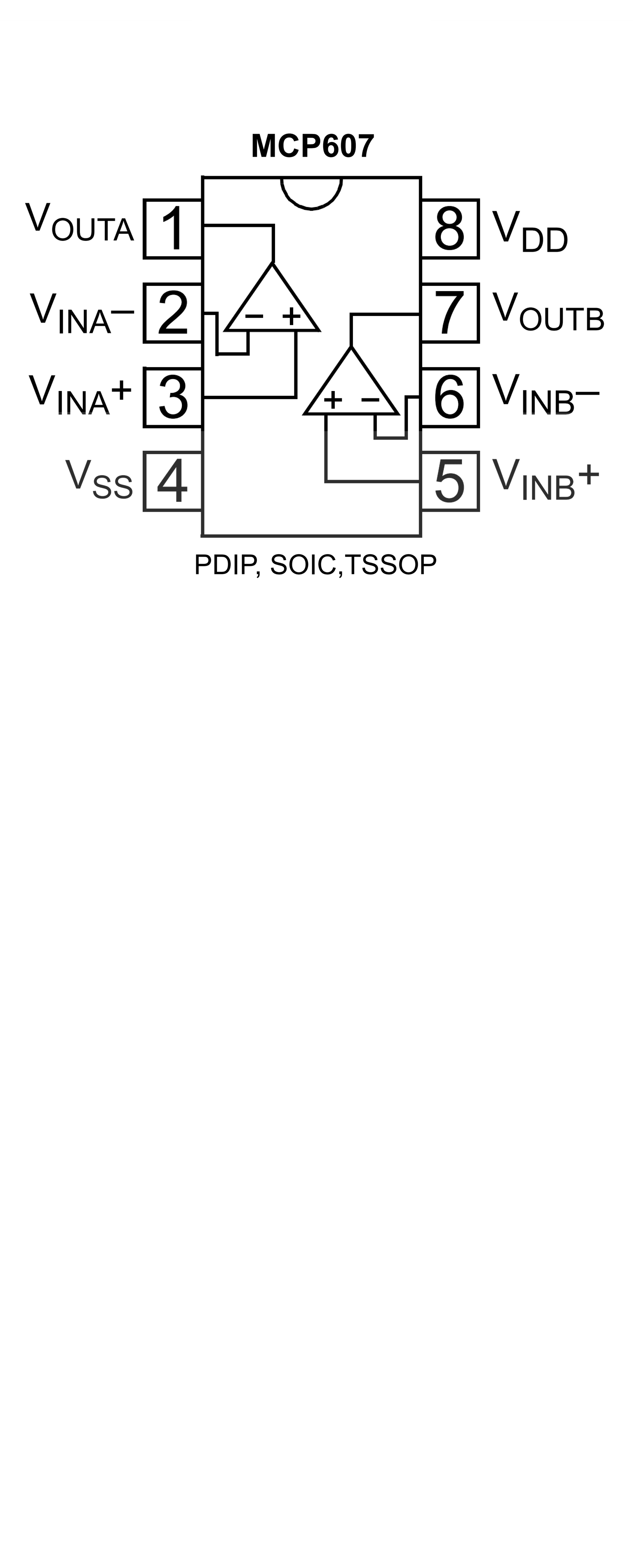

PIN CONFIGUTION
