SGM8959-2XS8G.pdf? Low Offset Voltage: 10μV (MAX)
? Input Voltage Noise: 8nV/ Ηz
? Low 0.1Hz to 10Hz Noise: 0.2μVPP
? Quiescent Current: 380μA/Amplifier (TYP)
? Integrated EMI Filter
? Single or Dual Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? Gain-Bandwidth: 3.9MHz
? Slew Rate : 1.0V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8959-1 Available in Green SOT-23-5, SC70-5
and SOIC-8 Packages

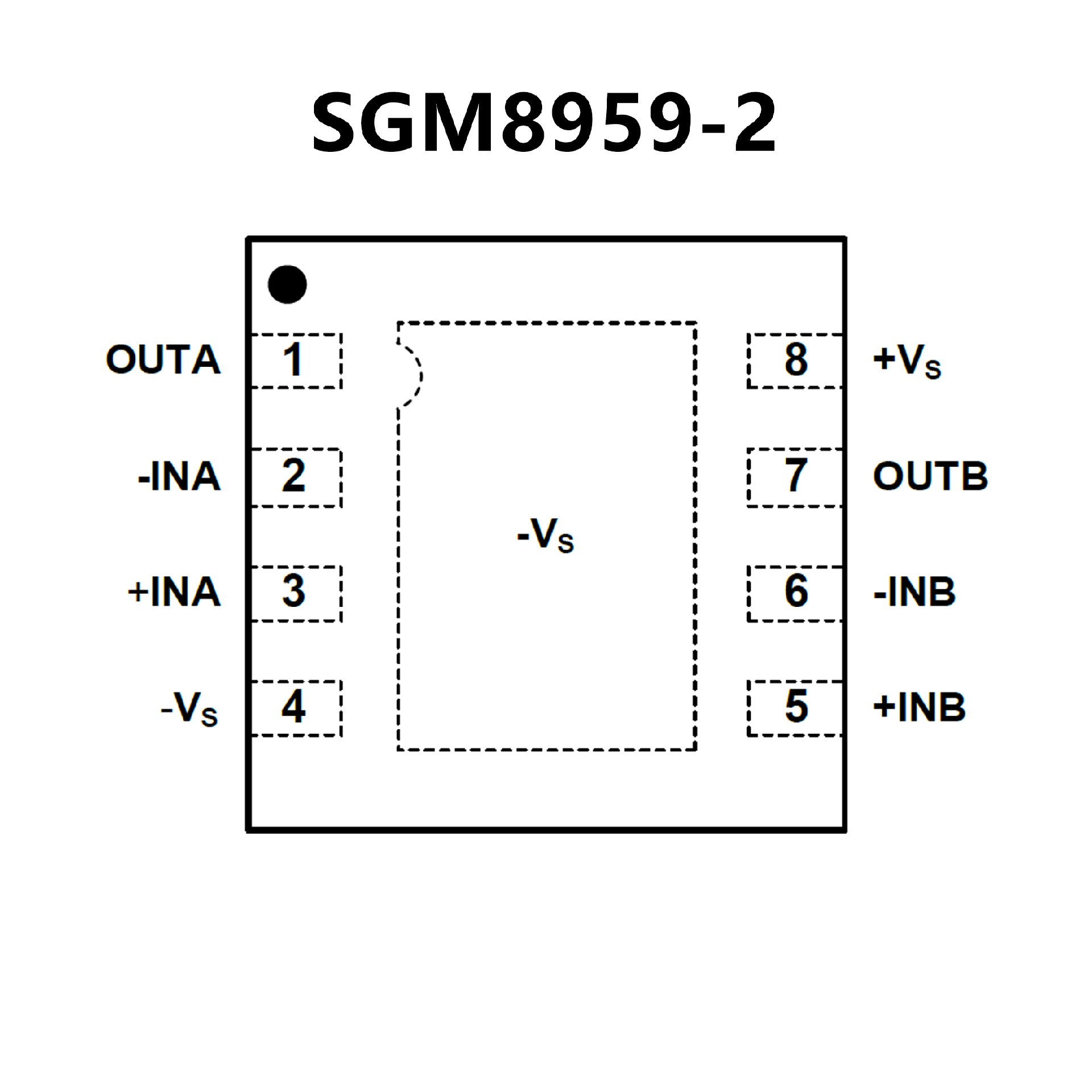

SGM8959-2 Available in Green SOIC-8 and
TDFN-3×3-8L Packages

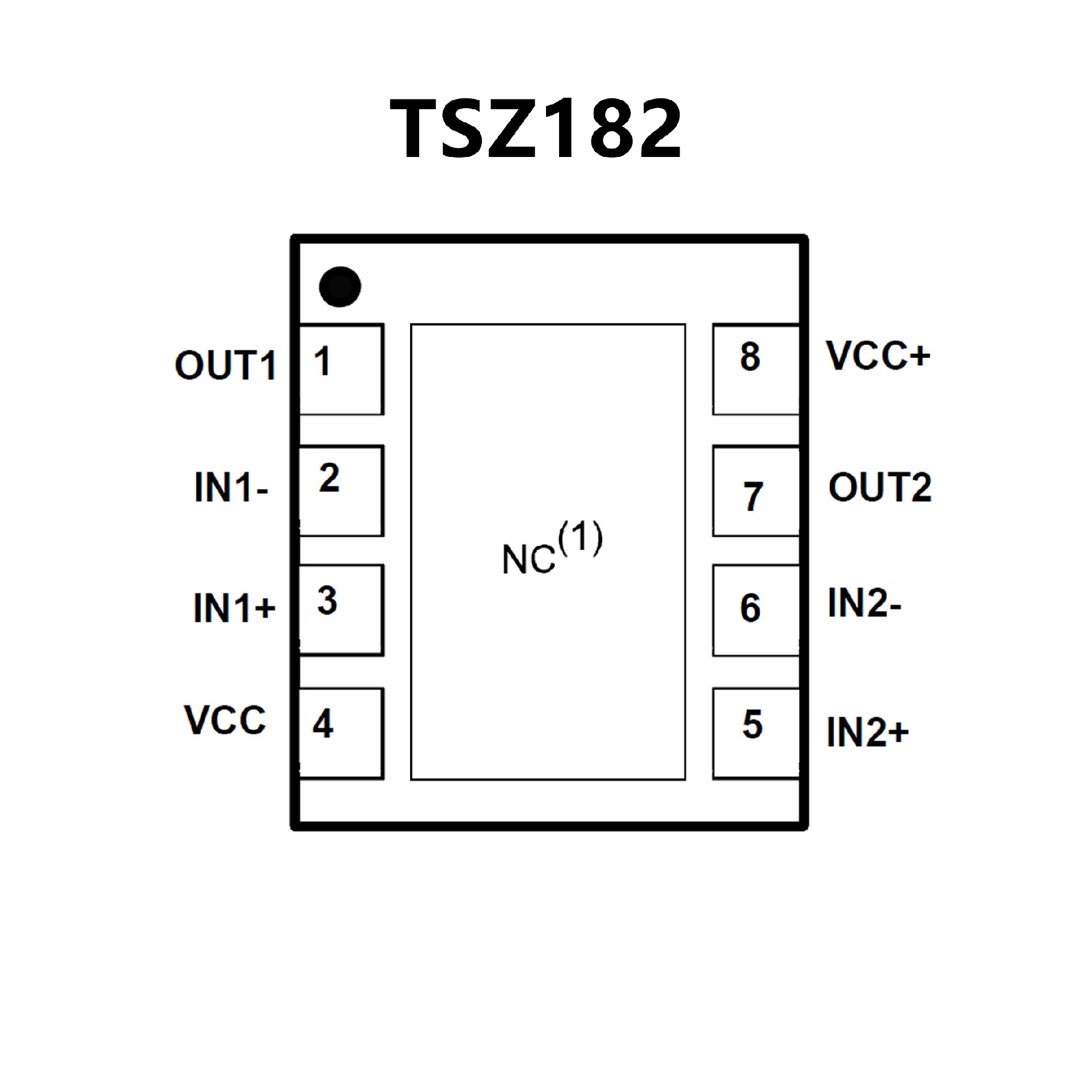

? Very high accuracy and stability:
offset voltage 25 μV max. at 25 °C, 35 μV over
full temperature range (-40 °C to 125 °C)
? Rail-to-rail input and output
? Low supply voltage: 2.2 - 5.5 V
? Low power consumption: 1 mA max. at 5 V
? Gain bandwidth product: 3 MHz
? Automotive qualification
? Extended temperature range: -40 to 125 °C
? Micropackages: DFN8 2x2, SO8 and MiniSO8
? Benefits:
Higher accuracy without calibration
Accuracy virtually unaffected by
temperature change
