50MHz, Low Distortion, RRIO, Single Supply Operational Amplifiers, SGM8965 2 Replace AD8652.
SGM8965-2
SGM8965-2.pdf
SGM8965-2.pdfFEATURES
? Gain Bandwidth: 50MHz
? Excellent THD+N: 0.00015%
? High CMRR: 100dB (TYP)
? Rail-to-Rail Input and Output: In
put 100mV Beyond Supply Rail
Low Noise: 4.5nV/ Slew Rate: 30V/μs
? High Precision:
Low Offset: 250μV (MAX)
Low Input Bias Current: 0.5pA (TYP)
? Stable When Gain ≥ 4
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
Small Packaging:
? SGM8965-1 Available in Green SOT-23-5 and

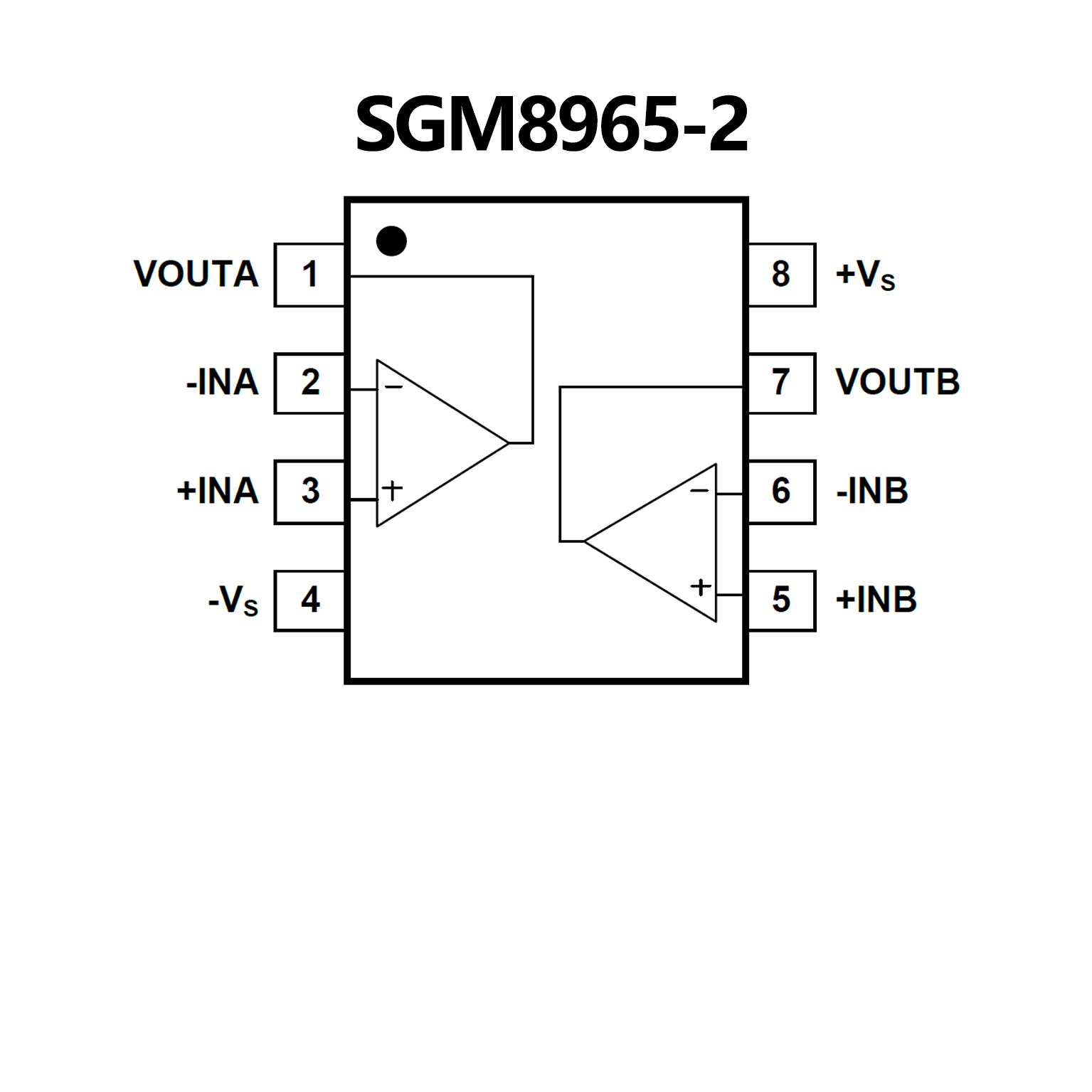

PIN CONFIGUTION
優勢替代
FEATURES
? Bandwidth: 50 MHz at 5 V
? Low noise: 4.5 nV/√Hz
? Offset voltage: 100 μV typical, specified over
? entire common-mode range
? Slew rate: 41 V/μs
? Rail-to-rail input and output swing
? Input bias current: 1 pA
? Single-supply operation: 2.7 V to 5.5 V
? Space-saving MSOP and SOIC_N packaging

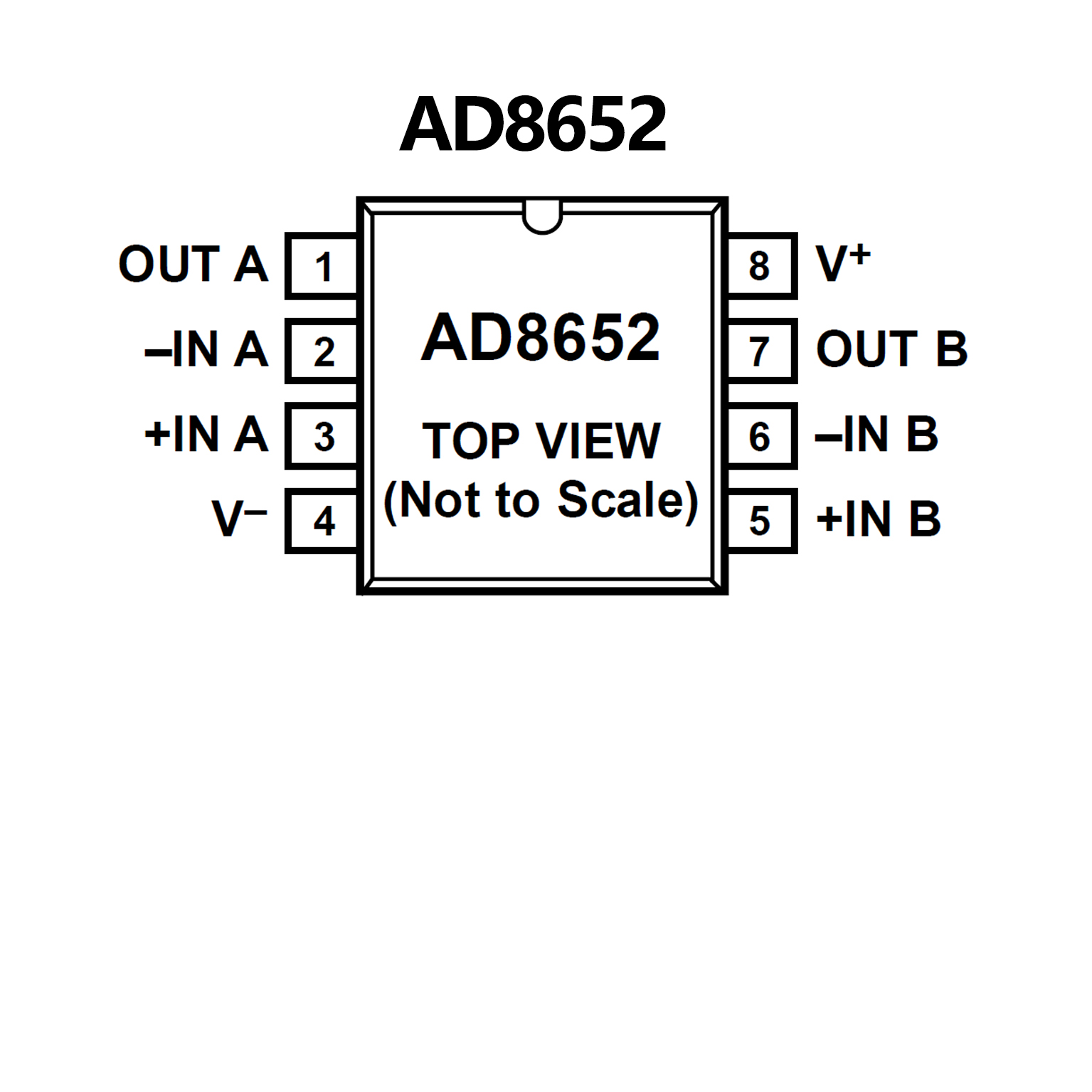

PIN CONFIGUTION
