50MHz, Low Distortion, RRIO, Single Supply Operational Amplifiers,SGM8965A-1 Replace AD8607.
SGM8965A-1
SGM8965A-1.pdf
SGM8965A-1.pdfFEATURES
? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/ Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

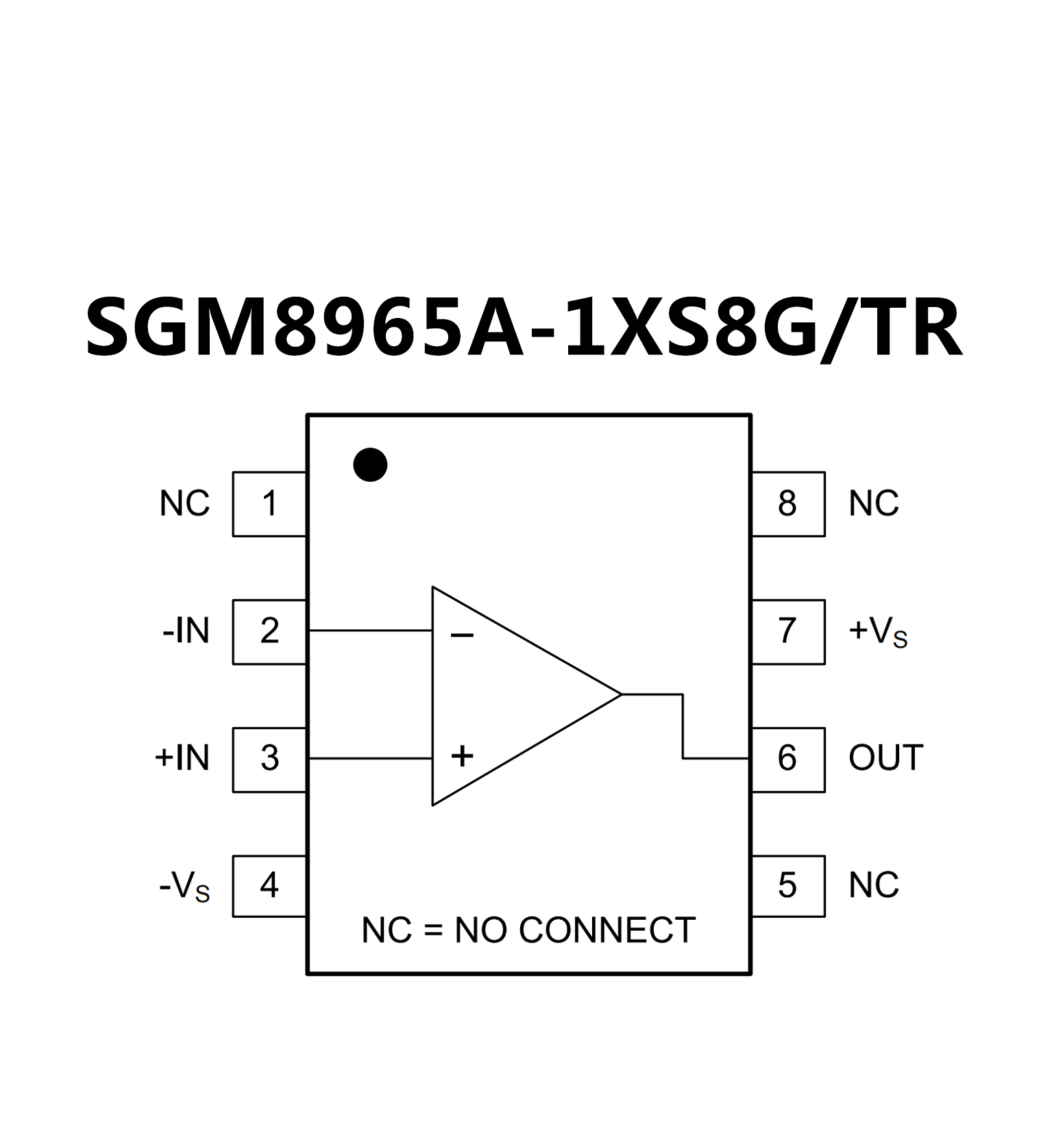

PIN CONFIGUTION
優勢替代
FEATURES
? 低失調電壓：50 μV(最大(da)值(zhi))
? 低輸入偏置電流：1 pA(最大值)
? 單電源供電：1.8 V至5 V
? 低噪(zao)聲：22 nV/√Hz
? 微功(gong)耗：50 μA(最大值)
? 低失真
? 無相(xiang)位反轉
? 單(dan)位(wei)增益(yi)穩定(ding)

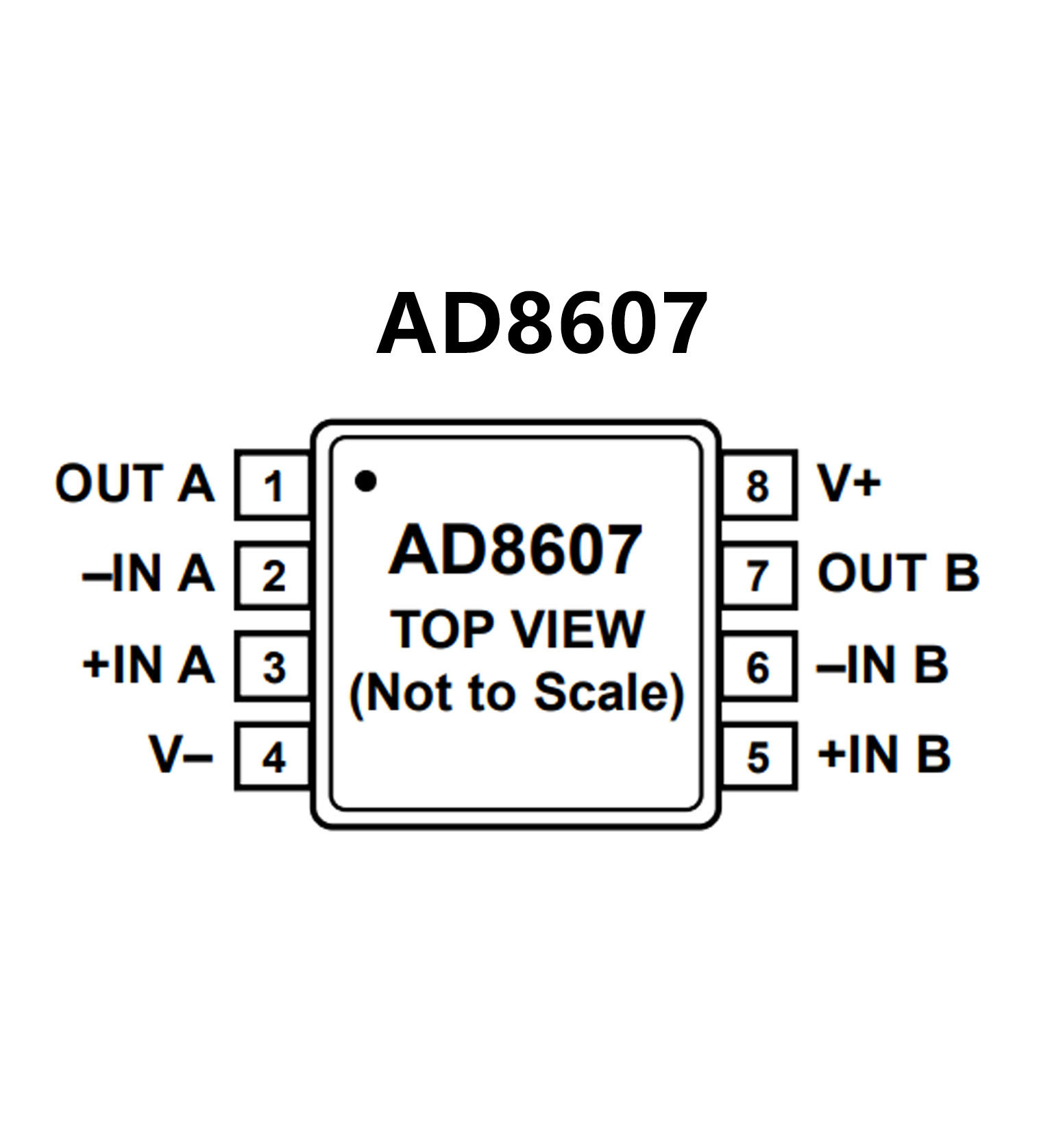

PIN CONFIGUTION
