SGM8965A-2.pdf? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages

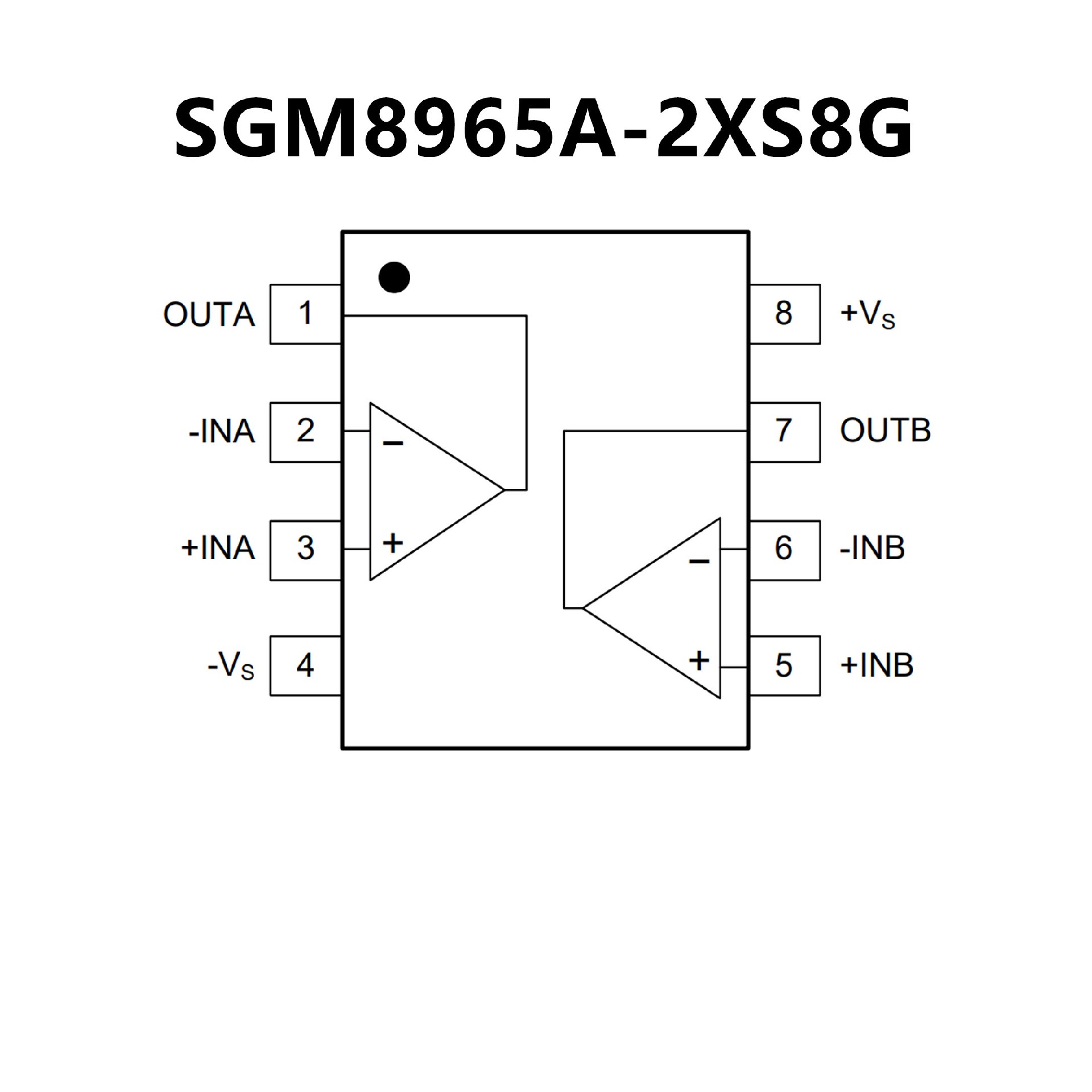

SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages
? Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 130 nVPP
? Low Quiescent Current: 2.5 mA/Ch (Maximum)
? Low Offset Voltage: 150 μV (Maximum)
? Gain Bandwidth Product: 18 MHz
? Slew Rate: 6.4 V/μs
? Wide Supply Range:
±2.25 V to ±18 V, 4.5 V to 36 V
? Rail-to-Rail Output
? Short-Circuit Current: ±65 mA
? Available in 5-Pin SOT-23, 8-Pin MSOP,
8-Pin SOIC, and 14-Pin TSSOP Packages
