50MHz, Low Distortion,RRIO, Single-Supply Operational Amplifiers, SGM8965A-2 Replace OPA2350.
SGM8965A-2
SGM8965A-2.pdf
SGM8965A-2.pdfFEATURES
? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

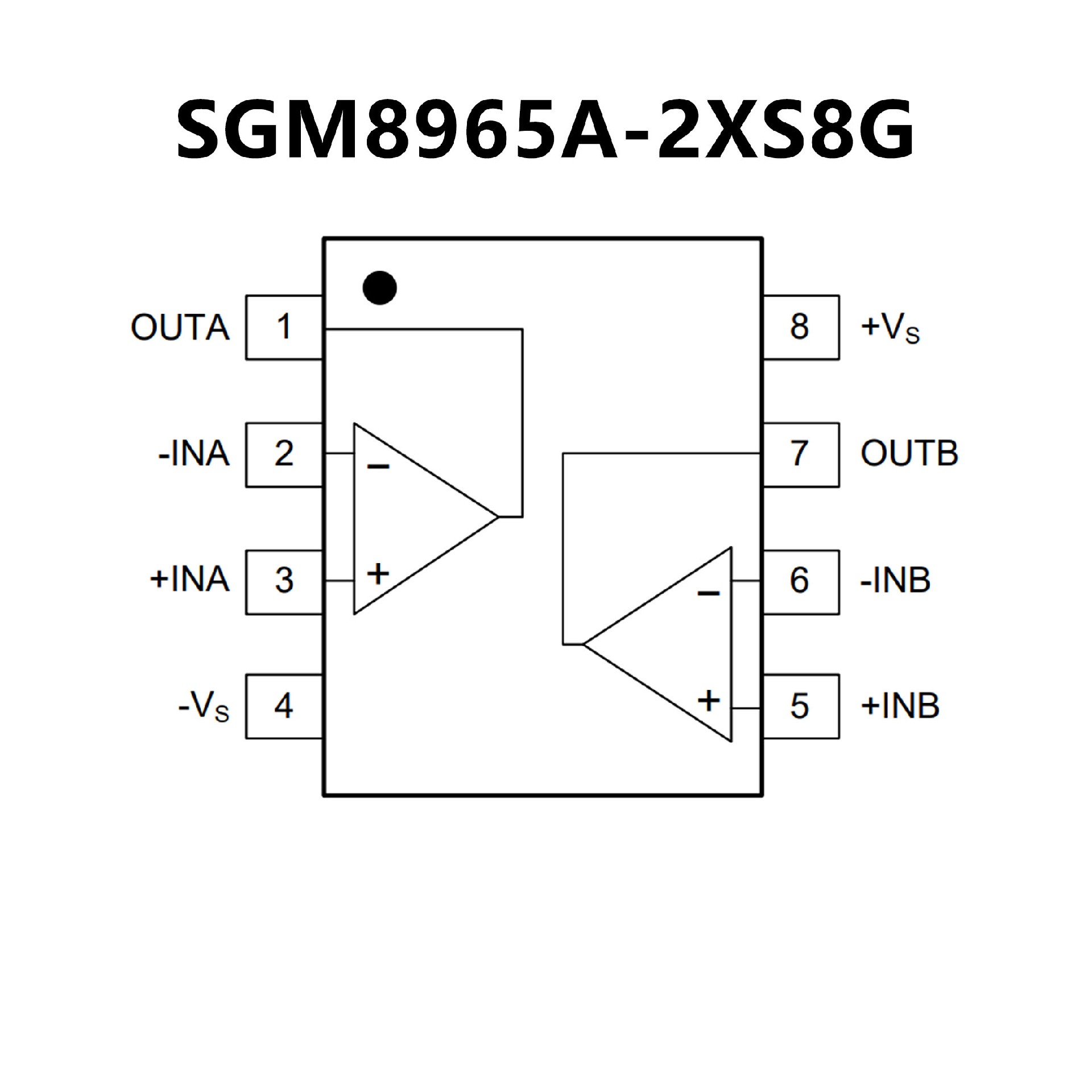

PIN CONFIGUTION
優勢替代
FEATURES
? Rail-to-Rail Input
? Rail-to-Rail Output (Within 10 mV)
? Wide Bandwidth: 38 MHz
? High Slew Rate: 22 V/μs
? Low Noise: 5 nV/√Hz
? Low THD+Noise: 0.0006%
? Unity-Gain Stable
? MicroSize Packages
? Single, Dual, and Quad

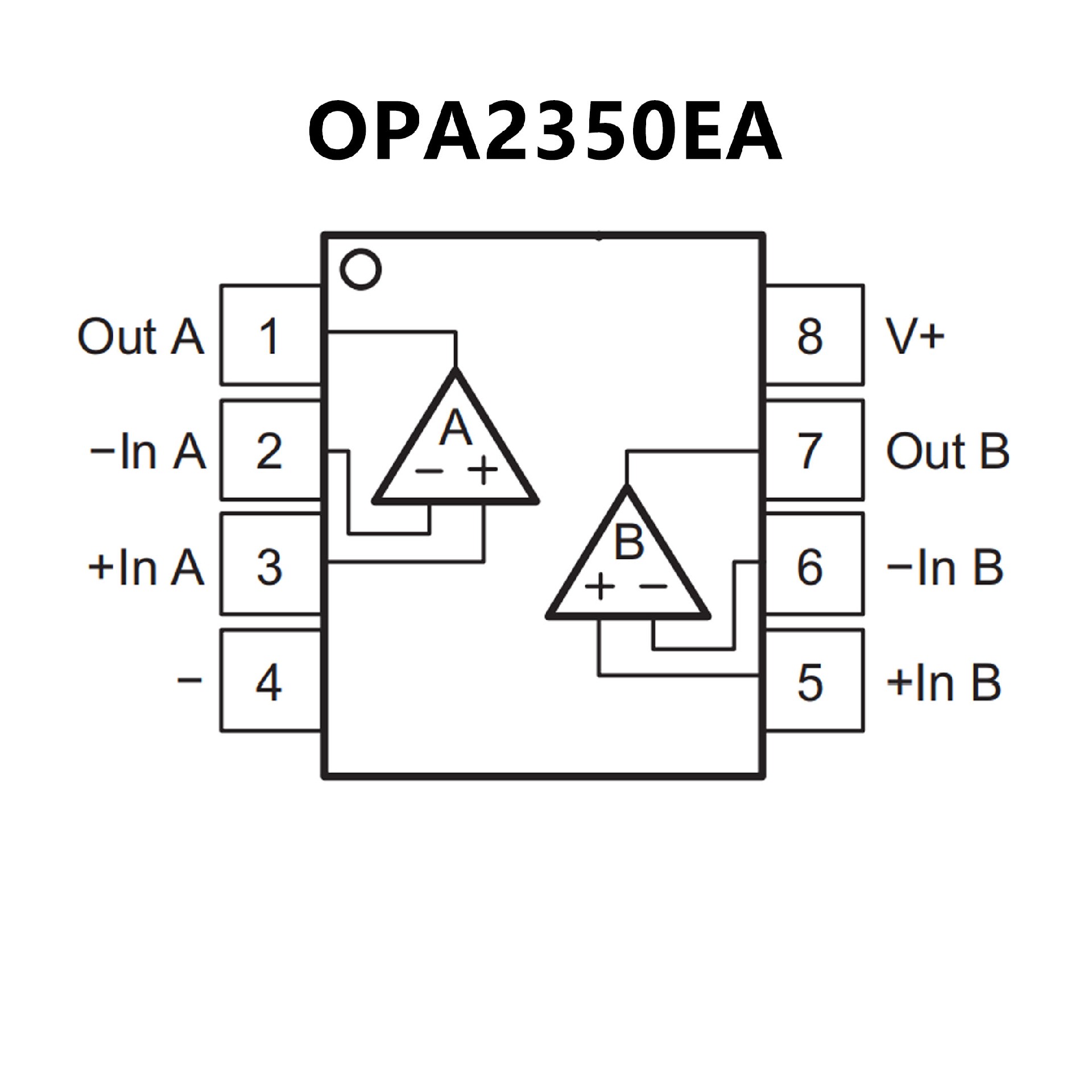

PIN CONFIGUTION
