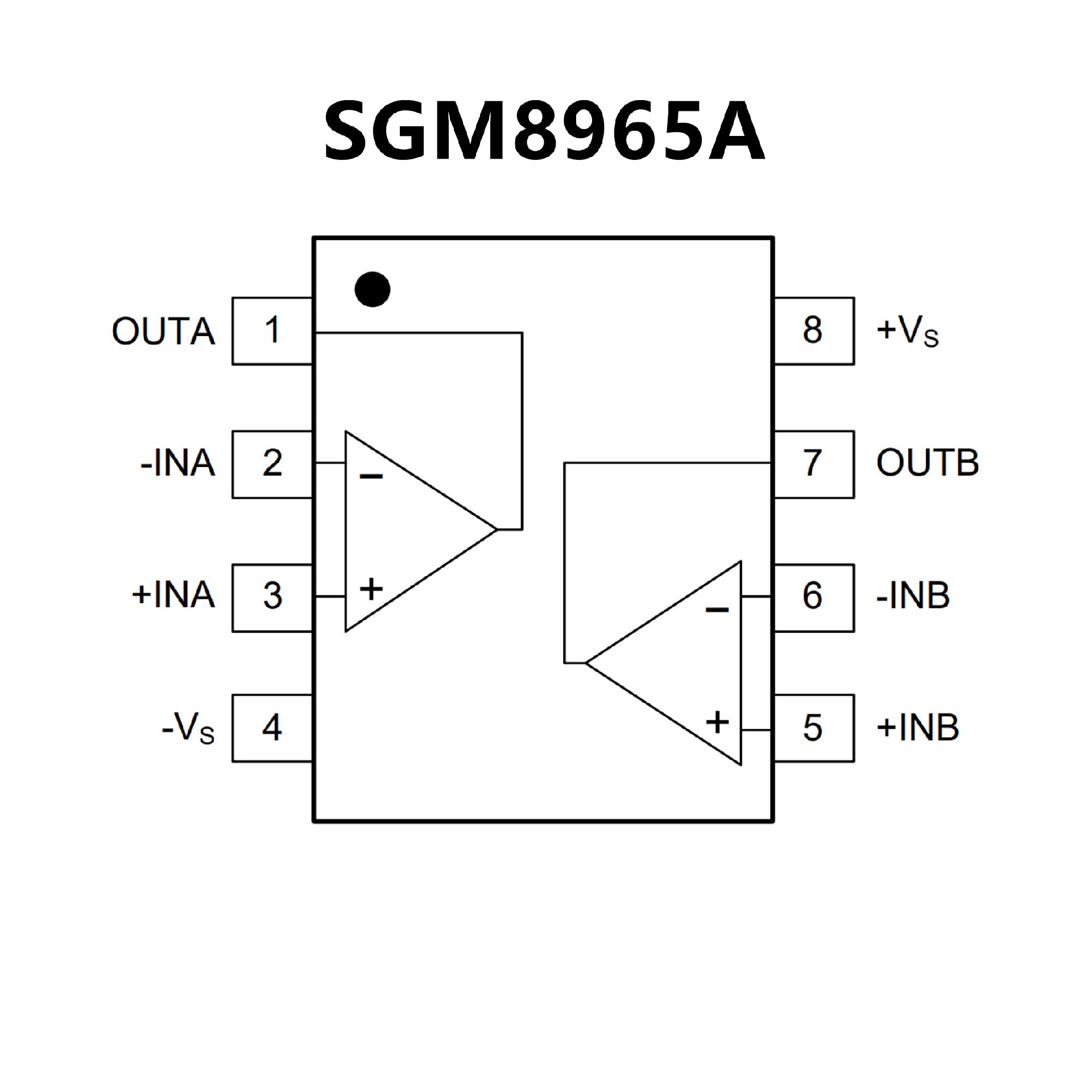

SGM8965A.pdf? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages
? Gain Bandwidth: 50 MHz
? Zer?-Crossover Distortion Topology:
– Excellent THD+N: 0.0004%
– CMRR: 100 dB (Minimum)
– Rail-to-Rail Input and Output
– Input 100 mV Beyond Supply Rail
? Low Noise: 4.5 nV/√Hz at 100 kHz
? Slew Rate: 25 V/μs
? Fast Settling: 0.3 μs to 0.01%
? Precision:
– Low Offset: 100 μV
– Low Input Bias Current: 0.2 pA
? 2.2-V to 5.5-V Operation
