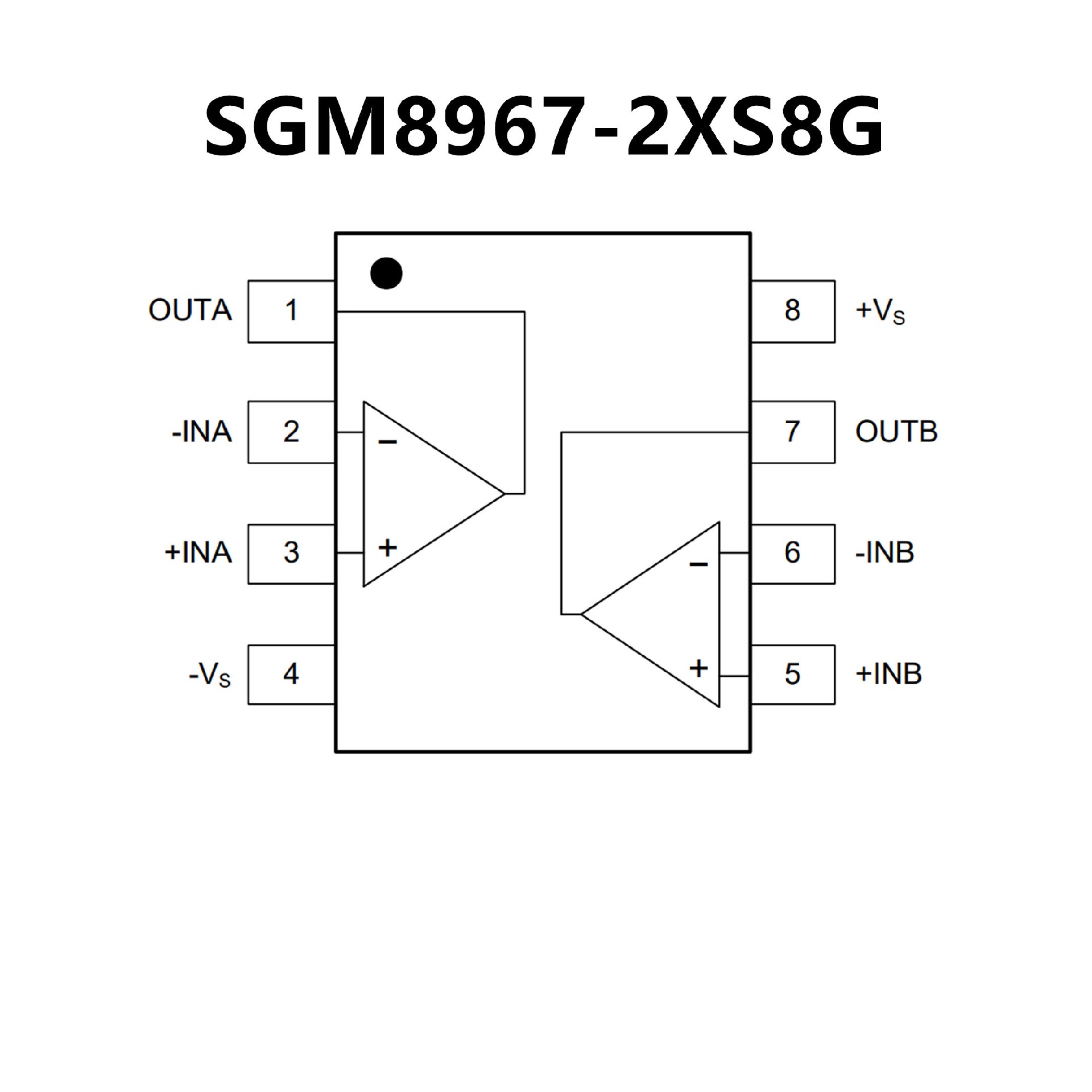

SGM8967-2.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 27MHz
? High Slew Rate: 30V/μs
? Settling Time to 0.1% with 2V Step: 120ns
? Overload Recovery Time: 60ns
? Low Noise: 8nV/Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 2.7mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8967-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8967-2 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8967-4 Available in Green SOIC-14 and
TSSOP-14 Packages

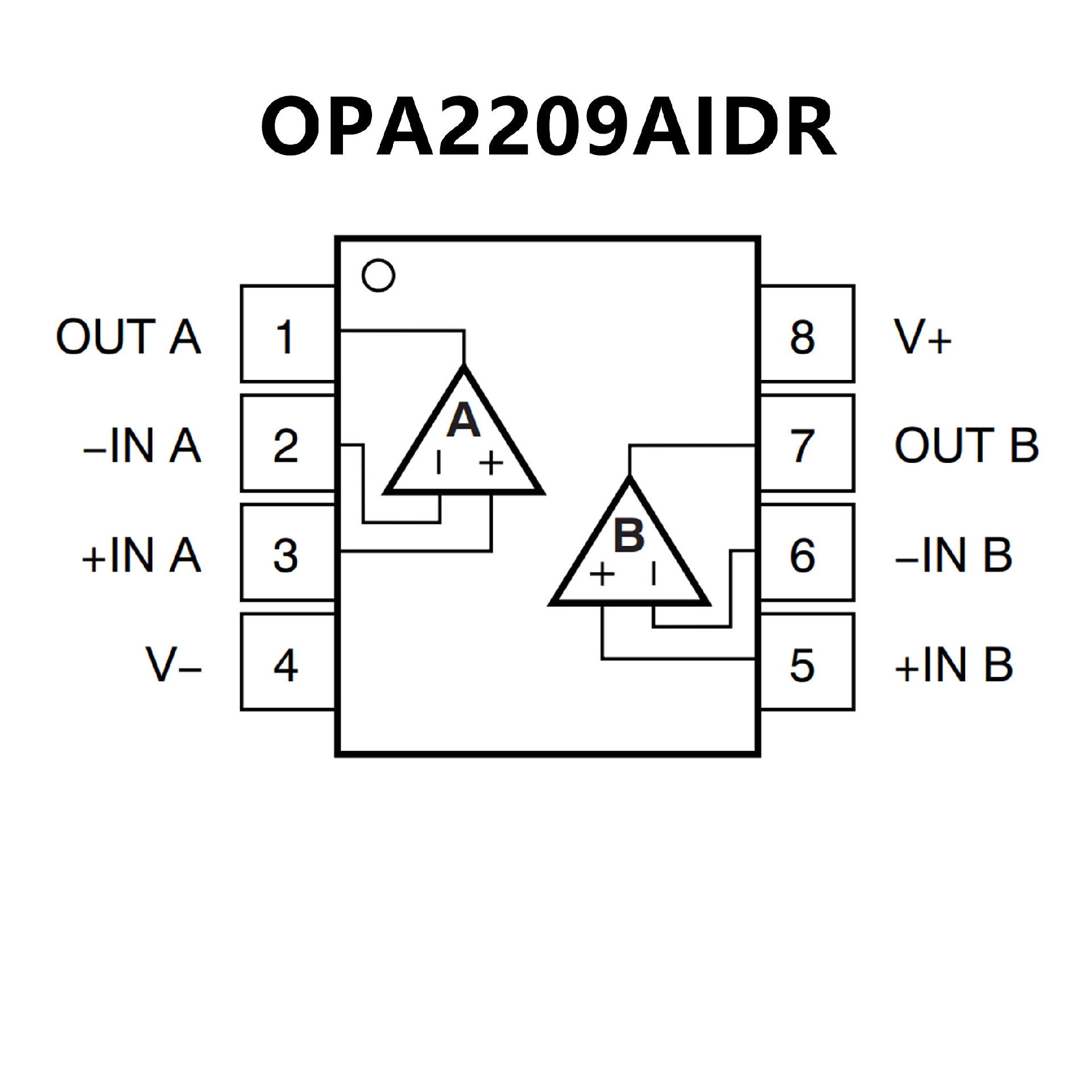

? Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 130 nVPP
? Low Quiescent Current: 2.5 mA/Ch (Maximum)
? Low Offset Voltage: 150 μV (Maximum)
? Gain Bandwidth Product: 18 MHz
? Slew Rate: 6.4 V/μs
? Wide Supply Range:
±2.25 V to ±18 V, 4.5 V to 36 V
? Rail-to-Rail Output
? Short-Circuit Current: ±65 mA
? Available in 5-Pin SOT-23, 8-Pin MSOP,
8-Pin SOIC, and 14-Pin TSSOP Packages
