? Rail-to-Rail Input and Output

? High Gain-Bandwidth Product: 27MHz

? High Slew Rate: 30V/μs

? Settling Time to 0.1% with 2V Step: 120ns

? Overload Recovery Time: 60ns

? Low Noise: 8nV/Hz at 10kHz

? Supply Voltage Range: 2.1V to 5.5V

? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

? Low Power:

  Supply Current: 2.7mA/Amplifier (TYP)

  SGM8967-3 Supply Current when Disabled: 0.1μA (TYP)

? -40℃ to +125℃ Operating Temperature Range

? Small Packaging:

  SGM8967-1 Available in Green SOT-23-5 and

  SOIC-8 Packages

  SGM8967-2 Available in Green MSOP-8 and

  SOIC-8 Packages

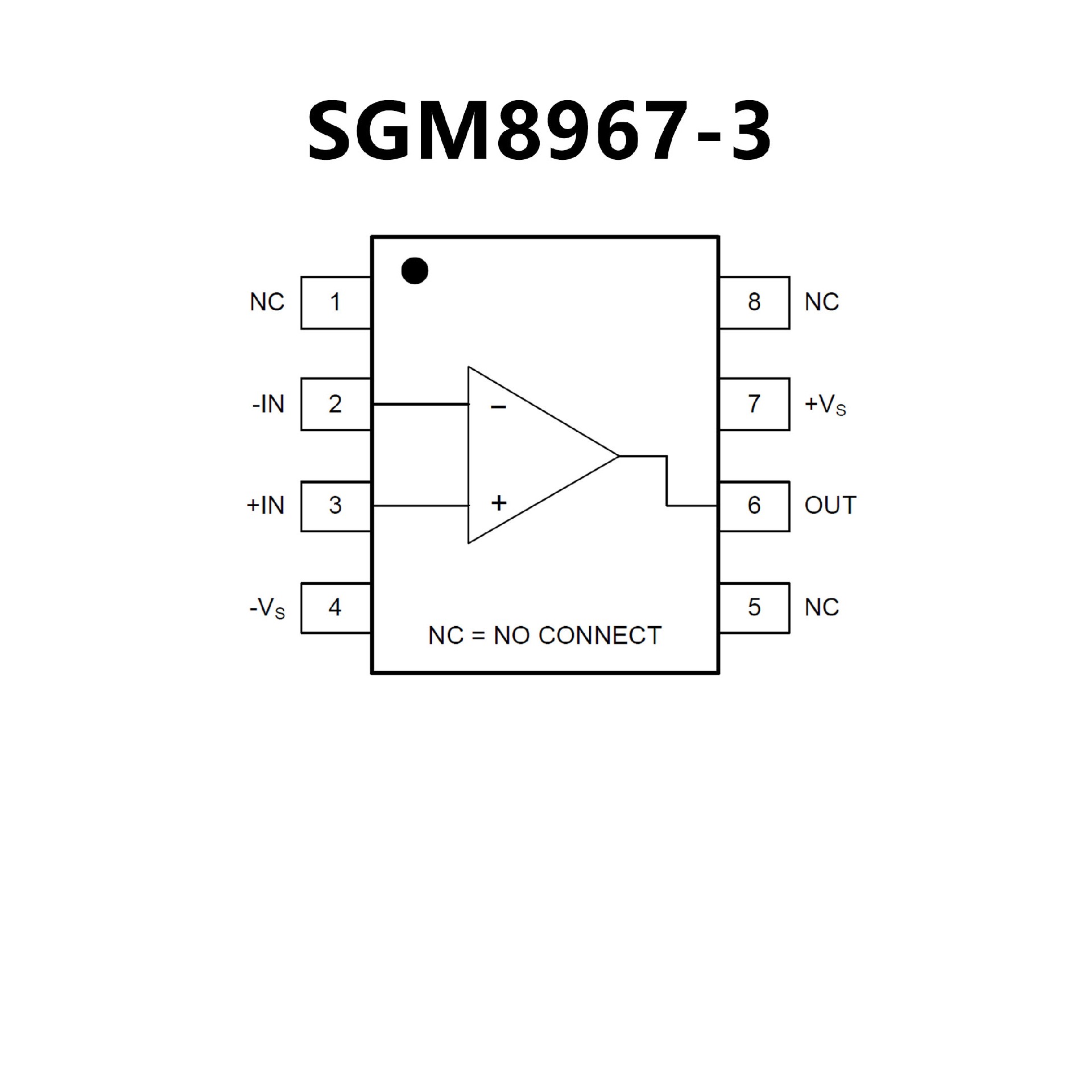

  SGM8967-3 Available in a Green SOT-23-6 Package

  SGM8967-4 Available in Green SOIC-14 and

  TSSOP-14 Packages
