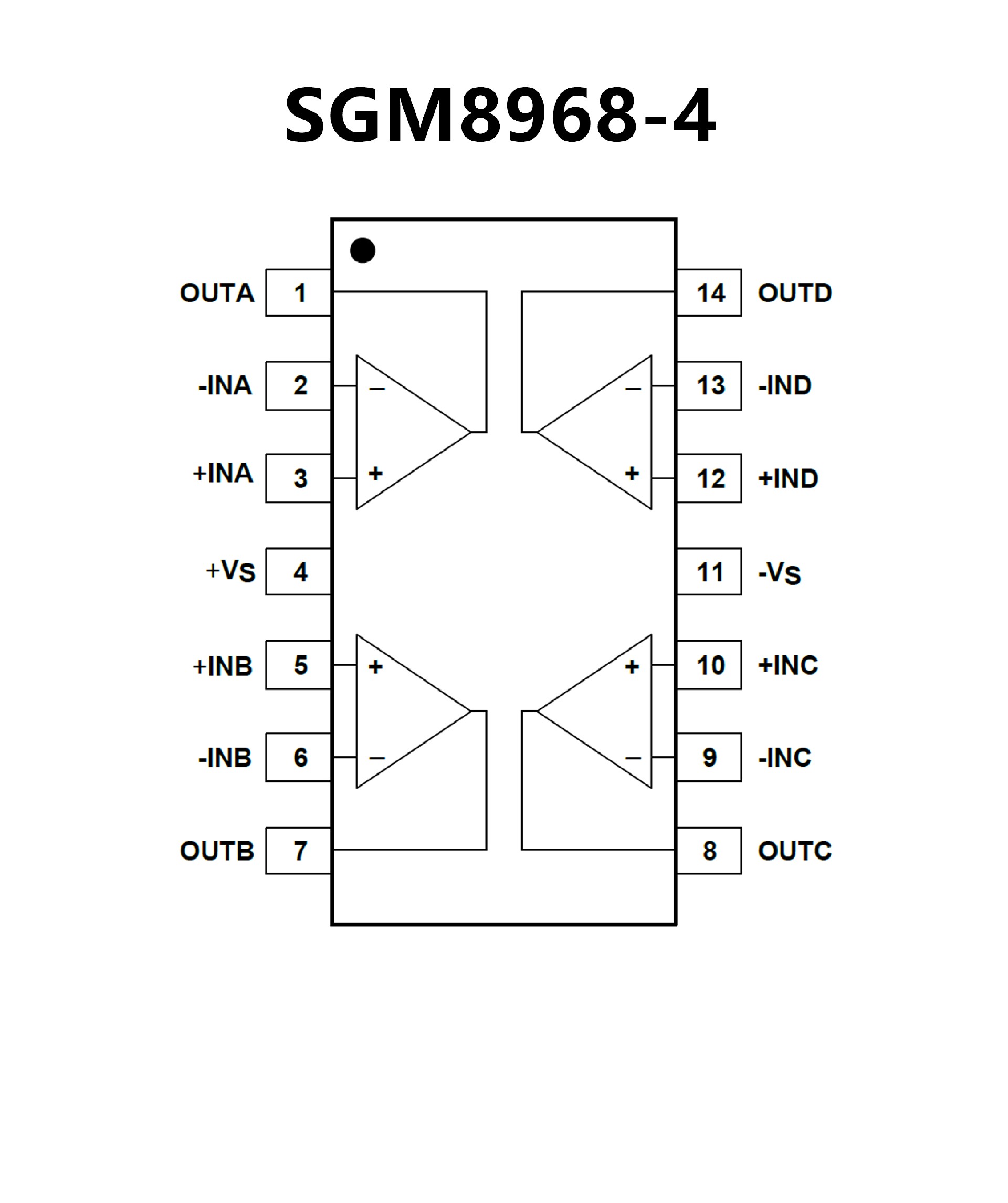

SGM8968-4XS14G.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8968-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8968-2 Available in Green SOIC-8 and
MSOP-8 Packages
SGM8968-4 Available in Green SOIC-14 and
TSSOP-14 Packages

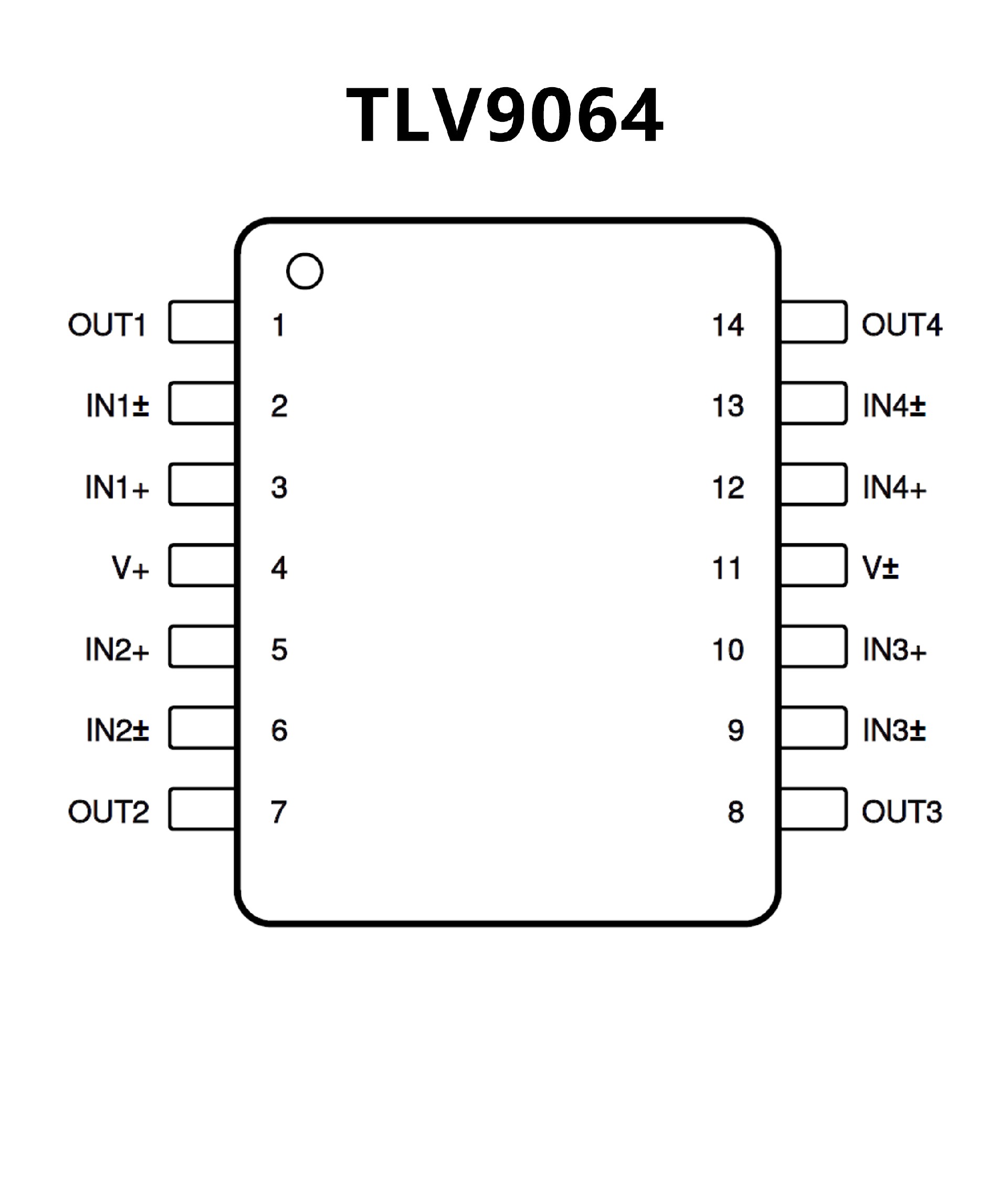

? Rail-to-rail input and output
? Low input offset voltage: ±0.3 mV
? Unity-gain bandwidth: 10 MHz
? Low broadband noise: 10 nV/√Hz
? Low input bias current: 0.5 pA
? Low quiescent current: 538 μA
? Unity-gain stable
? Internal RFI and EMI filter
? Operational at supply voltages as low as 1.8 V
? Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
? Shutdown version: TLV906xS
? Extended temperature range: –40°C to 125°C
