Application-specific Operational Amplifier, SGMOP07 Replace OP07.
SGMOP07
SGMOP07.pdf
SGMOP07.pdfFEATURES
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 135dB
? Gain-Bandwidth Product: 600kHz
? Low Noise: 8.5nV/ Hz at 1kHz
? Supply Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.75mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

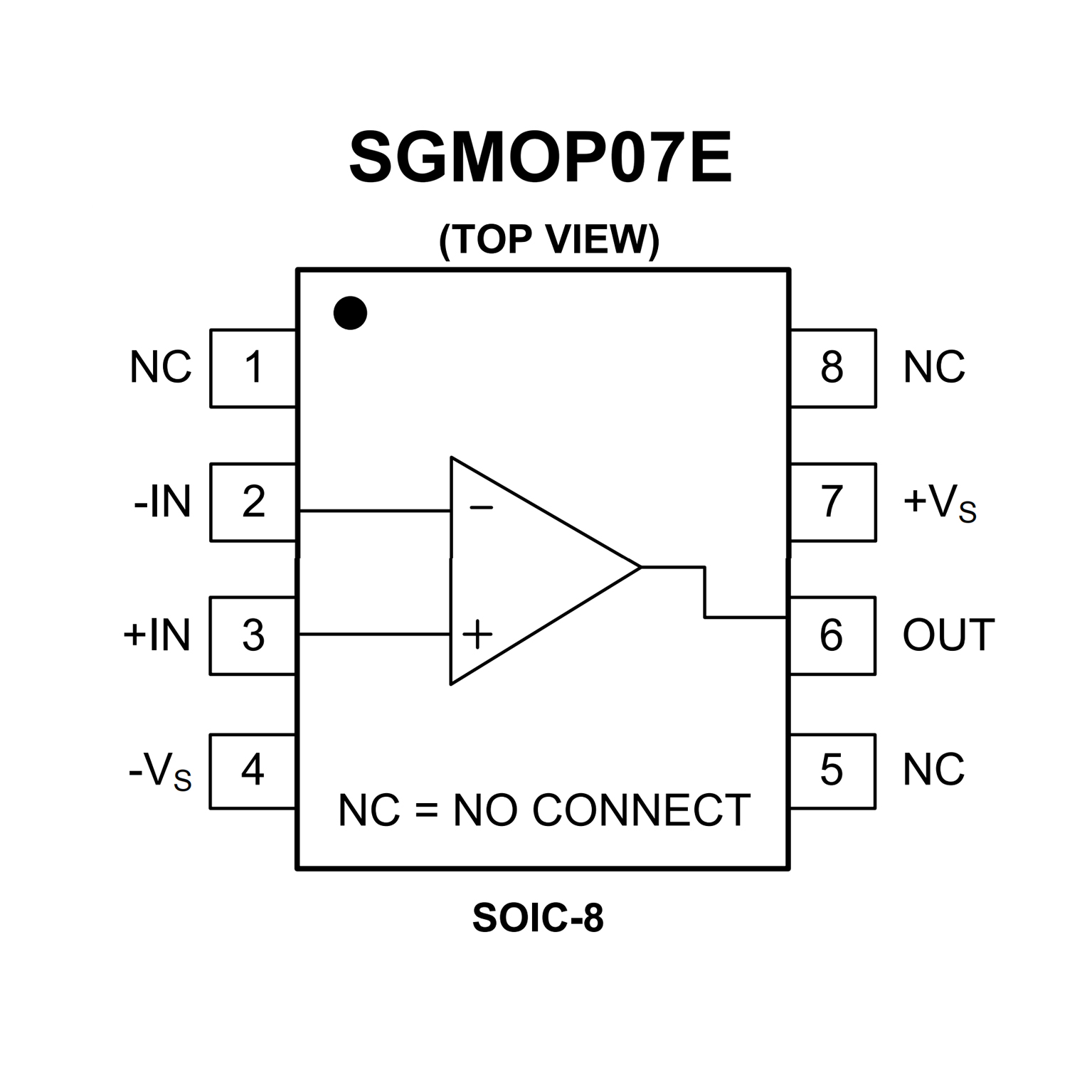

PIN CONFIGUTION
優勢替代
FEATURES
? Low Noise
? No External Components Required
? Replace Chopper Amplifiers at a Lower Cost
? Wide Input-Voltage Range: 0 to ±14 V (Typ)
? Wide Supply-Voltage Range: ±3 V to ±18 V

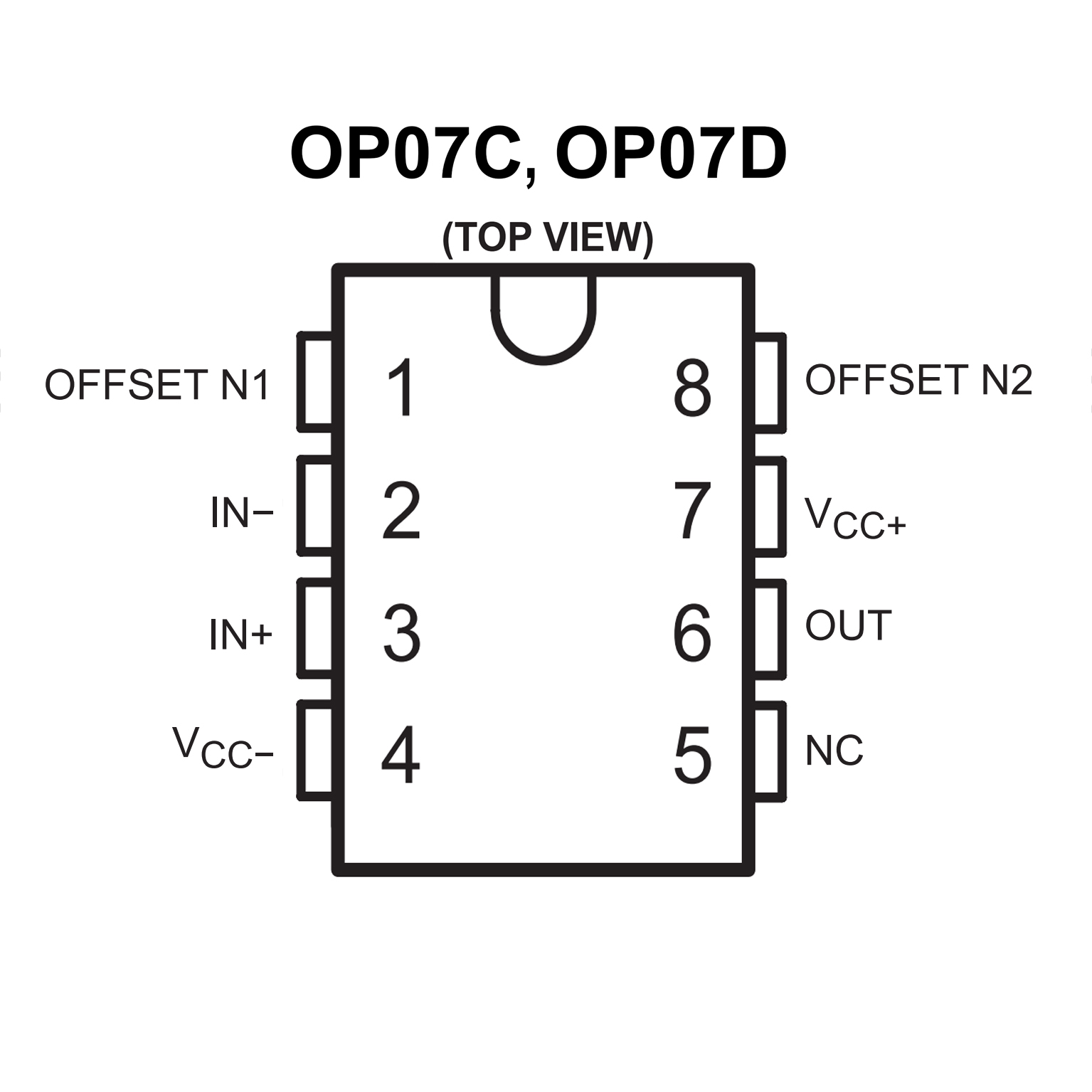

PIN CONFIGUTION
