Application-specific Operational Amplifier, SGMOP07 Replace TP07.
SGMOP07
SGMOP07.pdf
SGMOP07.pdfFEATURES
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 120dB at VS = ±15V
? High PSRR: 146dB
? High Gain-Bandwidth Product: 3MHz
? Settling Time to 0.1% with 1V Step: 0.5μs
? Overload Recovery Time: 10μs
? Low Noise: 8.5nV/ Hz at 1kHz
? Supply Voltage Range:3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.9mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 Package

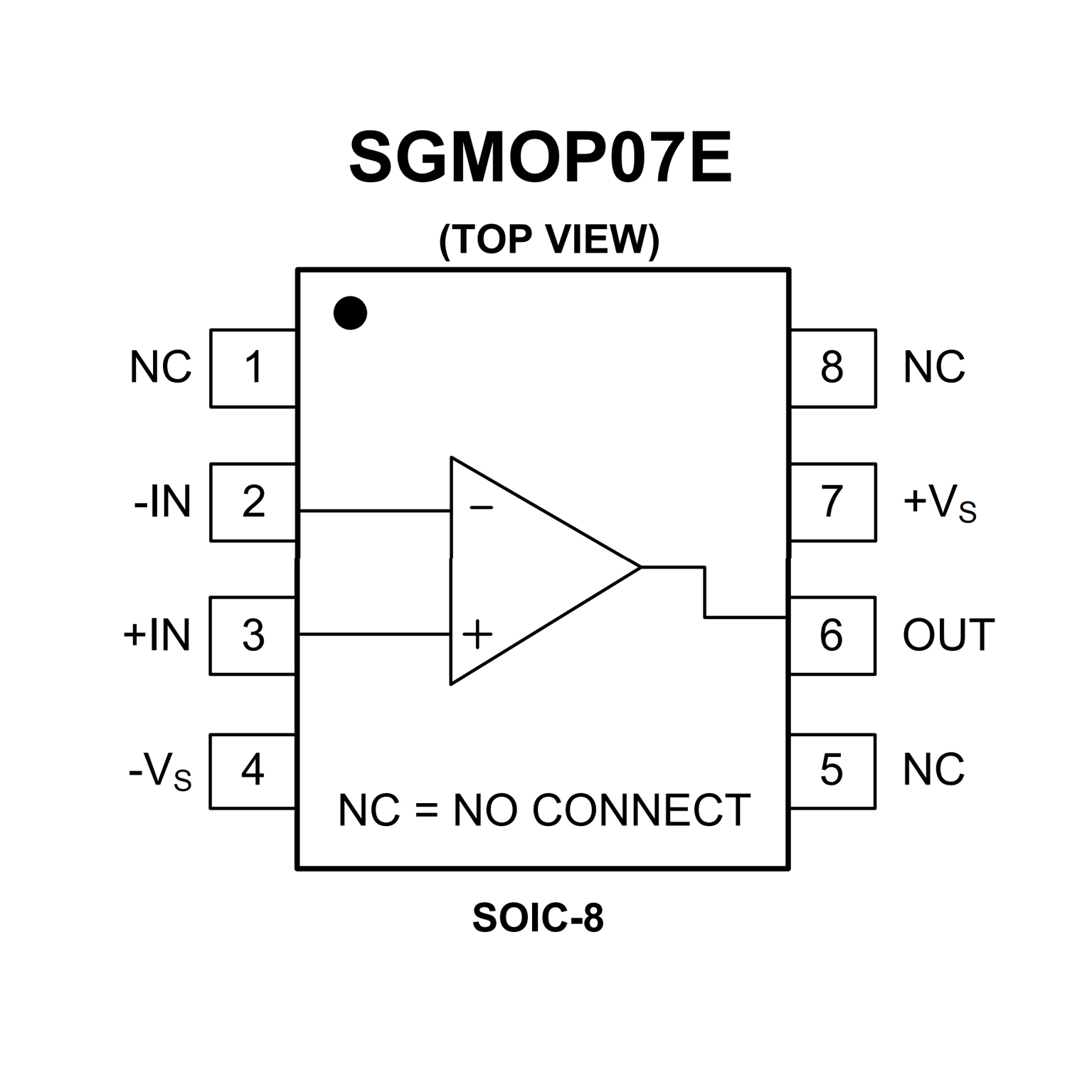

PIN CONFIGUTION
優勢替代
FEATURES
? Low Offset Voltage: 150μV Maximum
? Low Drift: ±0.9μV/°C
? High EMIRR: 84dB at 900MHz
? Low Noise: 19 nV/√Hz(f= 1kHz)
? Wide Input Voltage Range: 0 to ±14V
? Wide Supply Range: ±1.35V to ±18V
? Low Input Bias Current: 40pA Typical
? Below-Ground (V-) Input Capability to -0.3V
? Rail-to-Rail Output Voltage Range
? Unit Gain Stable
? –40°C to 125°C Operation Range
? Robust 3kV – HBM and 2kV – CDM ESD Rating
? Direct or Update Replacement For OP07C,OP07D
and OP37

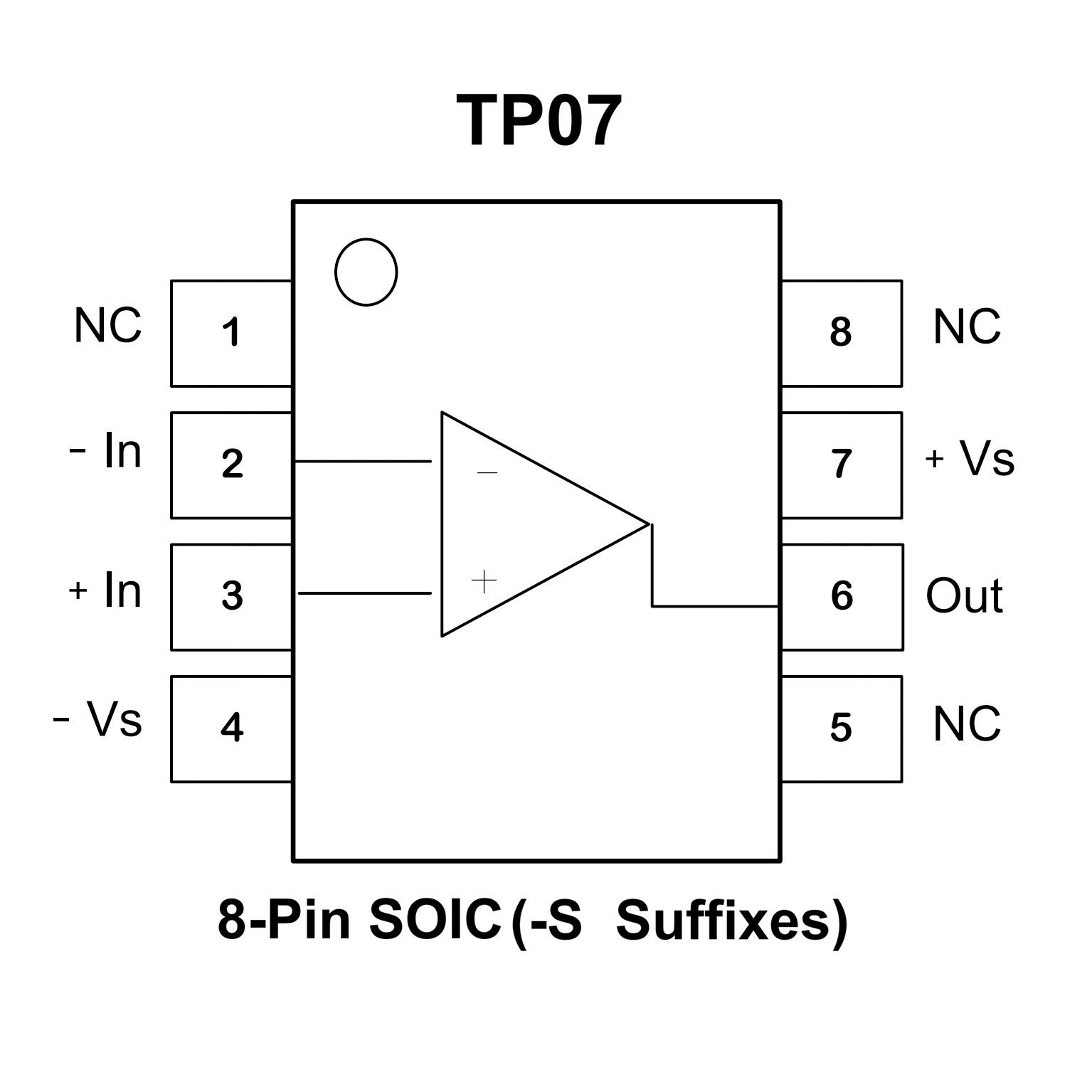

PIN CONFIGUTION
