300mA, Low IQ, High PSRR LDO Regulators, TMI6030 功能替代TI物料TPS727.
TMI6030系列
FEATURES
? 2.5V to 5.5V Input Voltage Range
? 320mV @300mA typical Dropout Voltage
? Excellent Transient Response
? Stable with 1μF Ceramic Output Capacitor
? 70dB PSRR at 1kHz
? Low Quiescent Current: 50μA typical.
? Low Shutdown Current: <1μA
? Output Accuracy: ±2%
? Fixed Output Voltage: 1.2V~3.3V
? Current Limit Protection
? Thermal Shutdown
? Output Auto-Discharge in Shutdown
? RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

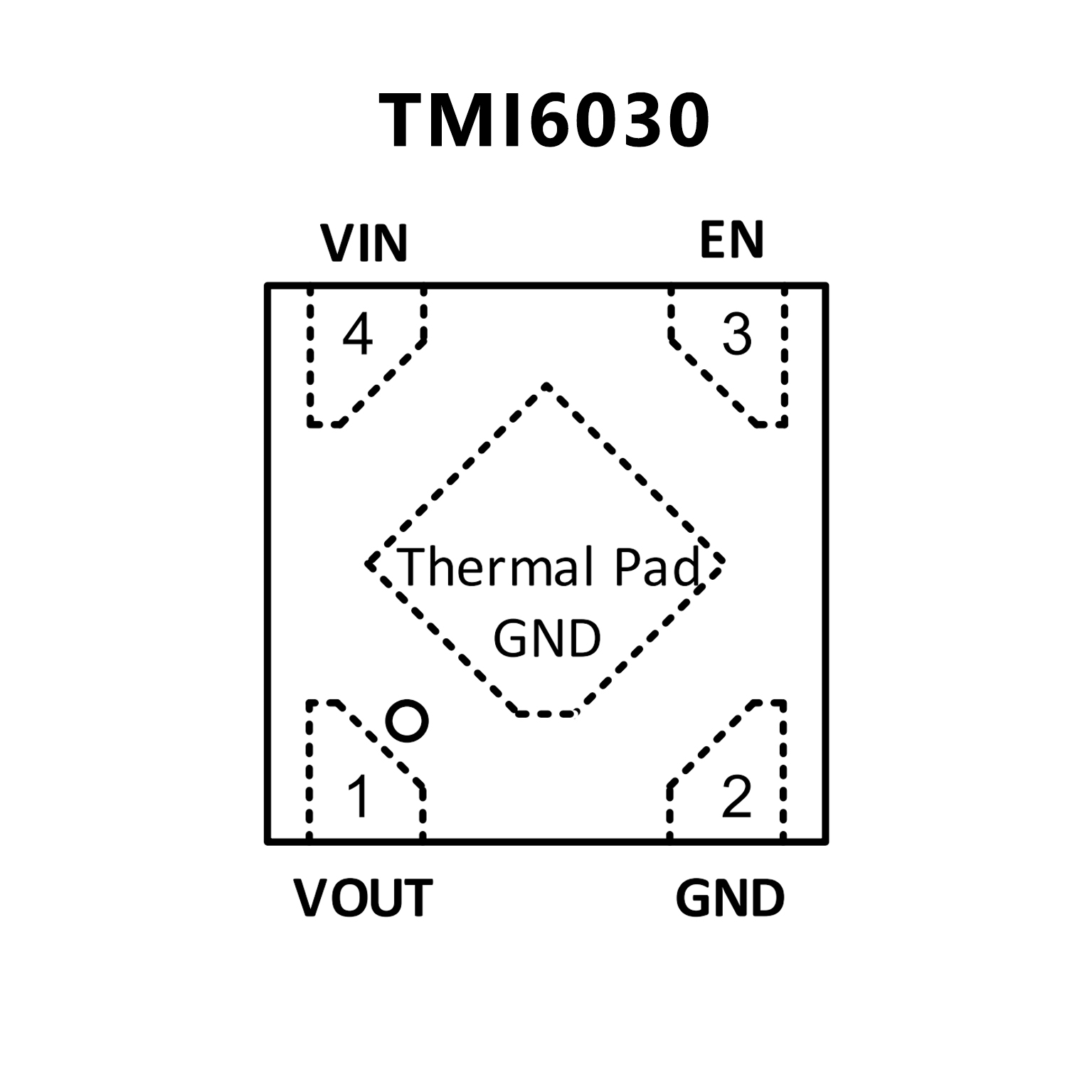

PIN CONFIGUTION
優勢替代
TPS727
No.14191
FEATURES
? Very Low Dropout:
? 65 mV Typical at 100 mA
? 130 mV Typical at 200 mA
? 163 mV Typical at 250 mA
? 2% Accuracy Over Load, Line, Temperature
? Ultralow IQ: 7.9 μA
? Excellent Load Transient Performance:±50 mV
for 200 mA Loading and Unloading Transient
? Available in Fixed-Output Voltages From 0.9 V
to 5 V Using Innovative Factory EEPROM Programming
? High PSRR: 70 dB at 1 kHz
? Stable with a 1.0-μF Ceramic Capacitor
? Thermal Shutdown and Overcurrent Protection
? Available in 4-Ball, 0.4-mm Pitch Wafer-Level Chip Scale
and 1.5-mm × 1.5-mm SON Packages

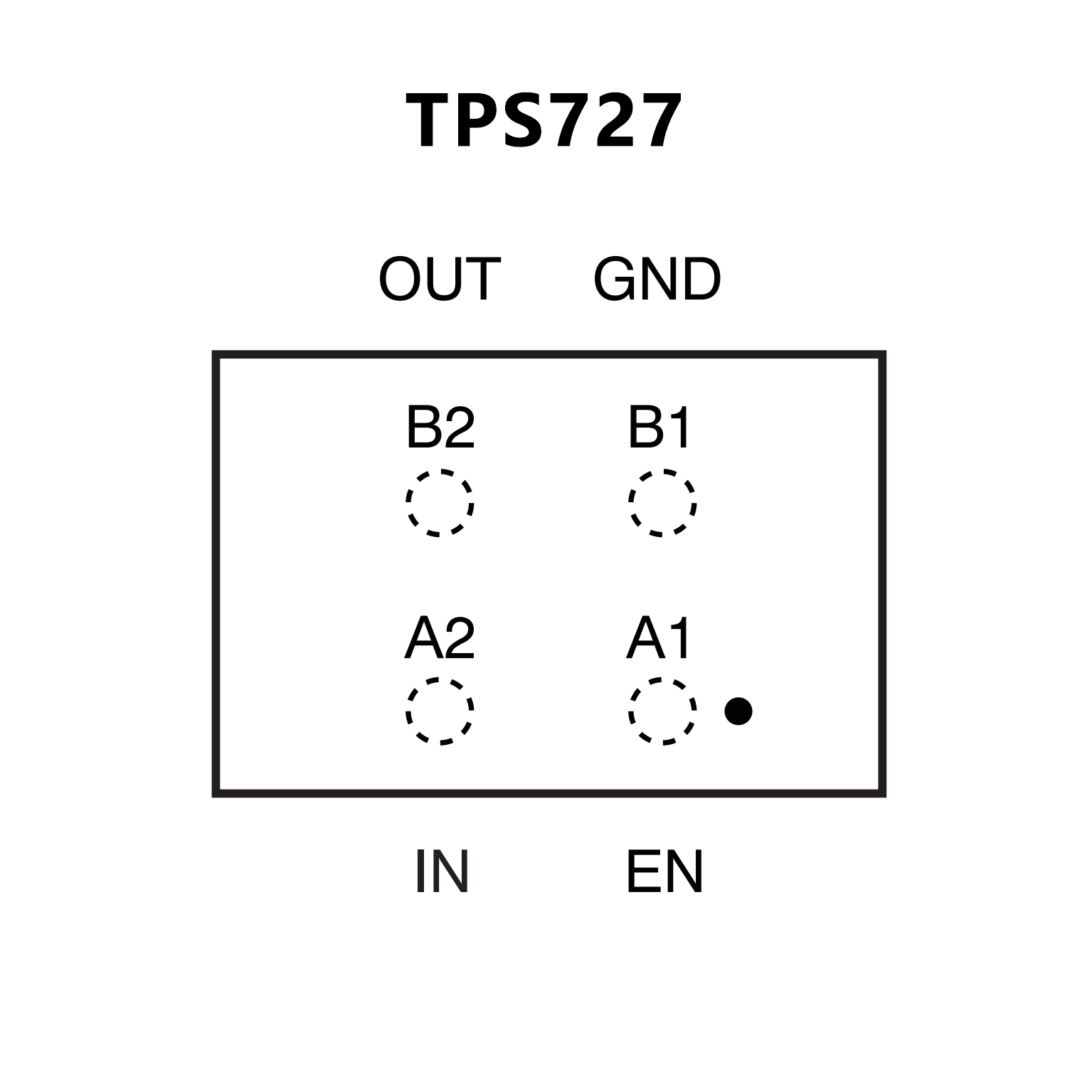

PIN CONFIGUTION
