TMI6261B.pdf? Integrated Typical 60mΩ Power MOSFET
? Low Supply Current
? 30μA Typical at Switch On State
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 8μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Deglitched Open-Drain Over-Current Flag Output
? Output Discharge at shutdown (TMI6261B1 only)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? CB Test Certification by IEC62368-1:2014
? UL 2367 Certification - E528420

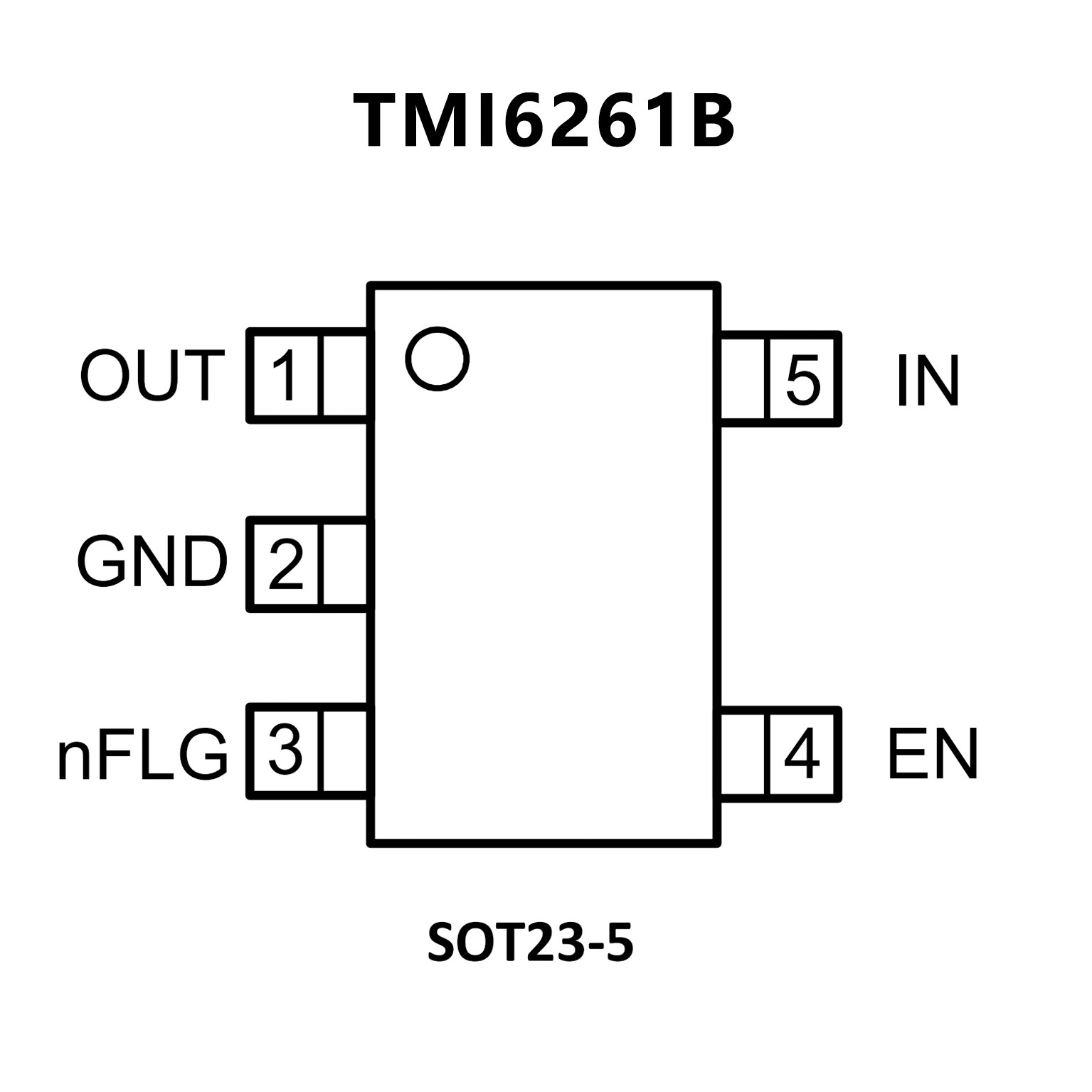

? SOT-23-6/SOT-23-5 Package
No.14183
? 70-mΩ High-Side MOSFET
? 1-A Continuous Current ? Short-Circuit Protections
? Thermal and Short-Circuit Protection
? Accurate Current Limit (1.1 A min, 1.9 A max)
? Operating Range: 2.7 V to 5.5 V
? 0.6-ms Typical Rise Time
? Undervoltage Lockout
? Deglitched Fault Report (OC)
? No OC Glitch During Power Up
? 1-μA Maximum Standby Supply Current
