Dual-Bridge Motor Controller IC, TMI8262 Replace DRV8813.
FEATURES

? 8-V to 45-V Operating Supply Voltage Range

? 1.6-A Maximum Drive Current at 24 V and TA=25℃
? Dual H-Bridge Current Control Motor
  – Drive a Bipolar Stepper or Two DC Motors
  – Four Level Winding Current Control
? Multiple Decay Modes
  – Mixed Decay
  – Slow Decay
  – Fast Decay
? Industry Standard Parallel Digital Control
  Interface
? Low Current Sleep Mode
? Built In 3.3-V Reference Output Small Package
  and Footprint
? Protection Features
  – Overcurrent Protection (OCP)
  – Thermal Shutdown (TSD)
  – VM Undervoltage Lockout (UVLO)
  – Fault Condition Indication Pin (nFAULT)
? Small Packages
  - TMI8262: HTSSOP28
  - TMI8262Q: QFN5x5-28

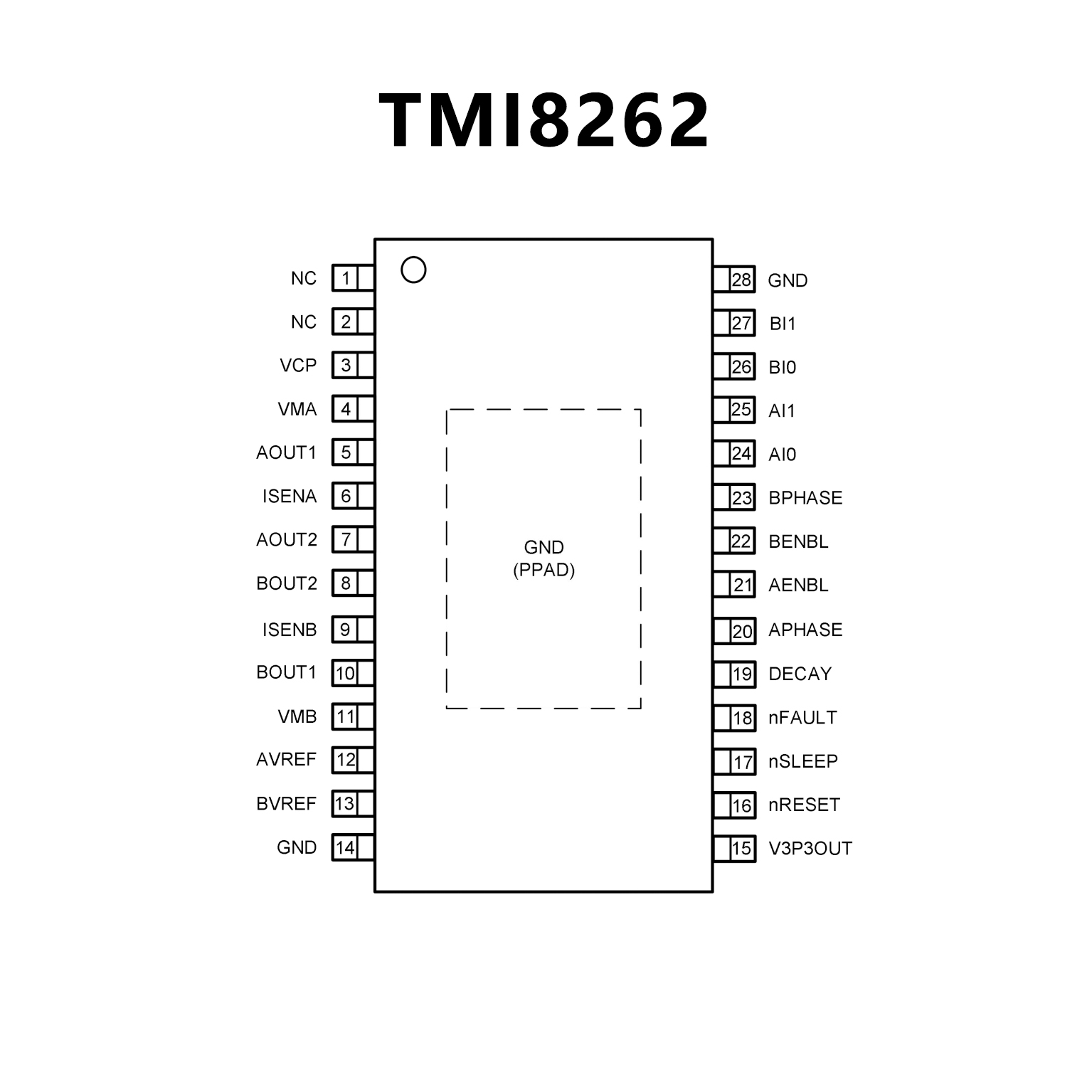

PIN CONFIGUTION
優勢替代
DRV8813 DRV8813.pdf

No.14208

FEATURES

? 8.2-V to 45-V Operating Supply Voltage Range

? 2.5-A Maximum Drive Current at 24 V and TA = 25°C

? Dual H-Bridge Current Control Motor Driver

  Drive a Bipolar Stepper or Two DC Motors

  Four Level Winding Current Control

? Multiple Decay Modes

  Mixed Decay

  Slow Decay

  Fast Decay

? Industry Standard Parallel Digital ControlInterface

? Low Current Sleep Mode

? Built In 3.3-V ReferenceOutput

? Small Package and Footprint

? Protection Features

  Overcurrent Protection (OCP)

  Thermal Shutdown (TSD)

  VM Undervoltage Lockout (UVLO)

  Fault Condition Indication Pin (nFAULT)

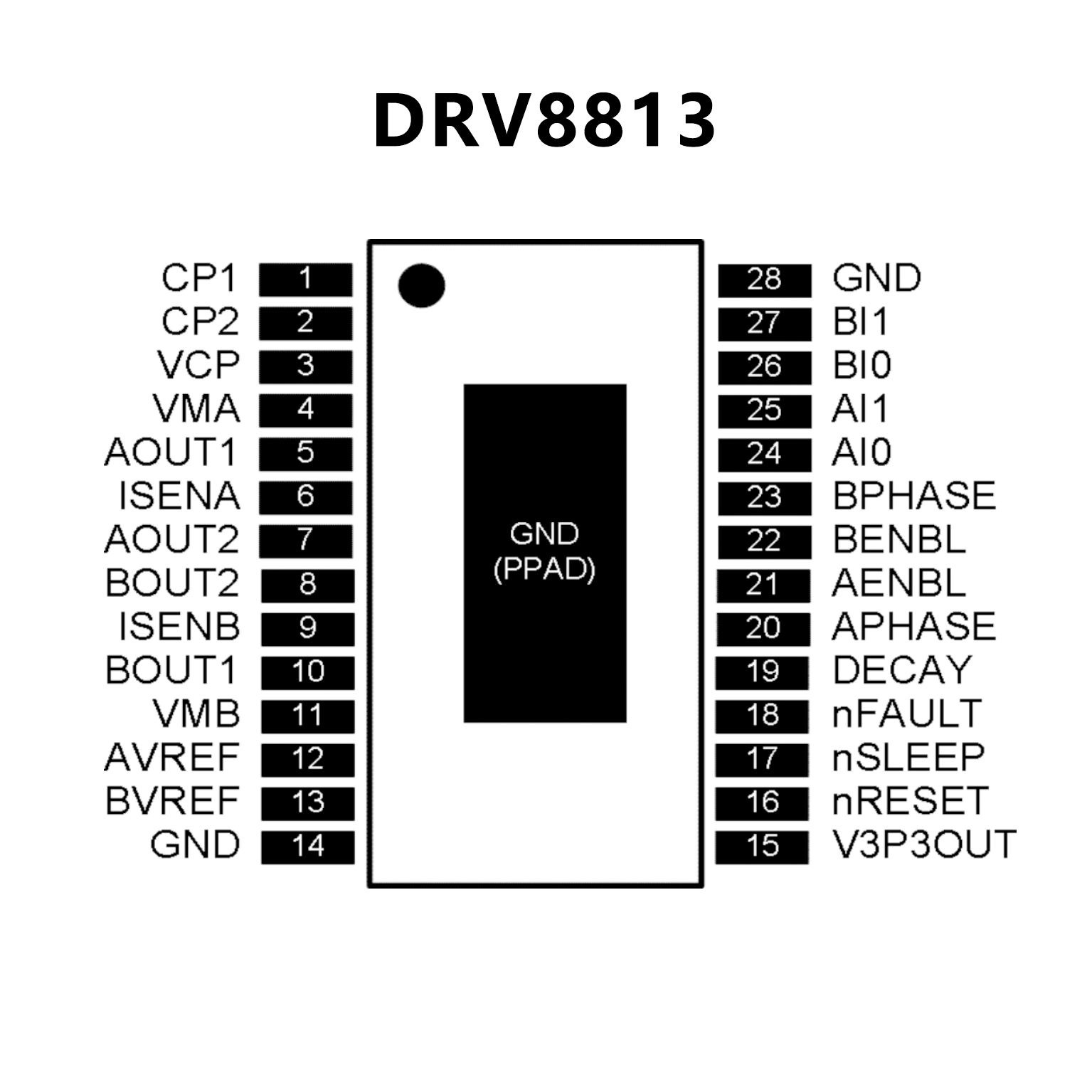

PIN CONFIGUTION
