High-Voltage, High-Current Darlington Transistor Arrays, ULN2004 Replace TI ULN2004.
ULN2004
ULN2004.pdf
ULN2004.pdfFEATURES
? 500mA Rated Collector Current (Single Output)
? High-Voltage Outputs: 50V
? Output Clamp Diodes
? Inputs Compatible with Popular Logic Types
? Relay Driver Applications
?“Green” Molding Compound (No Br, Sb)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

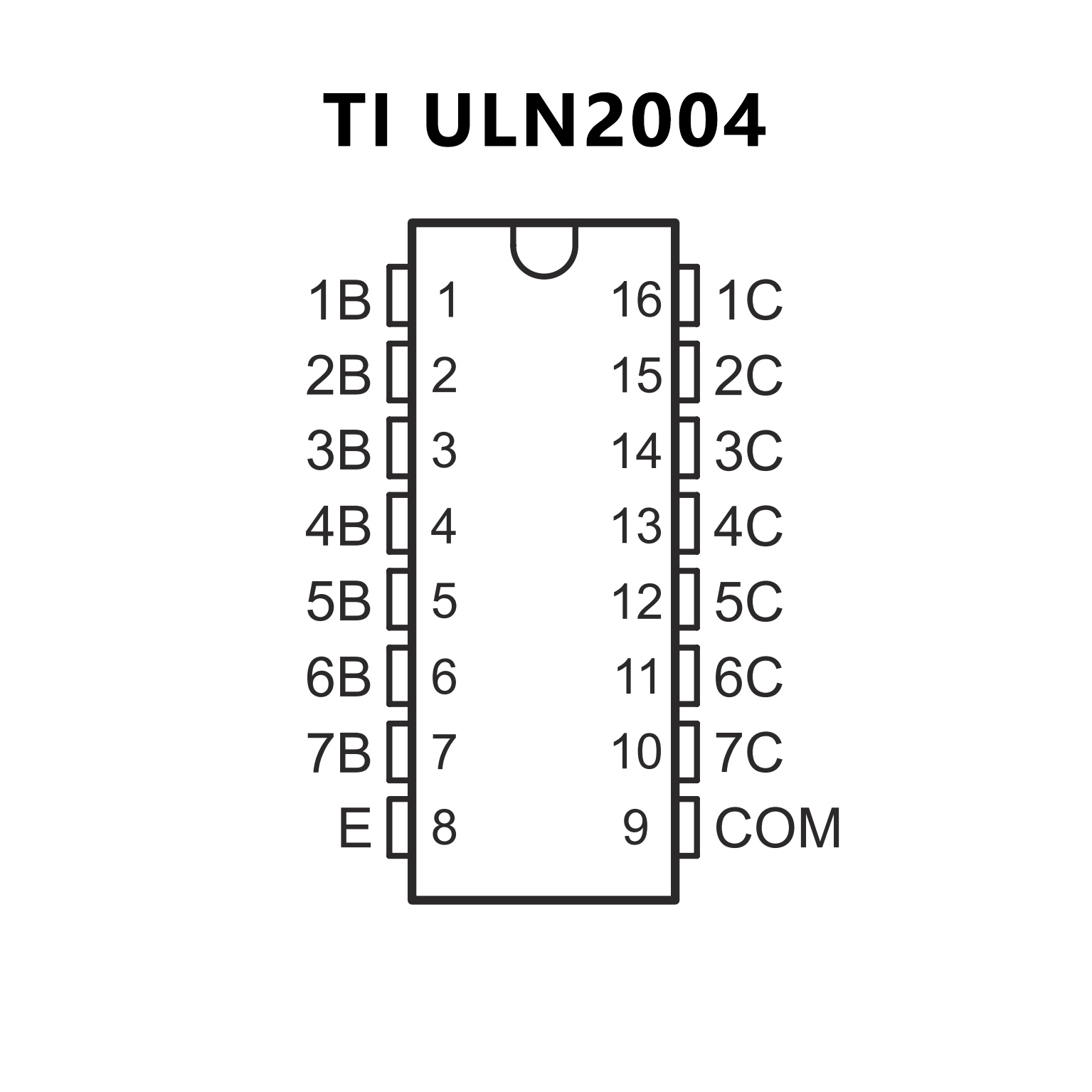

PIN CONFIGUTION
優勢替代
FEATURES
? 500mA-rated collector current (single output)
? High-voltage outputs: 50V
? Output clamp diodes
? Inputs compatible with various types of logic
? Relay-driver applications

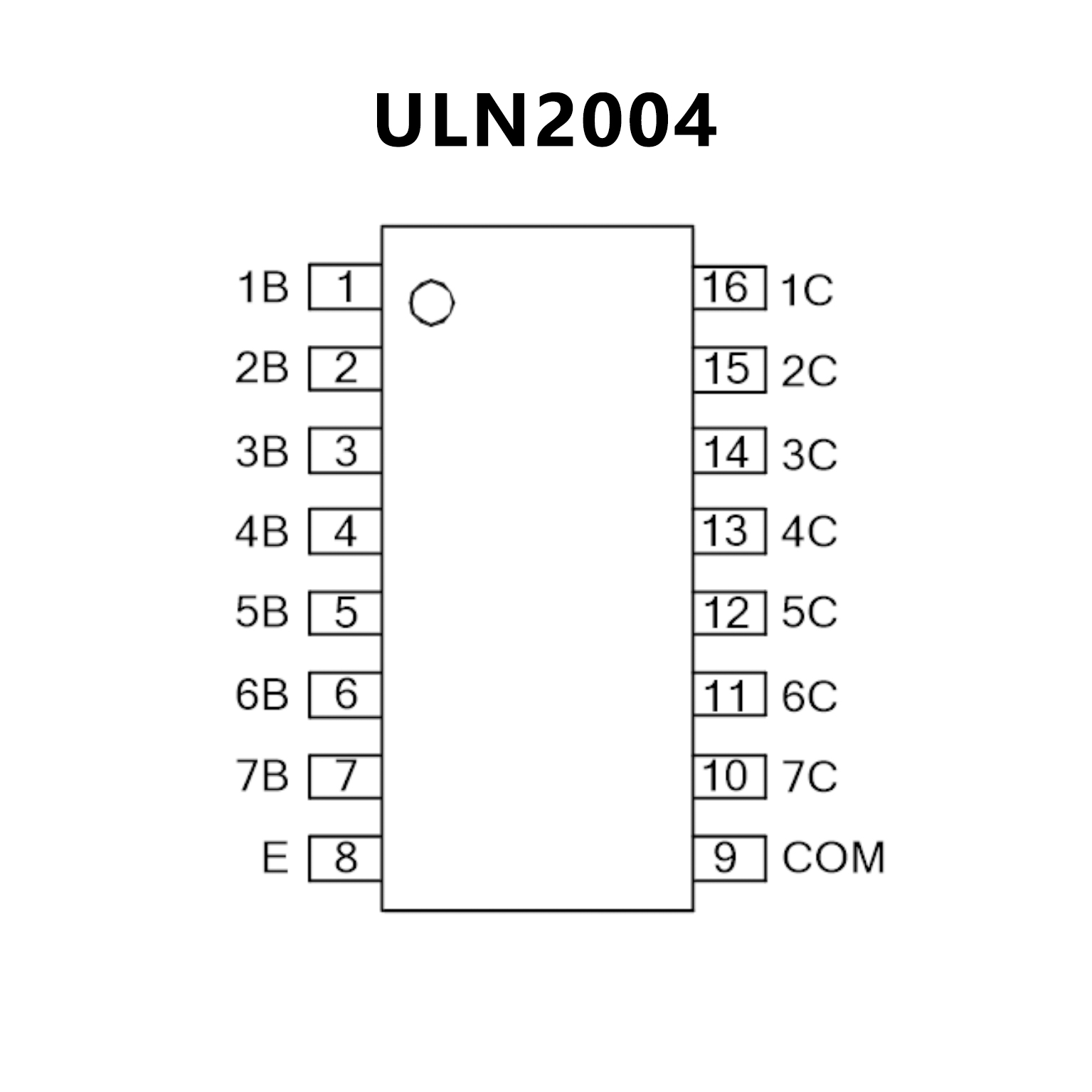

PIN CONFIGUTION
