Bidirectional, Low- and High-Side Voltage Output, Current-Sense Amplifiers, ZXCT181 P2P INA181.
ZXCT181
ZXCT181.pdf
ZXCT181.pdfFEATURES
? Supply Voltage Range: 2.7V to 5.5V
? Wide Common-Mode Range: -0.3V to 26V
? Gain Error: (Maximum over Temperature): ±1%
? Choice of Gains:
? Version A1: 20V/V
? Version A2: 50V/V
? Version A3: 100V/V
? Version A4: 200V/V
? Low Offset Voltage: Typical ±100μV and 1-μV/°C Drift
? Rail-to-Rail Output Capability
? Low Quiescent Current: 300μA (max)
? Package: 6-Pin SOT26
? ESD Protection JESD 22, 5000V HBM (A114)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

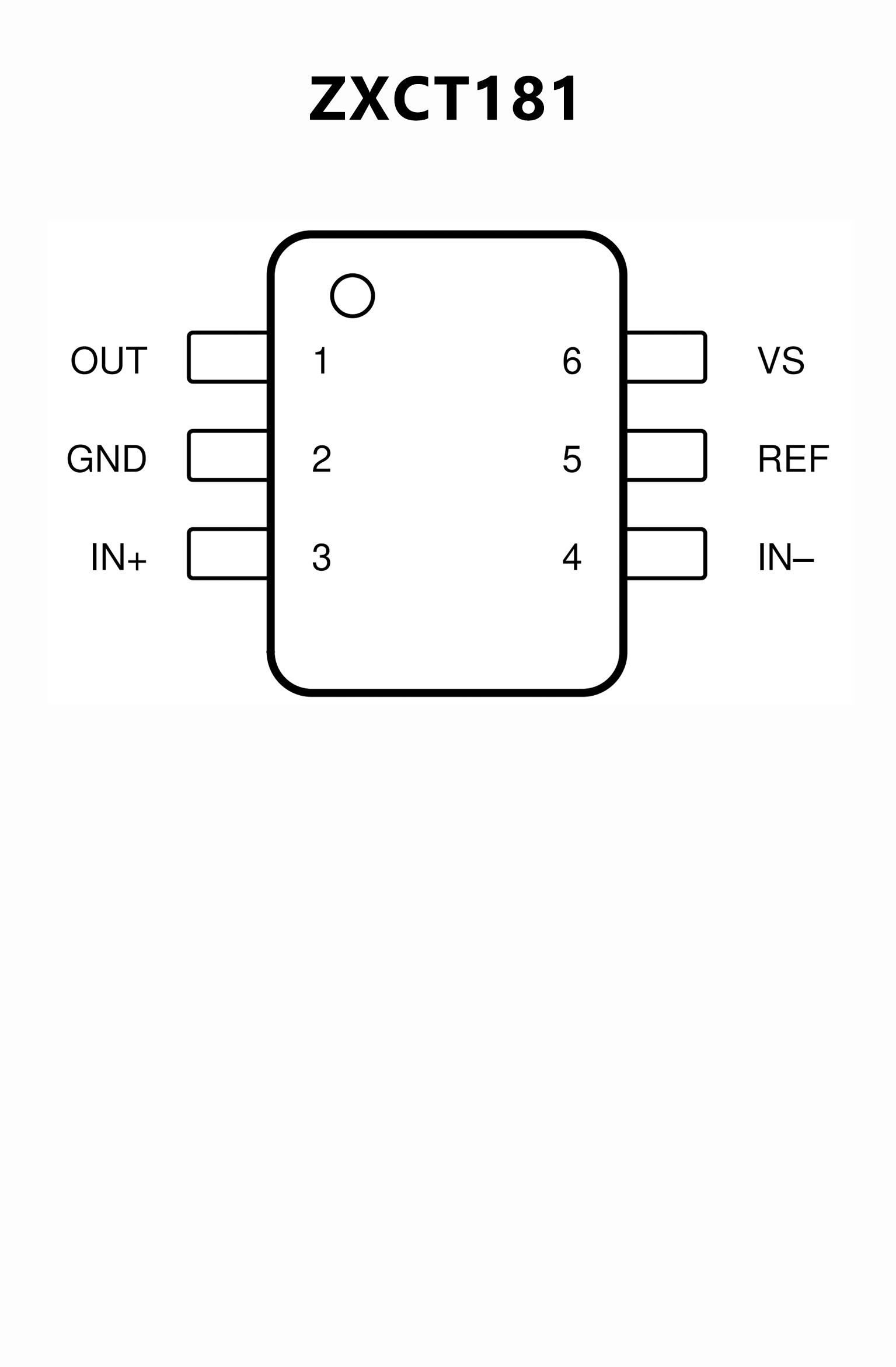

PIN CONFIGUTION
優勢替代
FEATURES
? Common-mode range (VCM): –0.2 V to +26 V
? High bandwidth: 350 kHz (A1 devices)
? Offset voltage:
– ±150 μV (maximum) at VCM = 0 V
– ±500 μV (maximum) at VCM = 12 V
? Output slew rate: 2 V/μs
? Bidirectional current-sensing capability
? Accuracy:
– ±1% gain error (maximum)
– 1-μV/°C offset drift (maximum)
? Gain options:
– 20 V/V (A1 devices)
– 50 V/V (A2 devices)
– 100 V/V (A3 devices)
– 200 V/V (A4 devices)
? Quiescent current: 260 μA maximum (INA181)

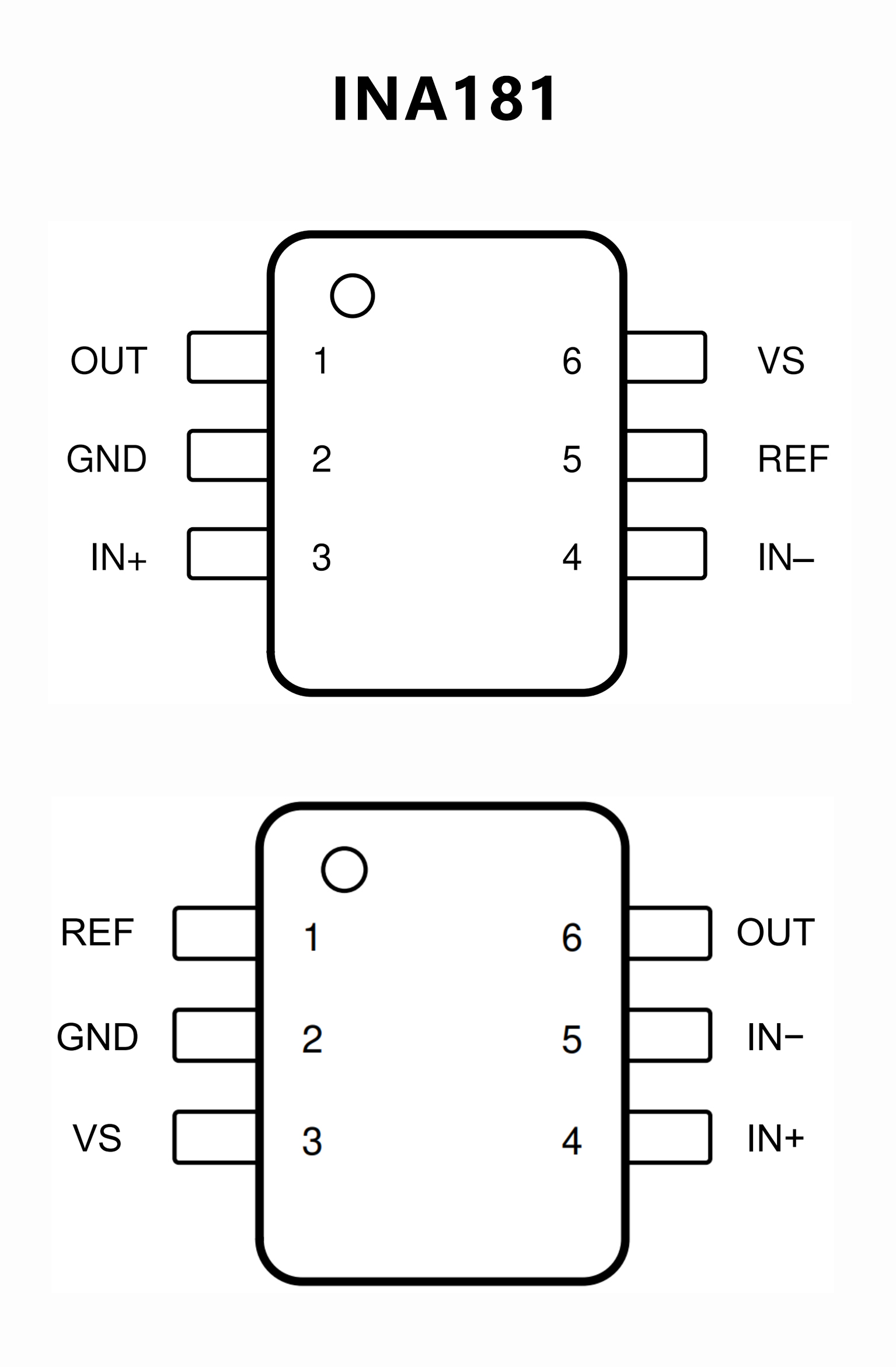

PIN CONFIGUTION
