26V, Bidirectional, Zero-Drift, Low- or High-Side, Voltage-Output, Current-Shunt Monitor, ZXCT199 P2P INA199.
ZXCT199
ZXCT199.pdf
ZXCT199.pdfFEATURES
? Supply Voltage Range: 2.7V to 26V
? Wide Common-Mode Range: -0.1V to 26V
? Gain Error: (Maximum Overtemperature)
? A and B Version: ±1.0%
? C Version: ±0.8%
? Choice of Gains:
? ZXCT 199X1: 50V/V
? ZXCT 199X2: 100V/V
? ZXCT 199X3: 200V/V
? Low Offset Voltage
? A Version max ±150μV
? B Version max ±100μV
? C Version max ±80μV
? Zero-Drift Performance: 0.5μV/°C (max)
? Rail-to-Rail Output Capability
? Low Quiescent Current: 100μA (max)
? Package: 6-Pin SOT363
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An automotive-compliant part is available under separate
datasheet (ZXCT199Q)

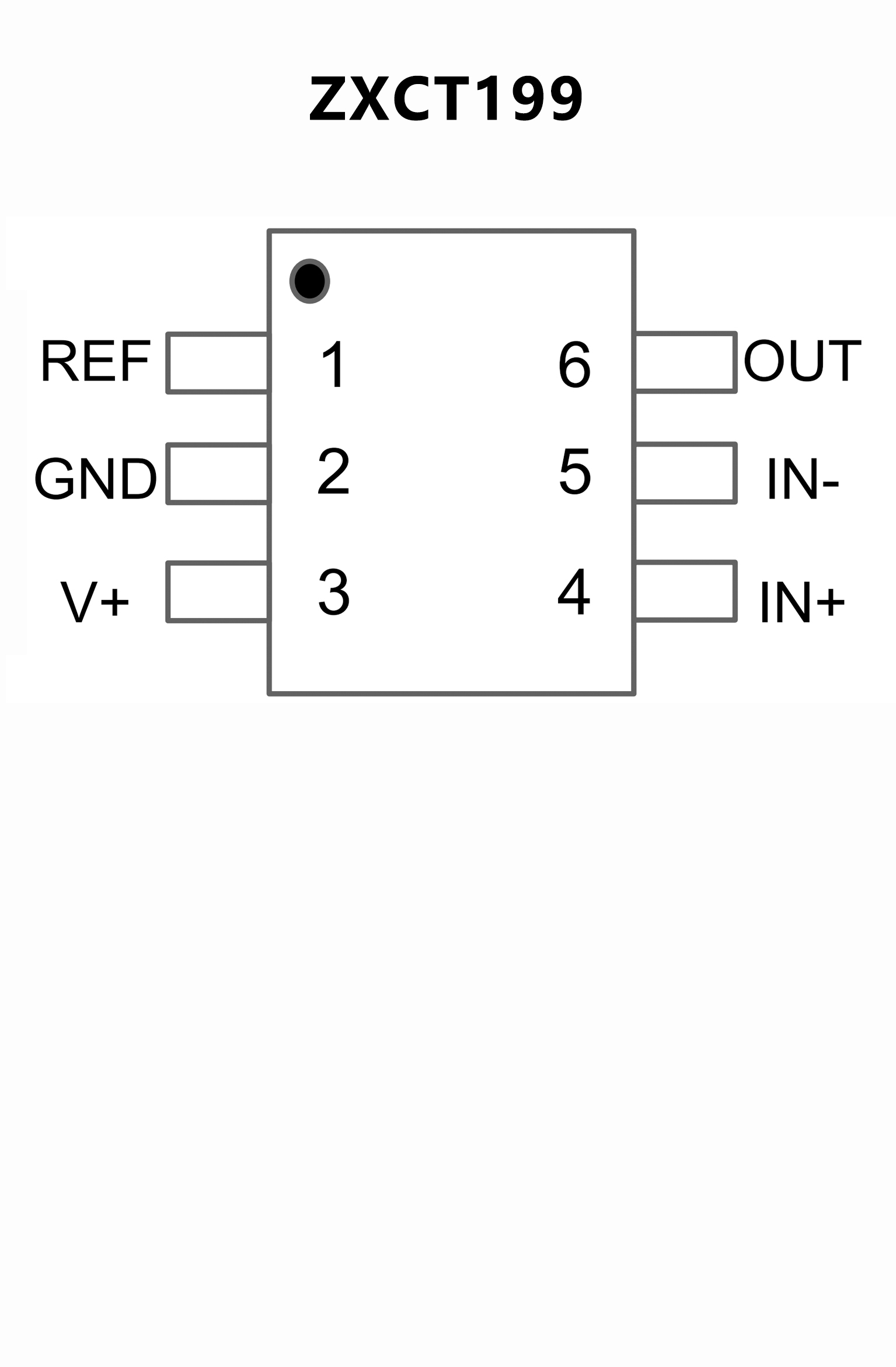

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Common-Mode Range: –0.3 V to 26 V
? Offset Voltage: ±150 μV (Maximum)
(Enables Shunt Drops of 10-mV Full-Scale)
? Accuracy:
– Gain Error (Maximum Over Temperature):
– ±1% (C Version)
– ±1.5% (A and B Versions)
– 0.5-μV/°C Offset Drift (Maximum)
– 10-ppm/°C Gain Drift (Maximum)
? Choice of Gains:
– INA199x1: 50 V/V
– INA199x2: 100 V/V
– INA199x3: 200 V/V
? Quiescent Current: 100 μA (Maximum)
? Packages: 6-Pin SC70, 10-Pin UQFN
PIN CONFIGUTION
