26V, Zero-Drift, High-Precision Current Monitors, ZXCT213 Replace NCS213.
ZXCT213
ZXCT213.pdf
ZXCT213.pdfFEATURES
? Supply Voltage Range: 2.7V to 26V
? Temperature Range: -40°C to +125°C
? Wide Common-Mode Range: -0.3V to 26V
? Support Shunt Drops of 10mV Full-Scale
? Gain Error (Maximum Overtemperature)
? A and B Version: ±0.8%
? C Version: ±0.5%
? Low Offset Voltage: ±30μV (max)
? Quiescent Current: 100μA (max)
? Low Gain Error Drift: 10ppm/°C (max)
? Rail-to-Rail Output Capacity
? Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
? Package: 6-pin SOT363 and 10-pin U-QFN1418-10
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

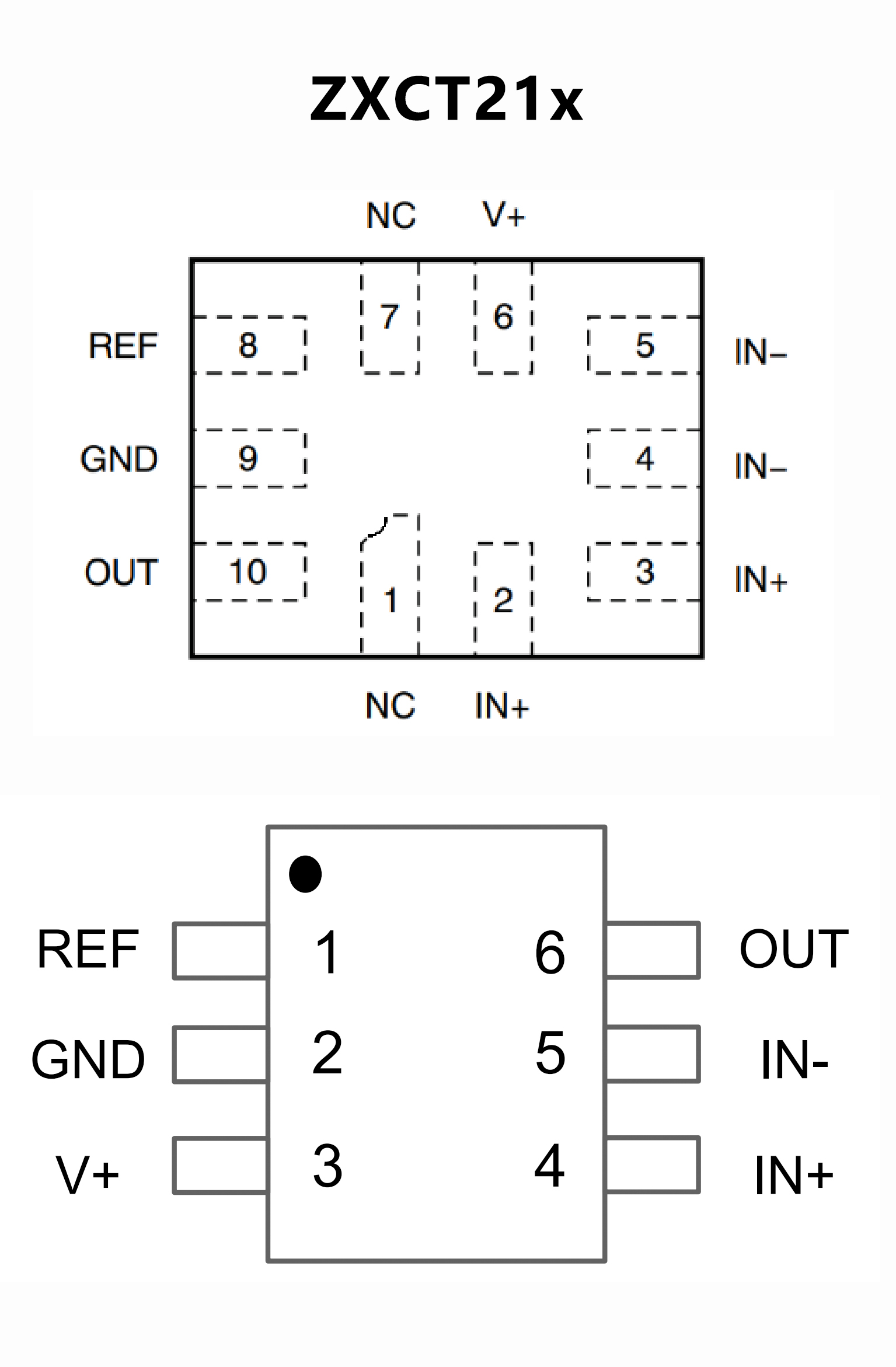

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Common Mode Input Range: ?0.3 V to 26 V
? Supply Voltage Range: 2.2 V to 26 V
? Low Offset Voltage: ±35 V max
? Low Offset Drift: ±0.5 V/°C
? Low Gain Error: ±1% max
? Low Gain Error Drift: ±10 ppm/°C max
? Rail?to?Rail Output Capability
? Low Current Consumption: 40 A typ, 80 A max
? NCV Prefix for Automotive and Other Applications
Requiring Unique Site Qualified and PPAP Capable

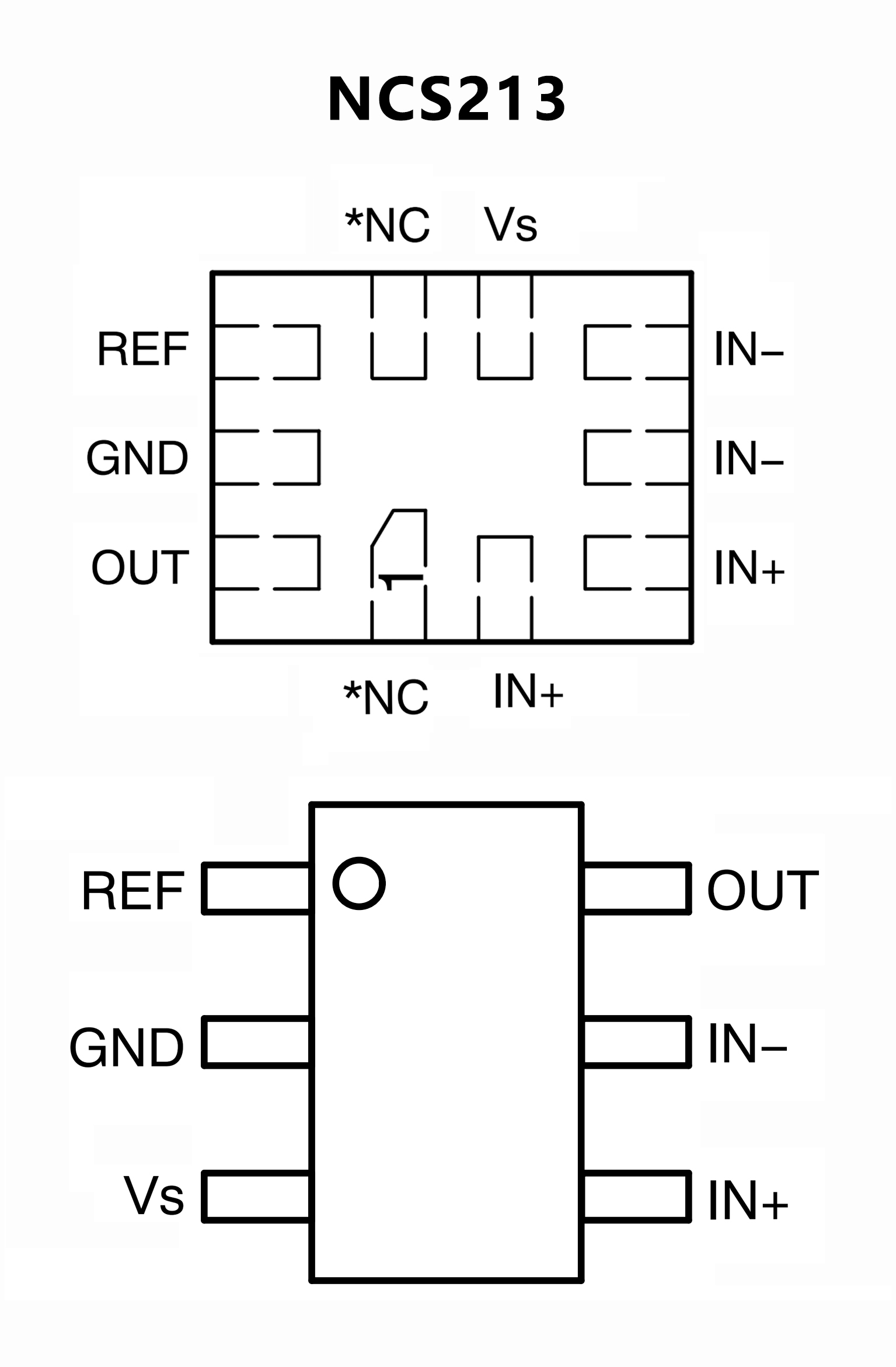

PIN CONFIGUTION
