AS1310EPT.pdf
No.10533
? High Efficiency：Up to 95%
? 1.5MHz Constant Switching Frequency
? 0.8A Available Load Current
? 2.5V to 6.5V Input Voltage Range
? Output Voltage as low as 0.6V
? 100% Duty Cycle In Dropout
? Current Mode Control
? Short Circuit Protection
? Over Temperature Protection
? <1μA Shutdown Current

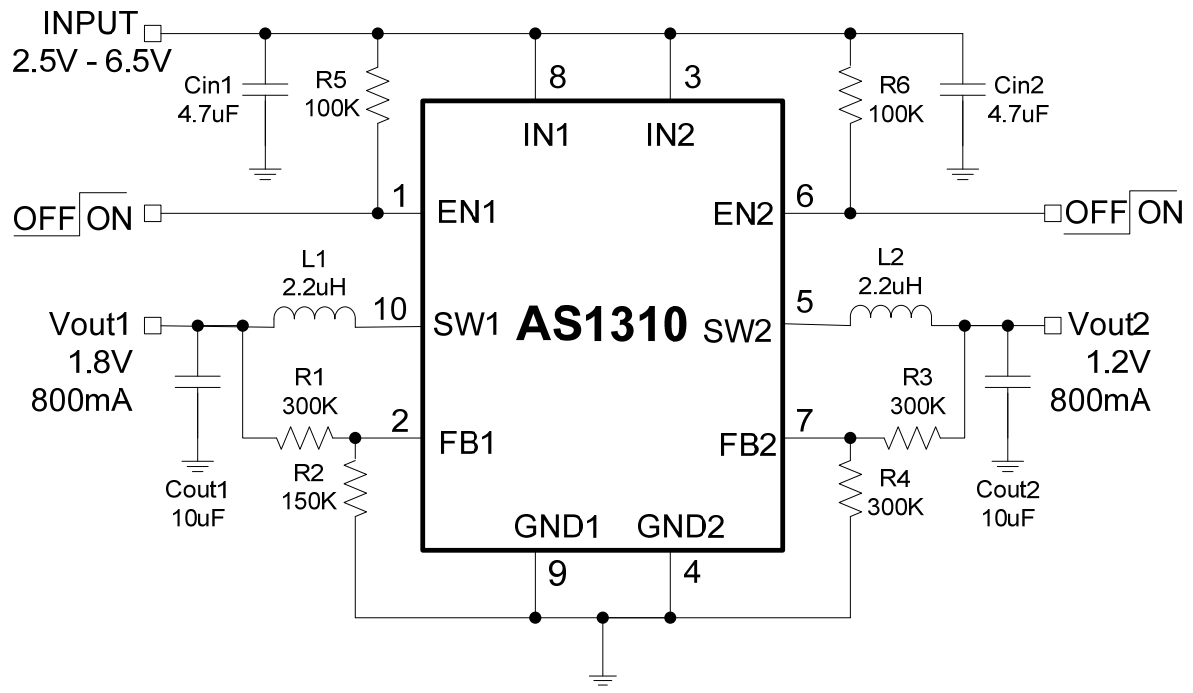

The AS1310 contains two independent 1.5MHz constant frequency current mode PWM step-down converters. Each converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The AS1310 is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. Each converter can supply 800mA of load current from a 2.5V to 6.5V input voltage. The output voltage for can be regulated as low as 0.6V.

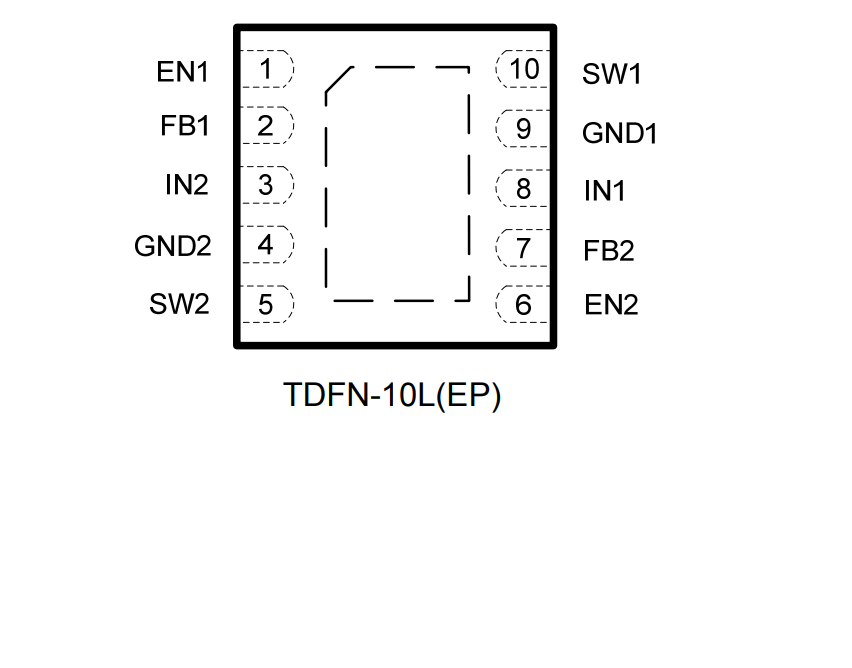

The AS1310 can also run at 100% duty cycle for low dropout applications. The AS1310 is available in a low profile (1mm) 10-pin, TDFN package.
