AZ1117CH-1.8TRG1.pdf
No.10535
? Current Limit: 1.35A (Typ)
? Output Noise from 10Hz to 10KHz: 0.003% of VOUT
? PSRR at IOUT = 300mA and f = 120Hz: 70dB
? Output Voltage Accuracy: ±1% (Except 1.2V Version)
? On-chip Thermal Shutdown
? Maximum Quiescent Current: IQMAX = 6mA
? Compatible with Low ESR Ceramic Capacitor
? Operation Junction Temperature: -20°C to +125°C

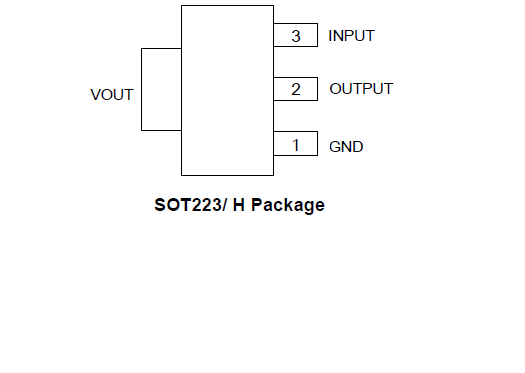

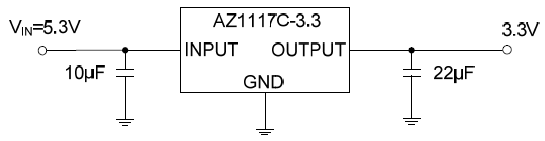

The AZ1117C is a low dropout three-terminal regulator. The AZ1117C has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1%. Onchip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature. The AZ1117C is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V fixed output voltage versions.
