NPN Pre-Biased Small Signal Surface Mount Transistor
DDTC143EE-7-F
DDTC143EE-7-F.pdf
DDTC143EE-7-F.pdf
No.10545
FEATURES
? Epitaxial Planar Die Construction
? Complementary PNP Types Available (DDTA)
? Built-In Biasing Resistors, R1 = R2
DESCRIPTION
? NPN Pre-Biased Small Signal Surface Mount Transistor
? Case: SOT523

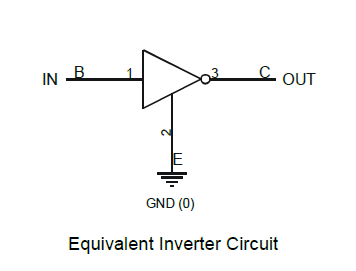

APPLICATION CIRCUIT

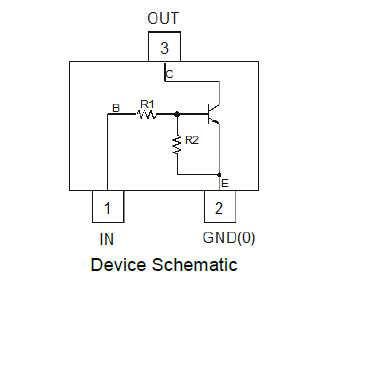

PIN CONFIGUTION
