P-Channel Enhancement Mode MOSFET with Integrated SBR
DMS2120LFWB-7
DMS2120LFWB-7.pdf
DMS2120LFWB-7.pdf
No.10553
FEATURES
? Low On-Resistance
? 95mΩ @VGS = -4.5V
? 120mΩ @VGS = -2.5V
? 150mΩ (typ) @VGS = -1.8V
? Low Gate Threshold Voltage, -1.3V Max
? Fast Switching Speed
? Low Input/Output Leakage
? Incorporates Low VF Super Barrier Rectifier (SBR)
? Low Profile, 0.5mm Max Height
DESCRIPTION
? Case: DFN3020B-8
? Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020D

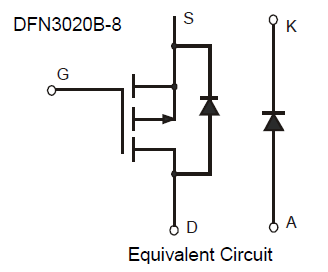

? Terminal Connections: See Diagram
APPLICATION CIRCUIT
PIN CONFIGUTION
