60V PNP Small Signal Transistor in SOT523.
MMBT2907AT-7-F
MMBT2907AT-7-F.pdf
MMBT2907AT-7-F.pdf
No.10570
FEATURES
? BVCEO > -60V
? IC = -600mA Collector Current
? Epitaxial Planar Die Construction
? Ultra-Small Surface Mount Package
? Complementary NPN Type: MMBT2222AT
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
DESCRIPTION
Mechanical Data：
? Case: SOT523
? Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
? Weight: 0.002 grams (Approximate)
APPLICATION CIRCUIT

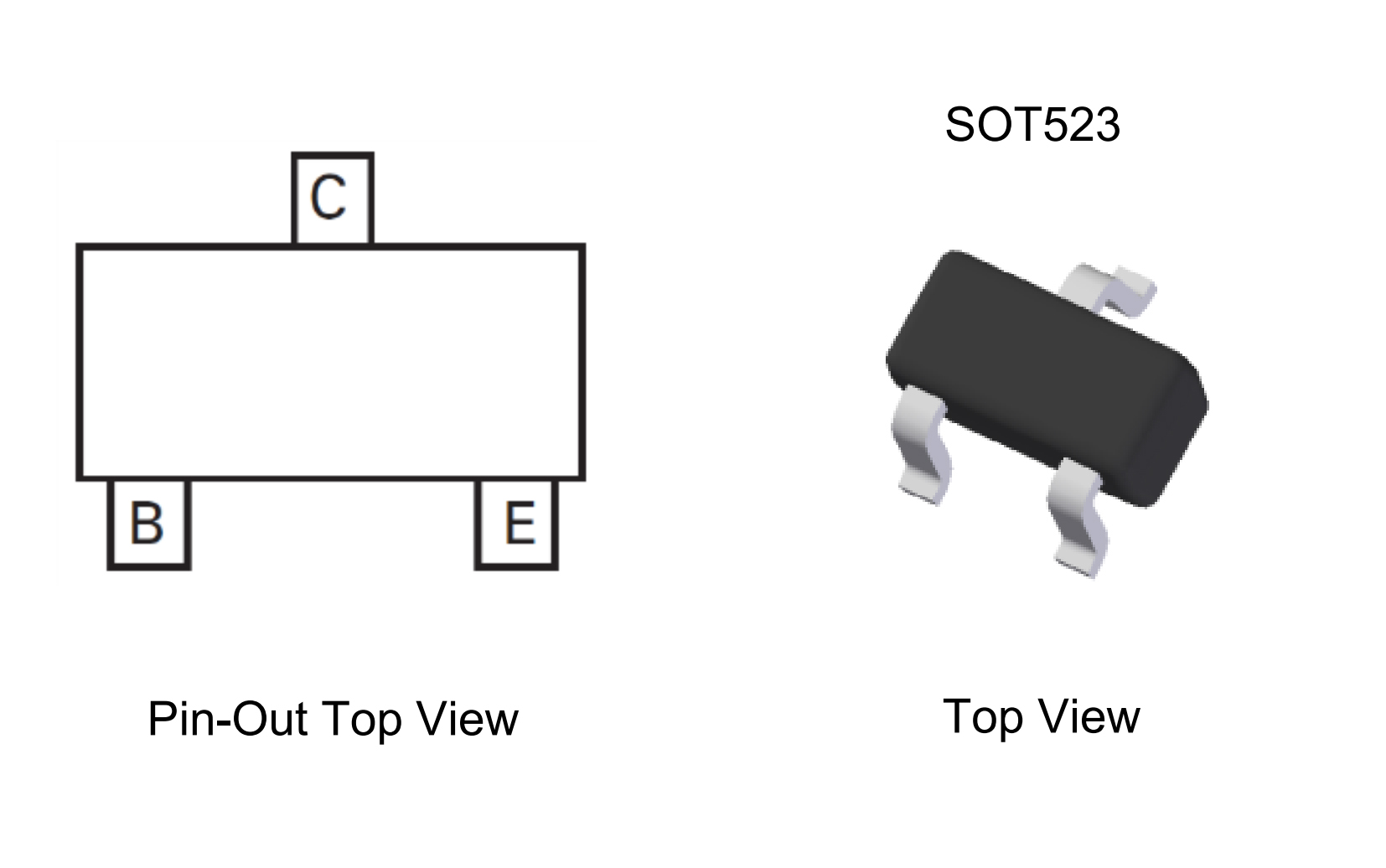

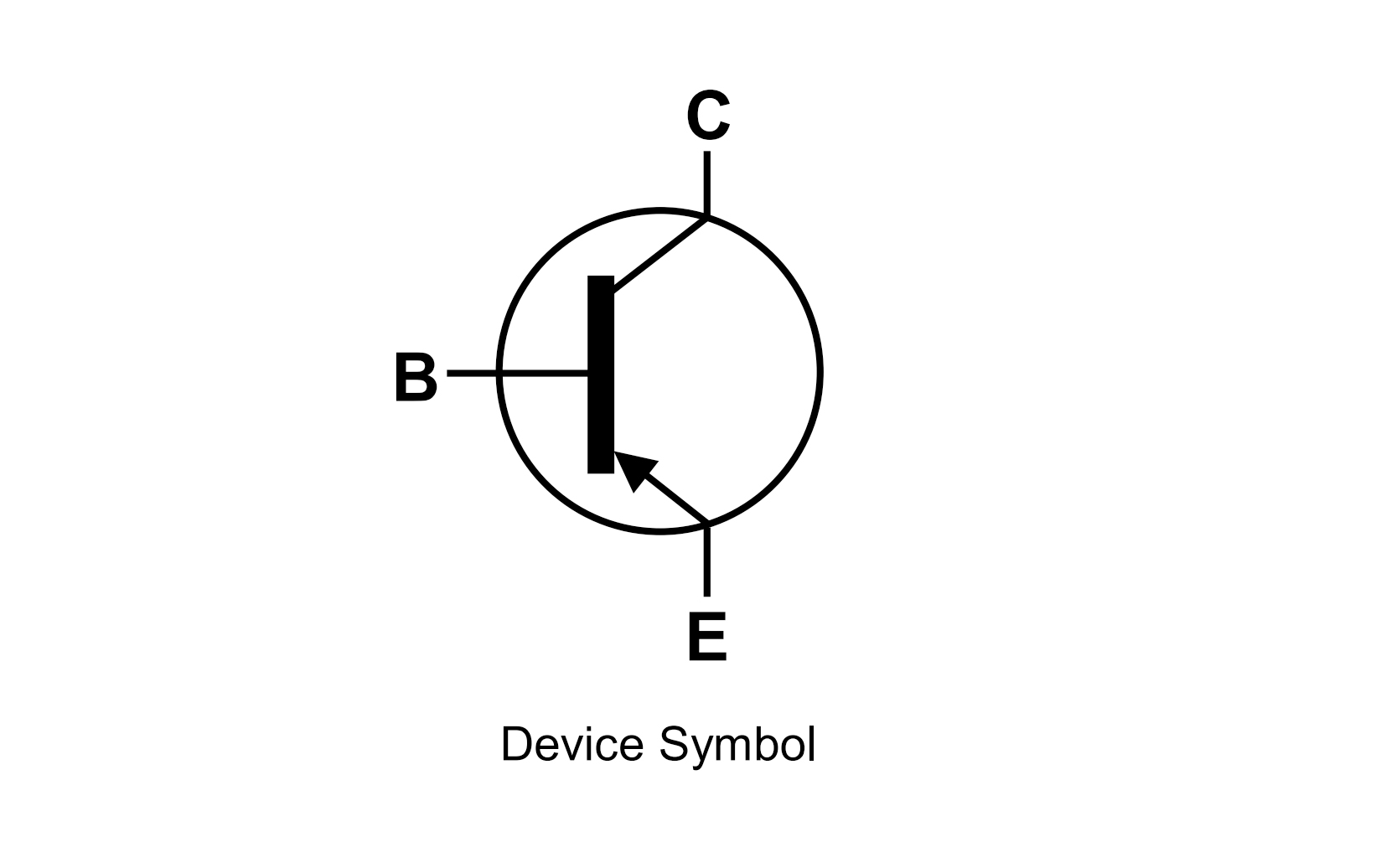

PIN CONFIGUTION
