N&P-Channel Enhancement Mode MOSFET
PE601CA-U
PE601CA-U.pdf
PE601CA-U.pdf
No.10591
FEATURES
? N-Channe:
V(BR)DSS: -30V
RDS(ON): 22mΩ @VGS = 10V
ID: 20A
? P-Channe:
V(BR)DSS: -30V
RDS(ON): 28mΩ @VGS = -10V
ID: -19A
DESCRIPTION
? N&P-Channel Enhancement Mode MOSFET

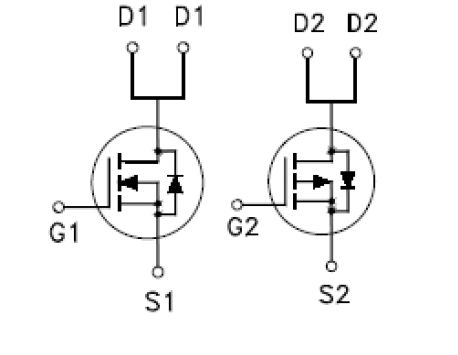

APPLICATION CIRCUIT

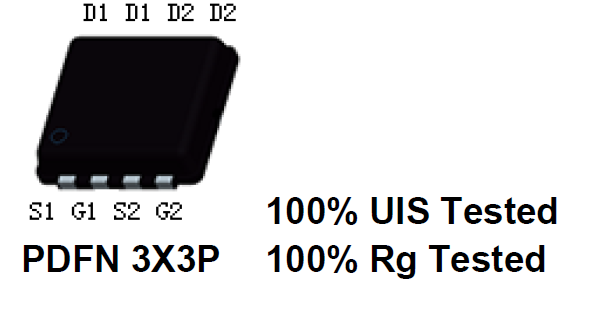

PIN CONFIGUTION
