10A SBR? Super Barrier Rectifier
SBR10045P5-13
SBR10045P5-13.pdf
SBR10045P5-13.pdf
No.10602
FEATURES
? Ultra low forward voltage drop (VF) helps minimize power losses
? Excellent reverse leakage (IR) stability at higher temperatures
? Thermally efficient package for cooler running applications
? Less than 1.1mm package profile ideal for thin applications
DESCRIPTION

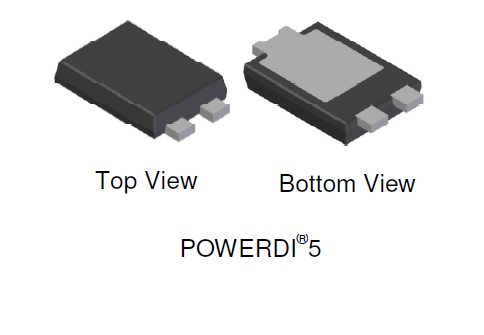

Packaged in the compact thermally efficient POWERDI?5 package, the SBR10045P5 provides ultra-low, forward-voltage drop (VF) and excellent low reverse leakage stability at high temperatures. It is ideal for use as a rectification, freewheeling or polarity protection diode in applications such as:
? >10W AC-DC Adaptors/Chargers
? DC-DC Converters
APPLICATION CIRCUIT

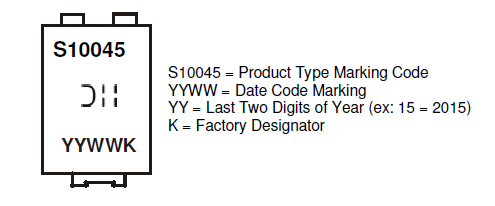

PIN CONFIGUTION
