5.0A Surface Mount Schottky Barrier Rectifier
B540C-13-F
B540C-13-F.pdf
B540C-13-F.pdf
No.11078
FEATURES
● Guard Ring Die Construction for Transient Protection
● Ideally Suited for Automated Assembly
● Low Power Loss, High Efficiency
● For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling,
and Polarity Protection Application
DESCRIPTION
This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as a:
● Polarity Protection Diode
● Re-Circulating Diode
● Switching Diode
APPLICATION CIRCUIT

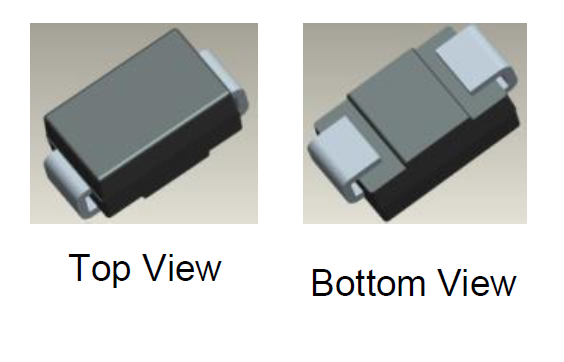

PIN CONFIGUTION
