Surface Mounted Low Leakage Diode.
BAV170T
BAV170T.pdf
BAV170T.pdf
No.13524
FEATURES
? Ultra-Small Surface Mount Package
? Very Low Leakage Current
DESCRIPTION
Mechanical Data:
? Case: SOT-523
? Case Material: Molded Plastic, “Green”Molding Compound.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020D
? Terminals: Solderable per MIL-STD-202, Method 208
? Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
? Polarity: See Diagrams Below

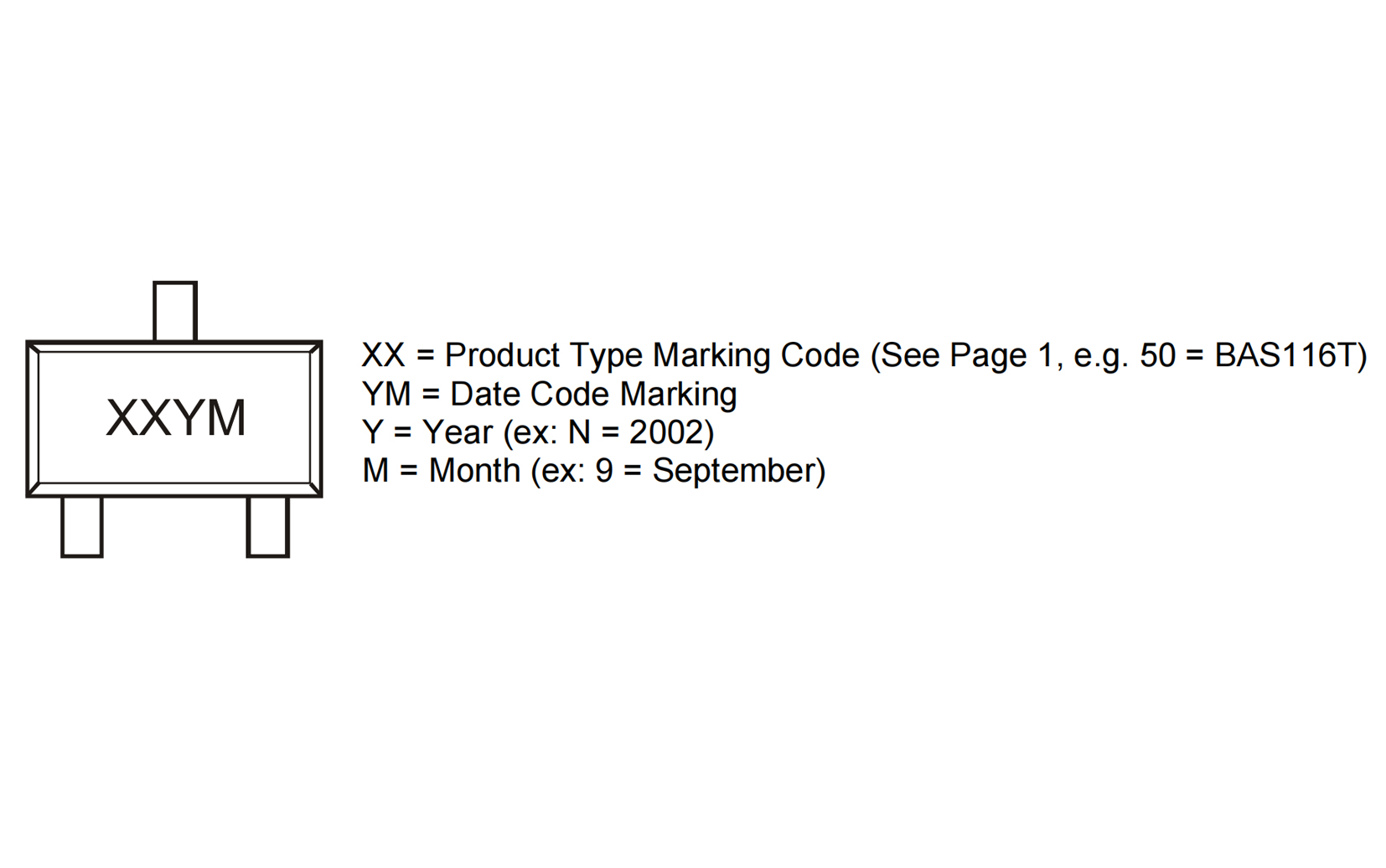

? Marking Information: See Diagrams Below and Page 3
? Ordering Information: See Page 2
? Weight: 0.002 grams (approximate)
APPLICATION CIRCUIT

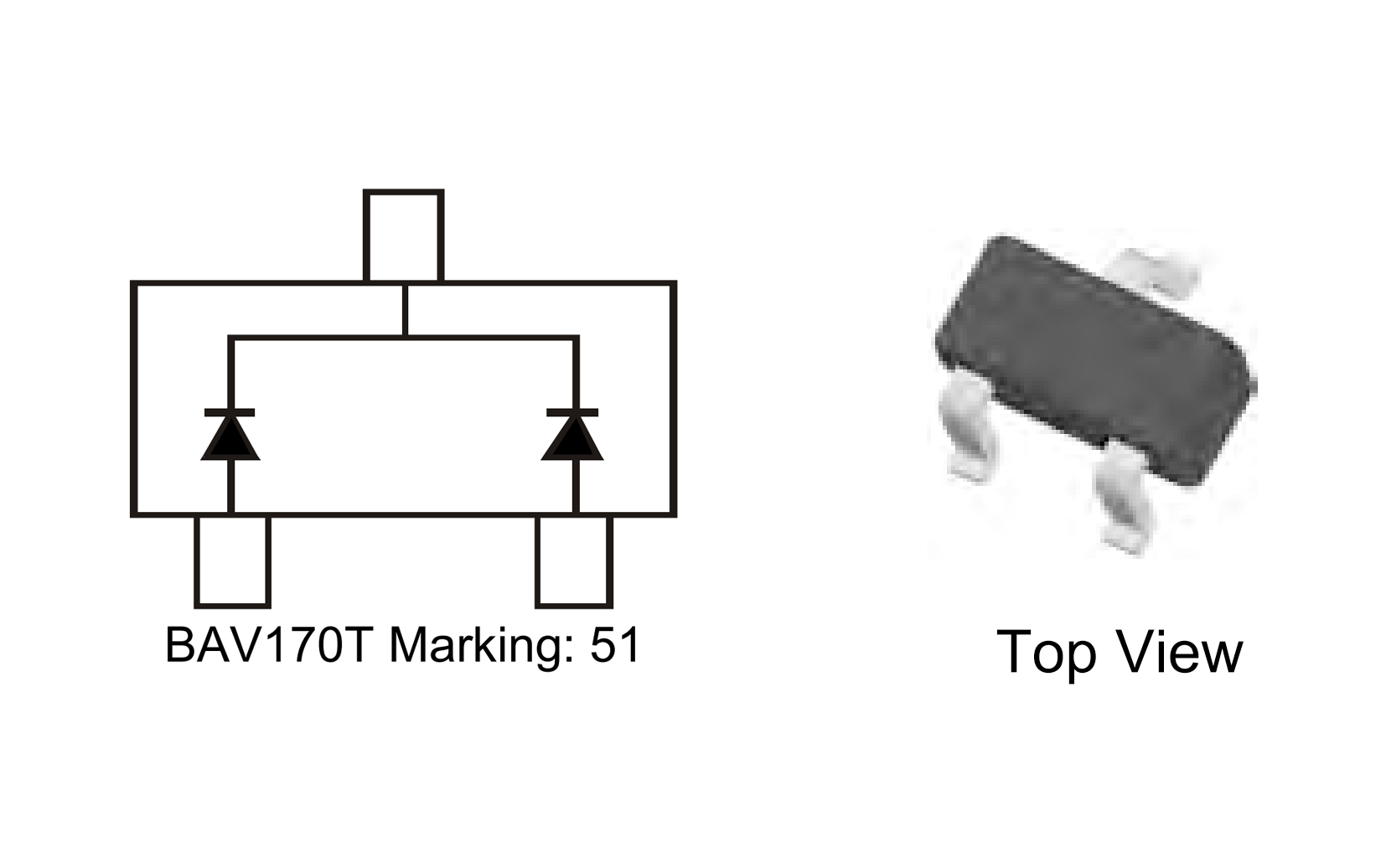

PIN CONFIGUTION
