N-Channel Enhanced MOSFET.
DMG3420U-7
DMG3420U-7.pdf
DMG3420U-7.pdf
No.13527
FEATURES
? Low On-Resistance
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
DESCRIPTION
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Mechanical Data
? Case: SOT23
? Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish ? Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
? Terminals Connections: See Diagram Below
? Weight: 0.008 grams (Approximate)

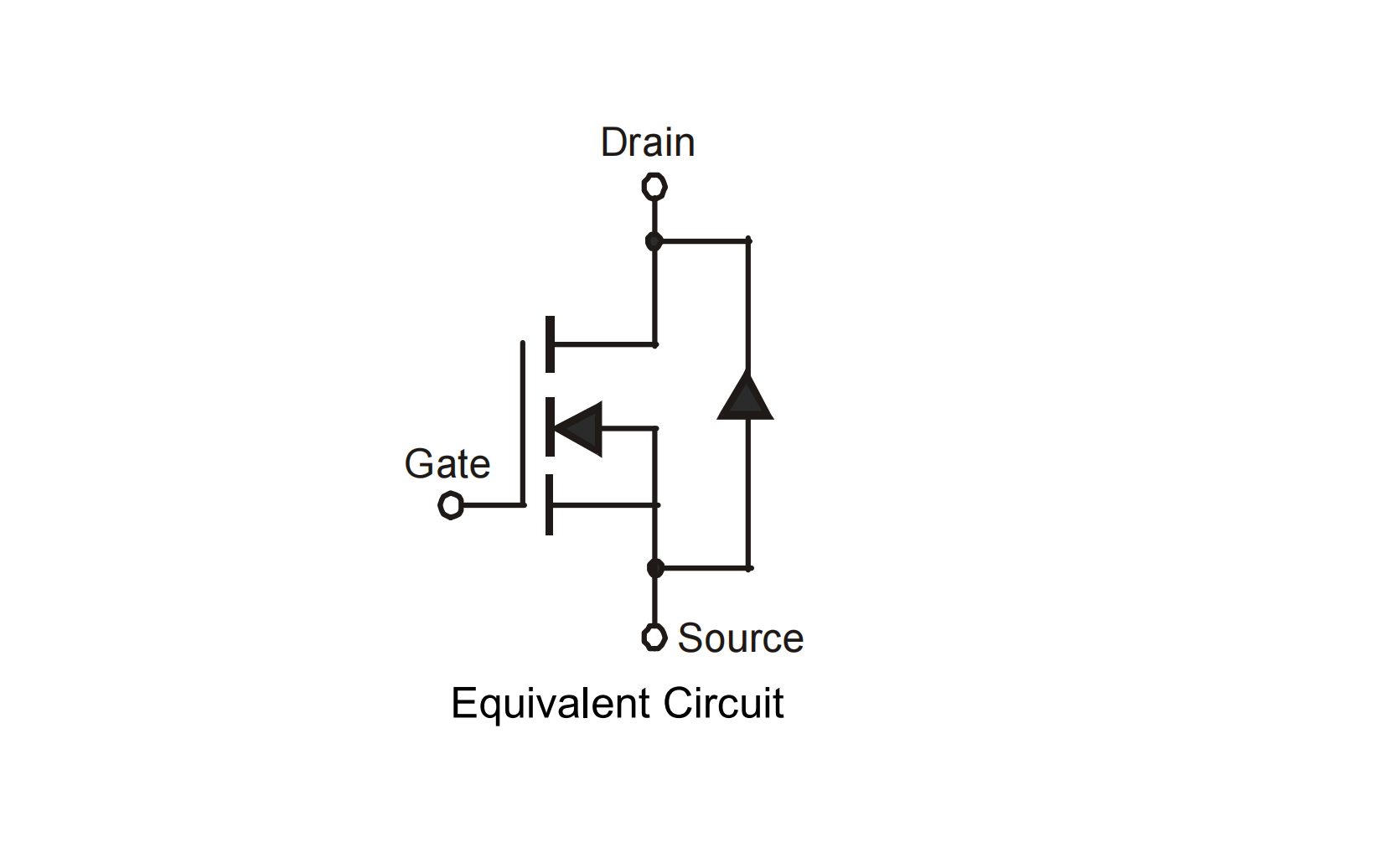

APPLICATION CIRCUIT

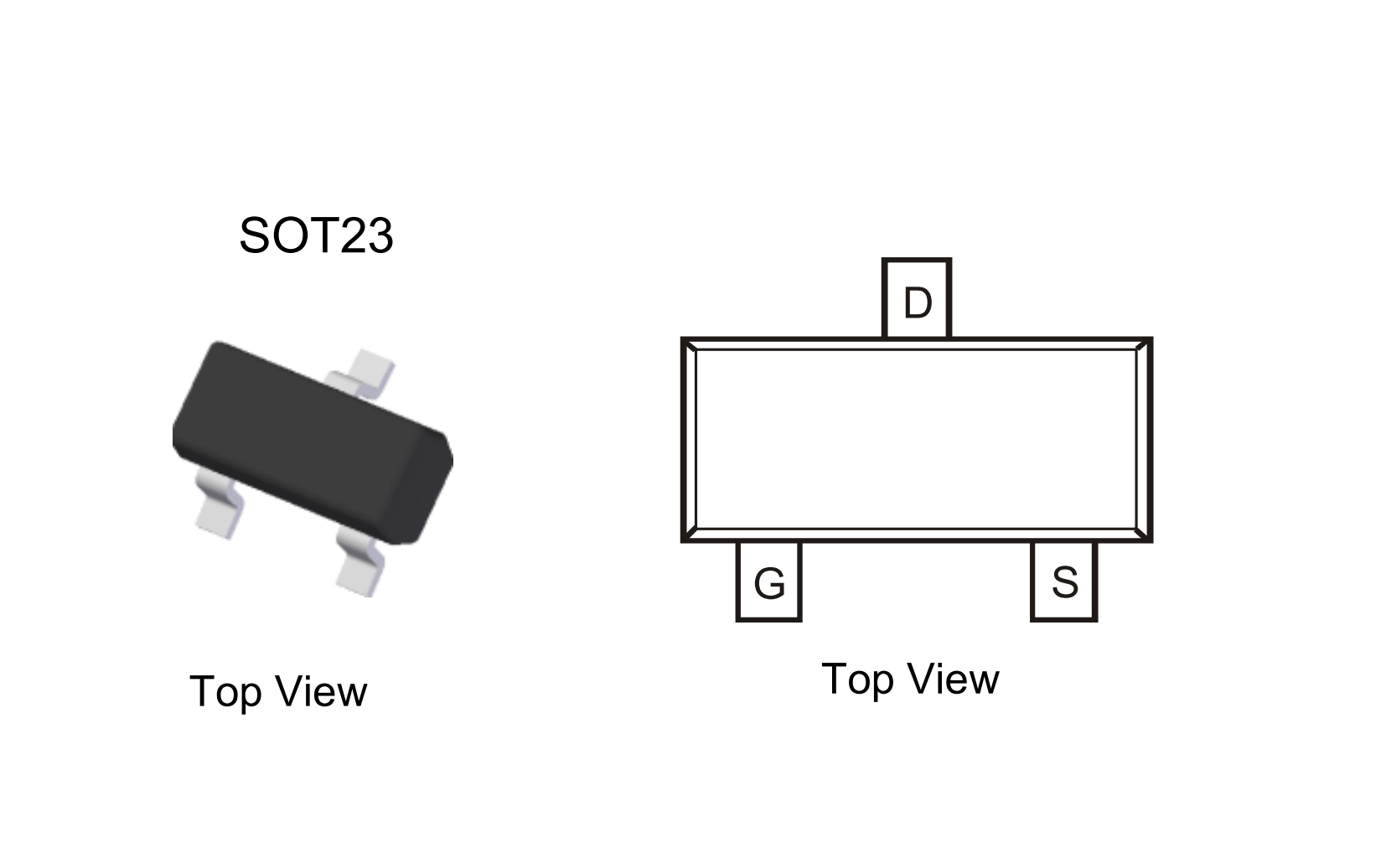

PIN CONFIGUTION
