SGM4548/49/50.pdf
No.11045
? Wide Power Supply Voltage Range
? Improved Response Times
? Matched Rise Time and Fall Time
? Independent Enable Control for Each Channel
? Reduced Clock Skew between Dual Channels
? Improved Clocking Rate
? Low Supply Current and Output Impedance
? Output is at Low under UVLO Protection,
ENx Pin Floating or Disable Status
? High Noise Immunity
? -40℃ to +125℃ Operating Temperature Range

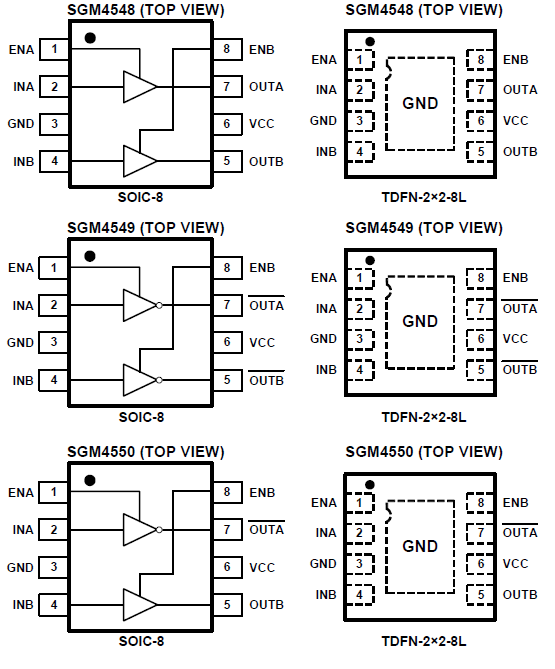

? Available in Green SOIC-8 and TDFN-2×2-8L Packages

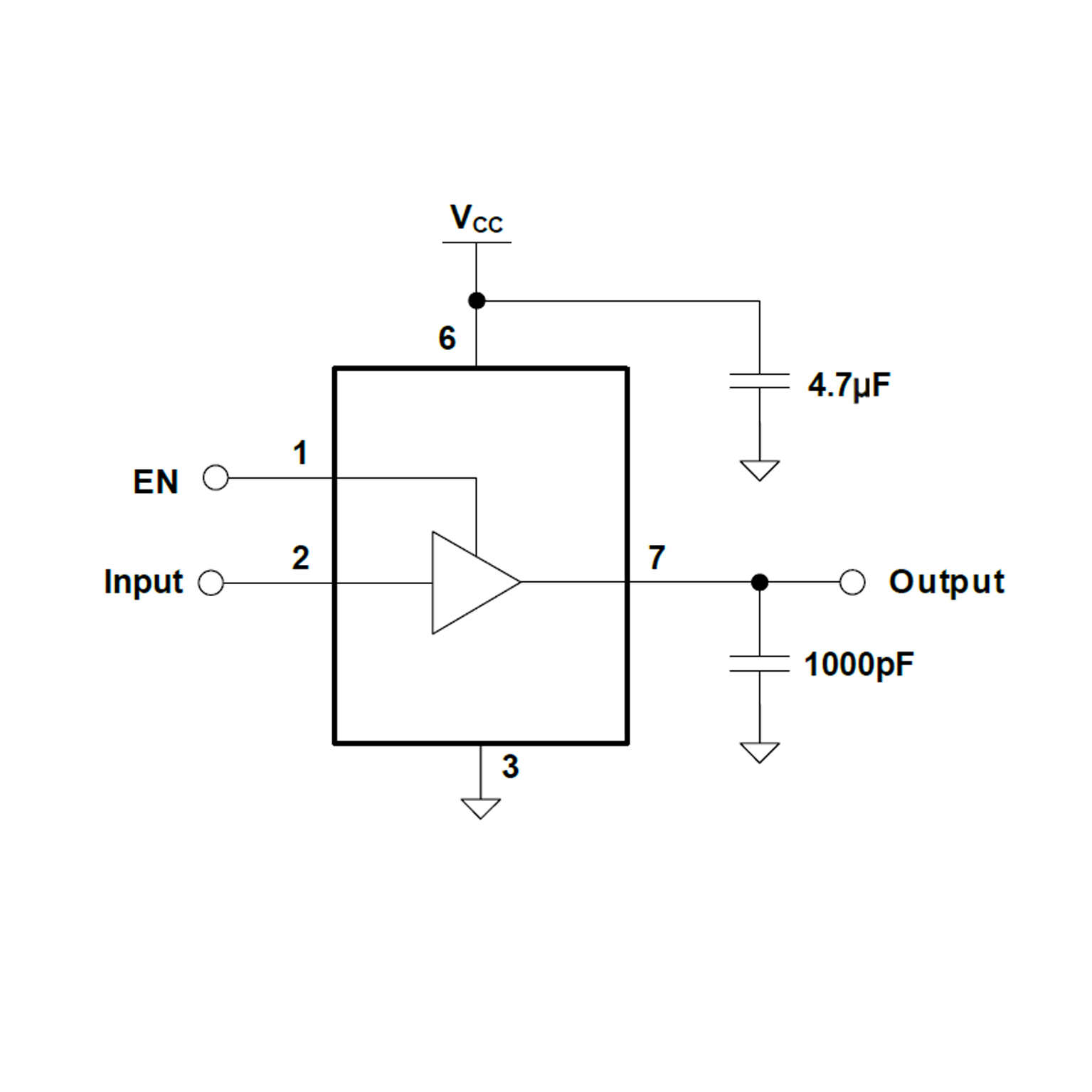

The SGM4548/49/50 devices are matched dual- channel level shifters and drivers. The unique circuit design provides excellent performance for delivering 2A peak current to highly capacitive loads.
To reduce problems with time and clock skew, SGM4548/49/50 are good options, with matching delays and maintaining integrity of input to output pulse-widths. Matching rise/fall delay times also improve the drive capability and speed. Non-overlapping drive technology is used to minimize the dynamic switching loss.
The SGM4548/49/50 are available in Green SOIC-8 and TDFN-2×2-8L packages. They operate over an ambient temperature range of -40℃ to +125℃.
