No.11057
? Power Supply Voltage Ranges (VCCA ≤ VCCB)
A Ports: 1.65V to 5.5V
B Ports: 2.3V to 5.5V
? Direction-Control Signal is Not Required
? Data Rates
Push-Pull: 24Mbps
Open-Drain: 2Mbps
? Support VCCA or VCCB Isolation
When VCCA or VCCB is Low, Device Enters Power-Down Mode
? No Specific Power Sequences Required for VCCA and VCCB
? Support Power-Down Mode
? -40℃ to +85℃ Operating Temperature Range

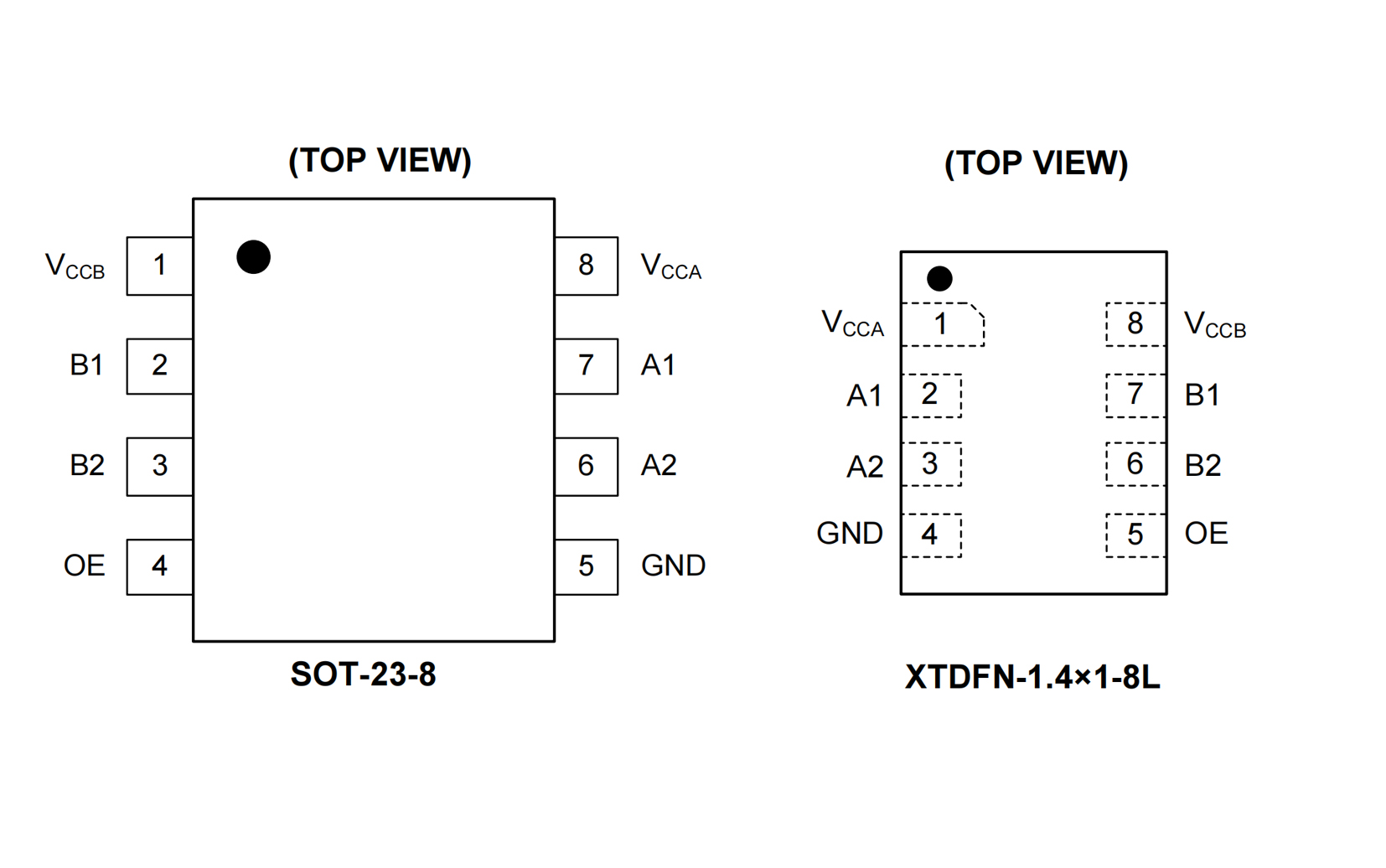

? Available in Green XTDFN-1.4×1-8L and SOT-23-8 Packages

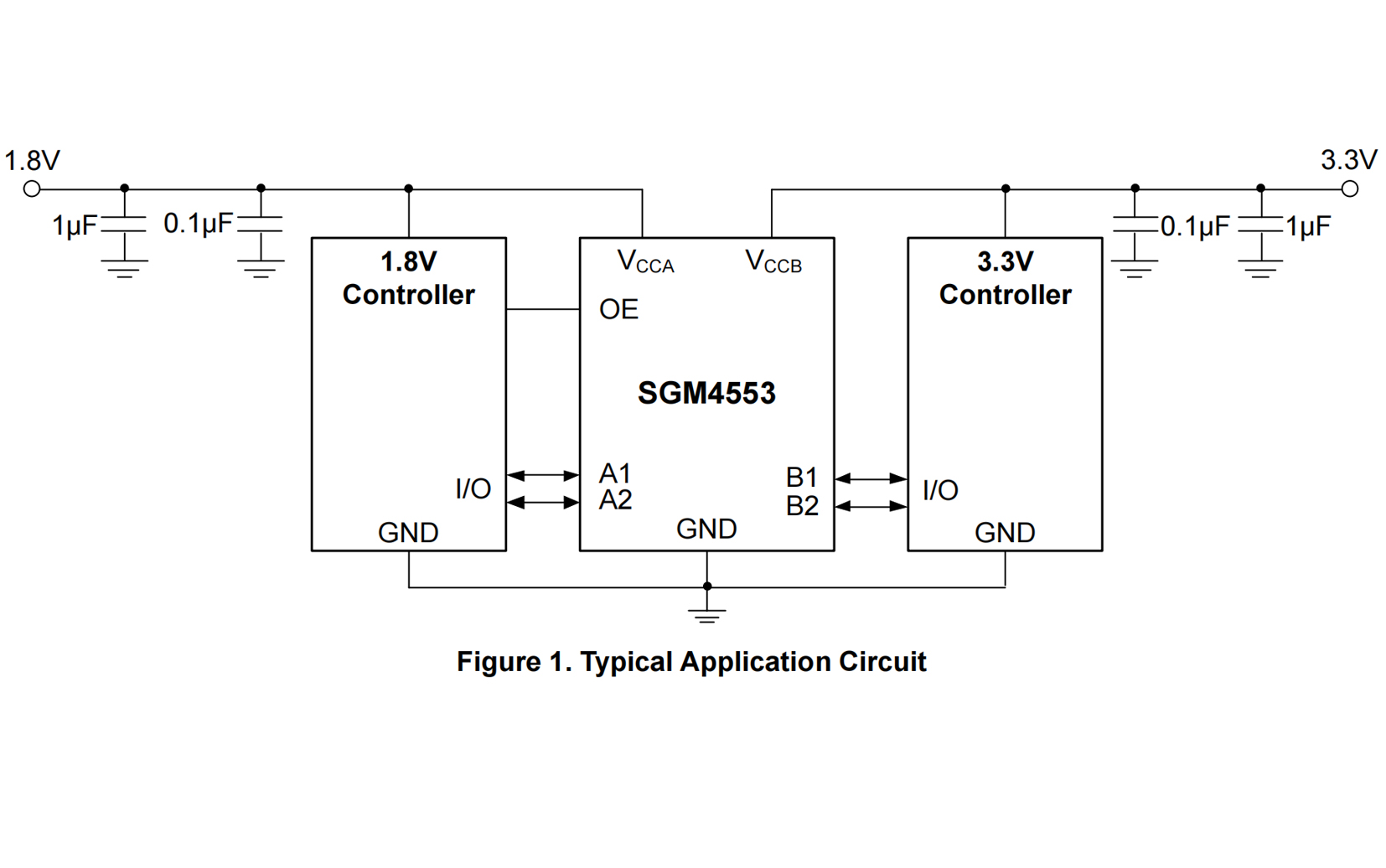

The SGM4553 is a 2-bit, non-inverting, bidirectional voltage-level translator which features two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.65V to 5.5V for A ports and 2.3V to 5.5V for B ports. The device provides a bidirectional translation function between the different voltage nodes (including 1.8V, 2.5V, 3.3V and 5V).
The SGM4553 has an output enable (OE) function, which controls the inputs and outputs states. When OE goes low, all I/Os enter into the high-impedance state. It is beneficial for reducing quiescent current consumption.When VCCA is powered, OE has an internal pull-down current source.
The SGM4553 is available in Green SOT-23-8 and XTDFN-1.4×1-8L packages. It operates over an ambient temperature range of -40℃ to +85℃.
