SGM9153.pdf
No.11181
? 2.5V to 4.0V Operating Voltage Range
? Capless Output Coupling
? 6dB Gain
? Internal 75Ω Driver Circuit
? Internal 6th-Order 82MHz LPF
? Power Save Circuit and 1.8V Logical Control
? Quiescent Current: 36mA

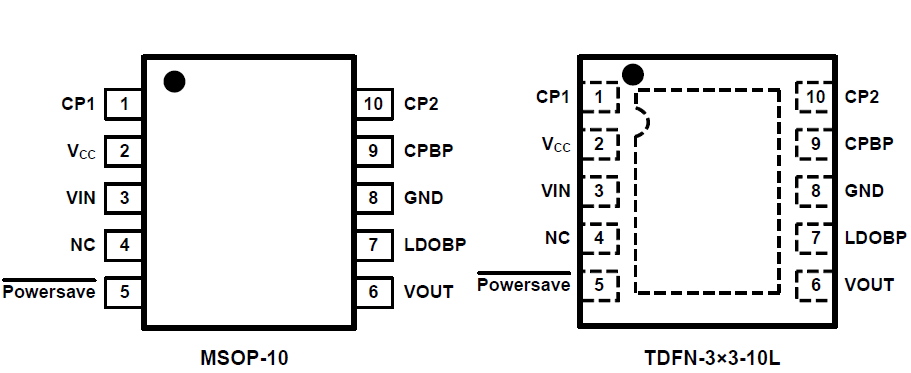

? Available in Green MSOP-10 and TDFN-3×3-10L Packages
? -40℃ to +125℃ Operating Temperature Range

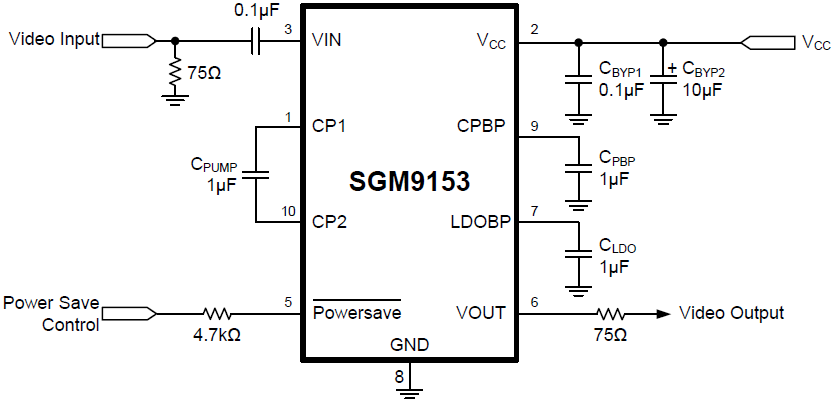

The SGM9153 is a low voltage, high speed video driver with 6th-order LPF circuit. With the internal negative charge pump circuit, output coupling capacitor is unnecessary. The SGM9153 features low power and small package. It is suitable for low power design on downsizing of portable video system and system with video output.
The SGM9153 is available in Green MSOP-10 and TDFN-3×3-10L packages. It operates over an ambient temperature range of -40℃ to +125℃.
