SGM9152.pdf
No.11182
? 6dB Gain for 1080p High Definition Mode
? Bias Mode Active with AC-Coupled Input
? Bias Mode Inactive with DC-Coupled Input
? AC- or DC-Coupled Output
? DC-Coupled Output Eliminates AC Coupling Capacitor

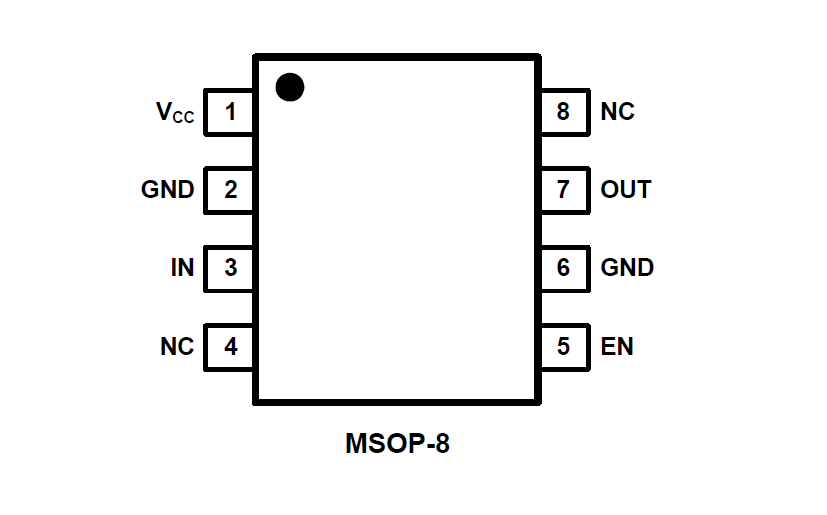

? Available in Green MSOP-8 Package
? -40℃ to +85℃ Operating Temperature Range

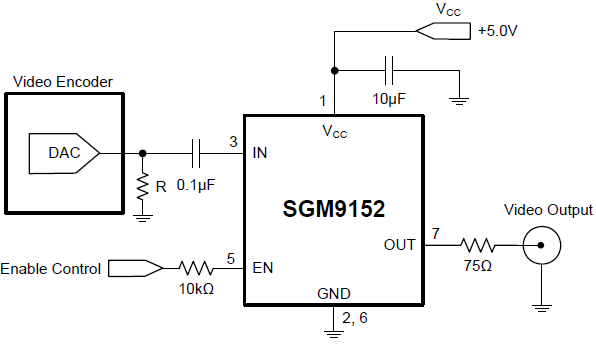

The SGM9152 video filter is intended to replace passive LC filters and drivers with an integrated device. The 6th-order channel offers High Definition (HDp) filter. The SGM9152 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal bias circuitry provides constant bias voltage for AC-coupled input. The output can be AC- or DC-coupled. DC coupling the output removes the need for large output coupling capacitors.
The SGM9152 is available in Green MSOP-8 package. It operates over an ambient temperature range of -40℃ to +85℃.
