No.11183
? Three Fixed 6th-Order Filters for 1080p High Definition Mode
? One 6th-Order Standard Definition Filter
? Independent Shutdown Control to Save Power
? Clamp Mode on SD Channel Input
? Bias Mode on HD Channel Input
? Bias Mode Active with AC-Coupled Inputs for HD Video
? Bias Mode Inactive with DC-Coupled Inputs for HD Video
? AC- or DC-Coupled Outputs
? DC-Coupled Output Eliminates AC Coupling Capacitor

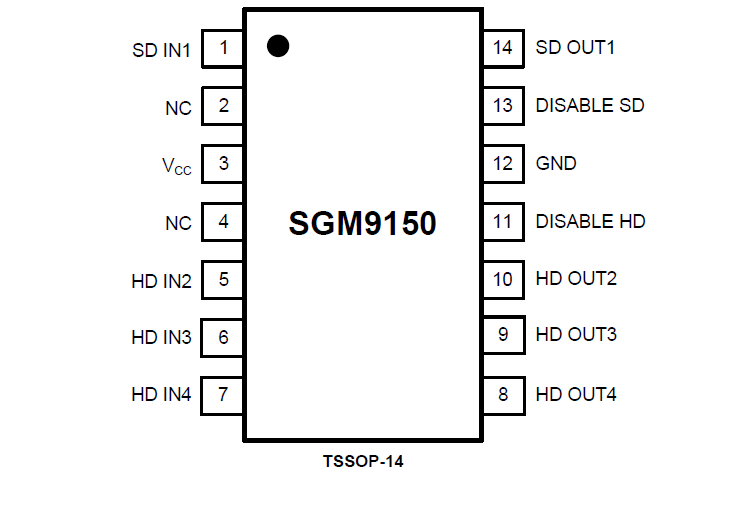

? Available in Green TSSOP-14 Package
? -40℃ to +85℃ Operating Temperature Range

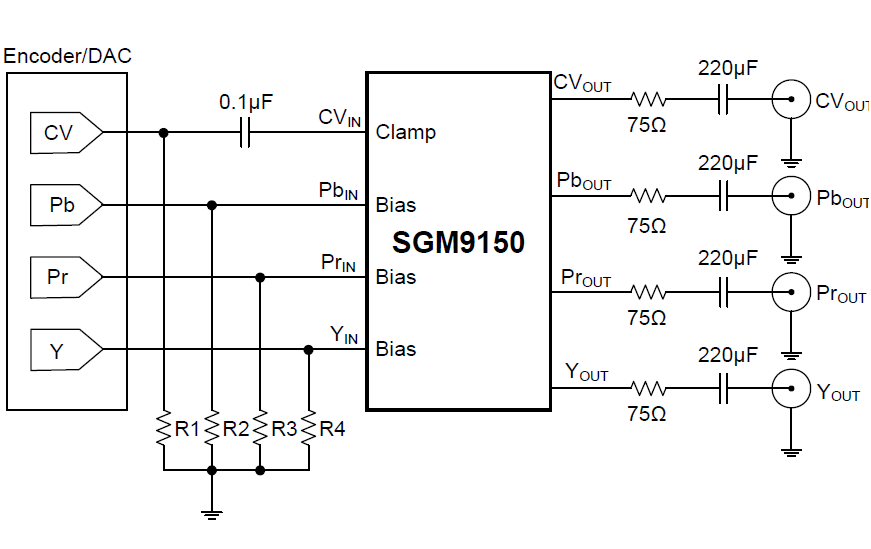

The SGM9150 video filter is intended to replace passive LC filters and drivers with an integrated device. One 6th-order channel offers Standard Definition (SD) filter while the other three channels are High Definition (HDp) filters. The SGM9150 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal clamp and bias circuitry may be used if AC-coupled inputs are required.
The outputs can be AC- or DC-coupled. DC coupling the outputs removes the need for large output coupling capacitors.
The SGM9150 is available in Green TSSOP-14 package. It operates over an ambient temperature range of -40℃ to +85℃.
