SGMOP07E.pdf
No.11249
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 135dB
? Gain-Bandwidth Product: 600kHz
? Low Noise: 8.5nV/Hz at 1kHz
? Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range: (-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.75mA (TYP)
? -40℃ to +125℃ Operating Temperature Range

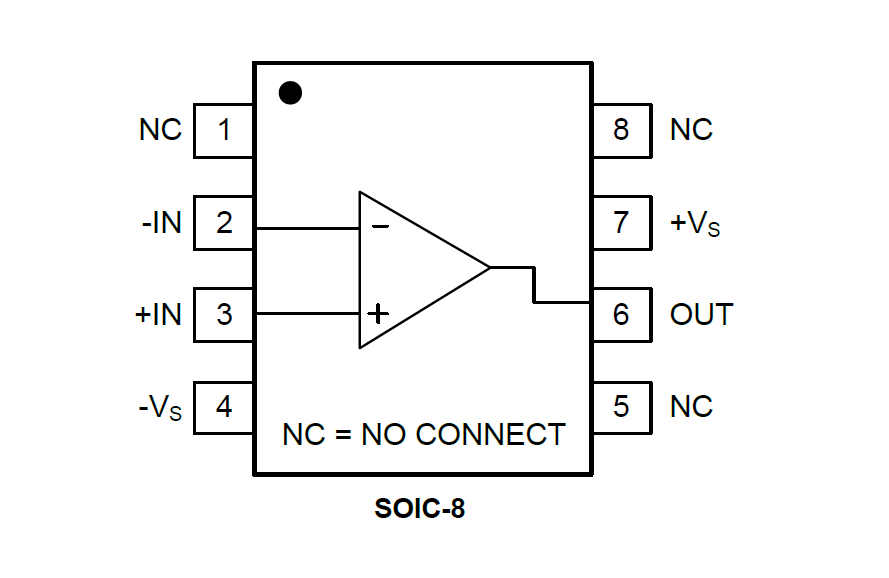

? Available in a Green SOIC-8 Package
The SGMOP07E is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The SGMOP07E has a high gain-bandwidth product of 600kHz, a slew rate of 3V/μs and a quiescent current of 0.75mA at wide power supply range.
The SGMOP07E is designed to provide optimal performance in low noise systems. It provides rail-to-rail output swing into heavy loads.
The single SGMOP07E is available in a Green SOIC-8 package. It is specified over the extended -40℃ to +125℃ temperature range.
