SGM8270-4.pdf
No.11302
? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range

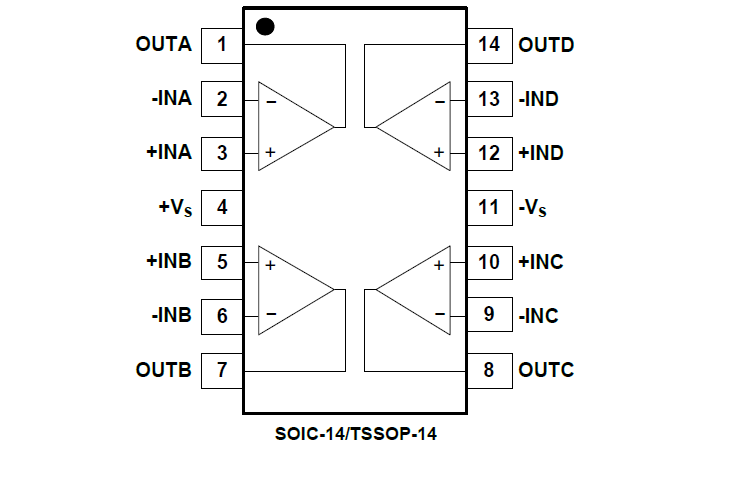

? Available in Green SOIC-14 and TSSOP-14 Packages
The SGM8270-4 is a low noise, precision, high voltage quad operational amplifier which is designed to offer a wide input common mode voltage range and output voltage swing. The device can operate from ±1.65V to ±18V dual power supplies or from 3.3V to 36V single supply.
The device features low noise, high slew rate, low input bias and offset current, and low offset voltage.
The SGM8270-4 is available in Green SOIC-14 and TSSOP-14 packages. It is specified over the extended -40℃ to +125℃ temperature range.
