Dual Low Noise,Low Dropout Voltage Regulator.
SGM2042
SGM2042.pdf
SGM2042.pdf
No.13364
FEATURES
? Wide Input Voltage Range: 1.6V to 5.5V
? Output Voltage Accuracy: ±1% at +25℃
? Output Current: 100mA per Channel
? Power Supply Rejection Ratio: 65dB (TYP) at 1kHz
? Low Output Noise: 145μVRMS from 10Hz to 100kHz
? Low Quiescent Current: 40μA (TYP) per Channel
? Fast Line and Load Transient Responses
? Over-Current Protection
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green UTDFN-1×1-4AL Package
DESCRIPTION
The SGM2042 is a dual low dropout CMOS regulator with low RDS(ON), high PSRR, low output noise and low quiescent current.
Each of the two regulators includes an error amplifier and current limit circuit. With the integrated resistor network, fixed output voltage versions can be delivered. With its low power consumption and fast line and load transient responses, the SGM2042 is well suited for low power handheld communication equipment.
The SGM2042 is available in a Green UTDFN-1×1-4AL package, and allows for small footprint and dense PCB layout. It operates over an ambient temperature range of -40℃ to +85℃.

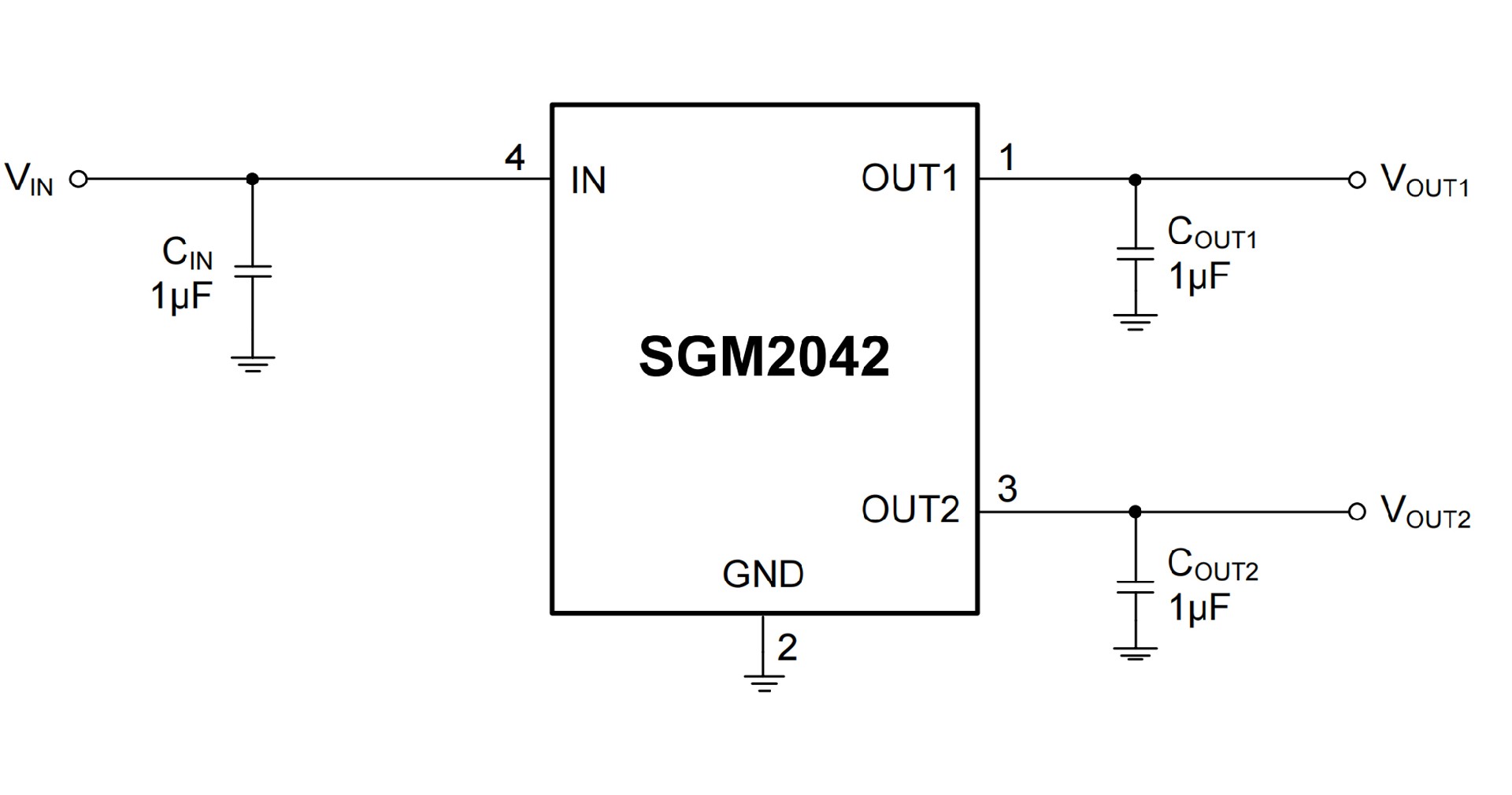

APPLICATION CIRCUIT

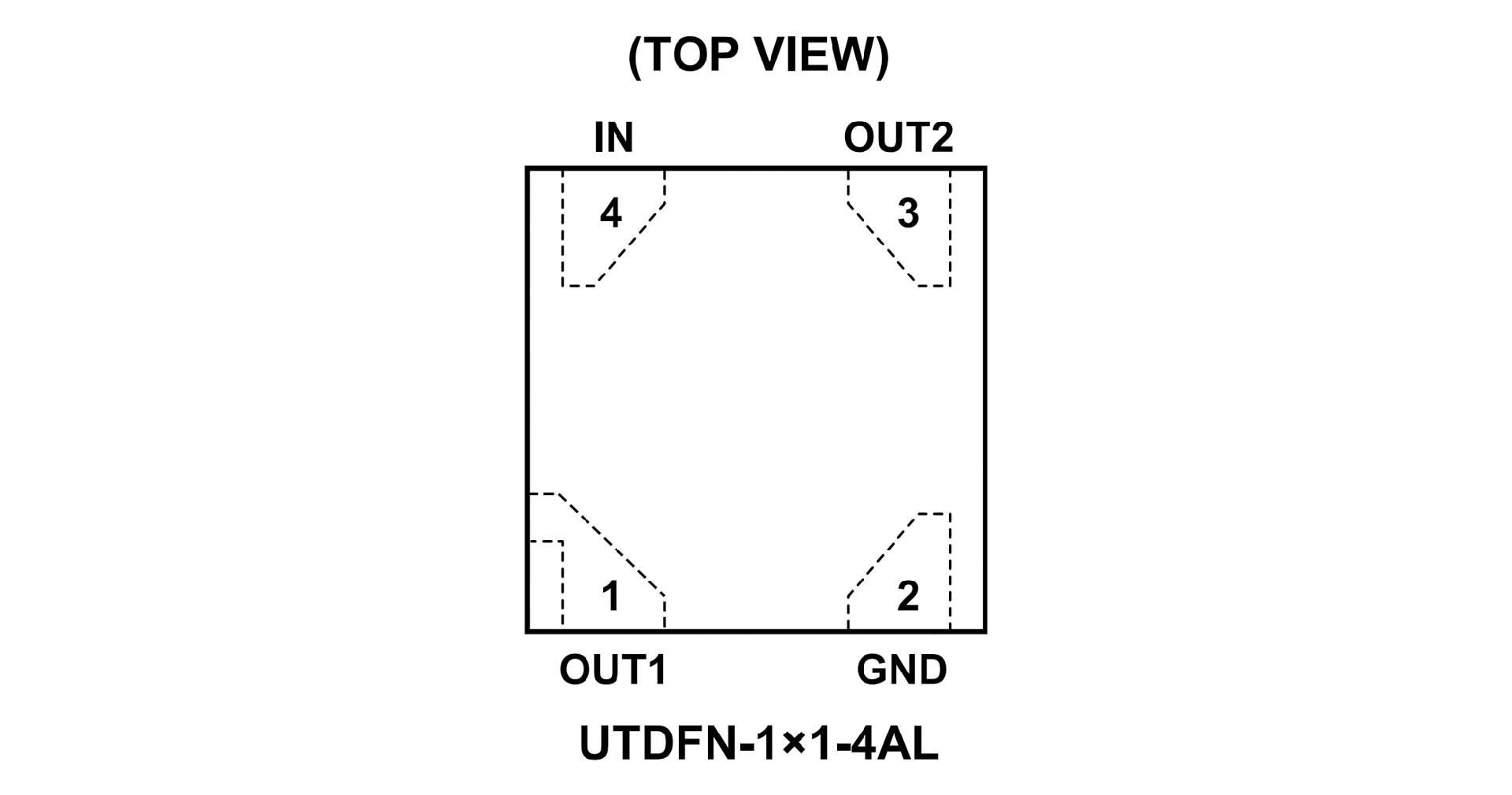

PIN CONFIGUTION
