500mA, Ultra-Low Dropout, Low Power, RF Linear Regulator.
SGM2053
SGM2053.pdf
SGM2053.pdf
No.13375
FEATURES
? Input Supply Voltage Range: 1.5V to 5.5V
? Fixed Output Voltages:
1.0V, 1.05V, 1.1V, 1.8V, 2.8V, 3.0V and 3.3V
? Adjustable Output Voltage Range: 0.8V to 5.0V
? 500mA Guaranteed Output Current
? Ultra-Low Dropout Voltage:
110mV (TYP) at VOUT = 5.0V
? High PSRR: 93dB (TYP) at 1kHz
? Turn-On Time: 70μs (TYP)
? Low Output Noise
? Fast Load Transient Response
? Thermal Shutdown Protection
? Output Current Limit
? Pull-Down Current at EN Pin
? Output Auto-Discharge in Shutdown
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package
DESCRIPTION
The SGM2053 is a low power, low noise, fast transient response and low dropout voltage linear regulator which is designed using CMOS technology. It provides 500mA output current capability. The operating input voltage range is from 1.5V to 5.5V. The adjustable output voltage range is from 0.8V to 5.0V.
Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2053 has automatic discharge function to quickly discharge VOUT in the disabled status.
The SGM2053 is available in a Green SOT-23-6 package. It operates over an operating temperature range of -40℃ to +125℃.

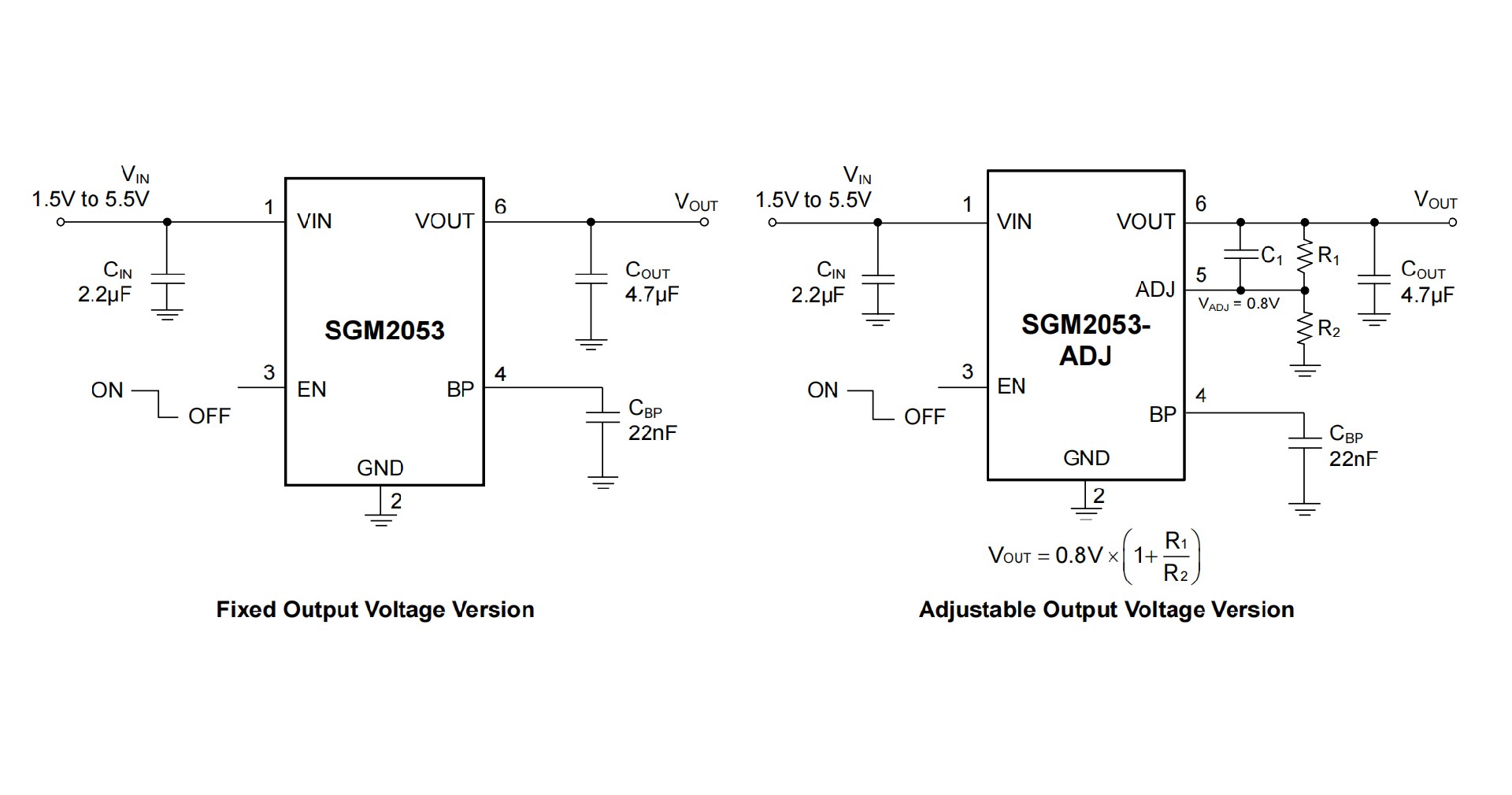

APPLICATION CIRCUIT
